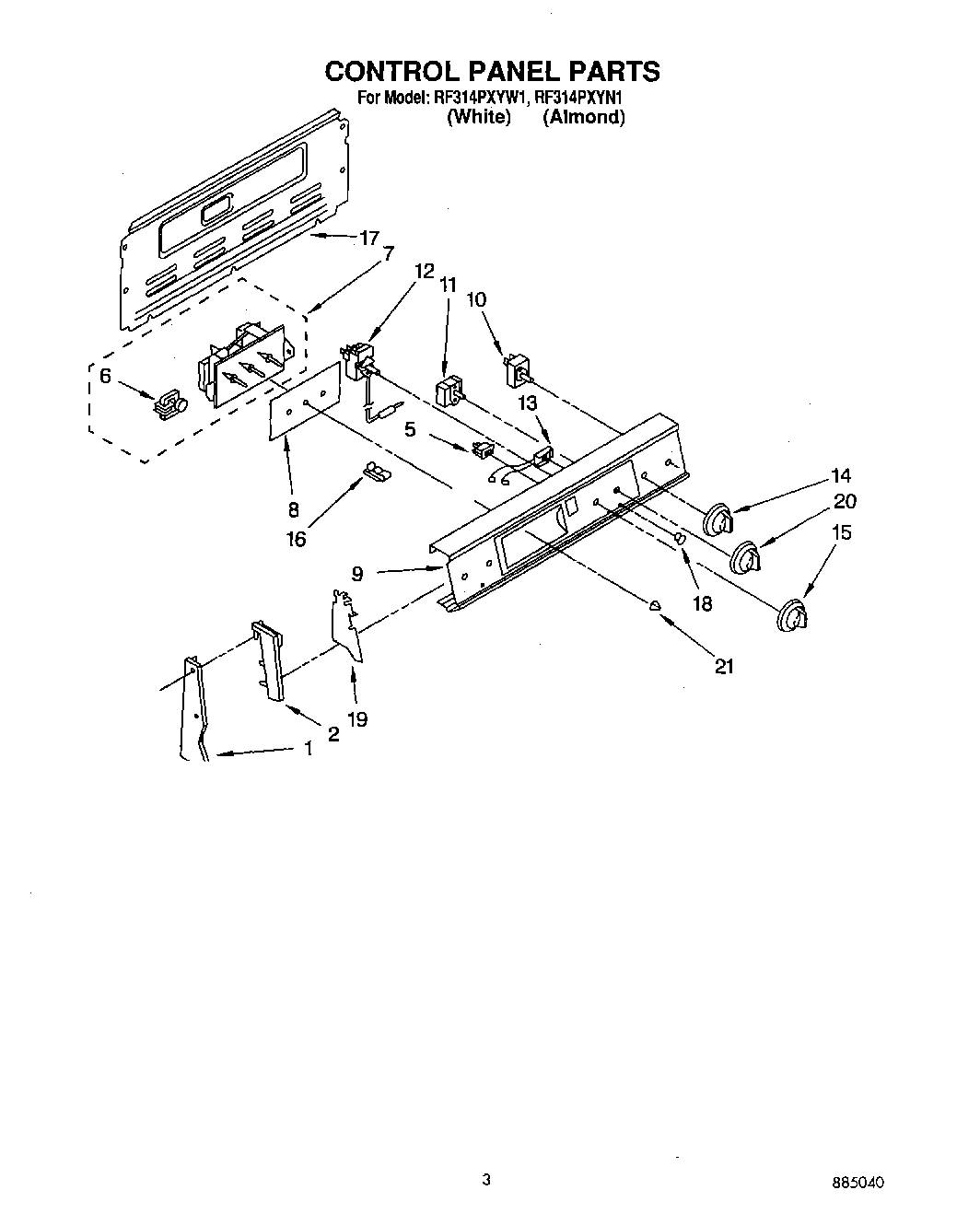

RF314PXYW1 02 – CONTROL PANELadmin2025-04-26T11:07:11+00:00RF314PXYW1 02 – CONTROL PANEL
Products
| Position | Product |
|---|
| 1 | End Trim L.H. |
| 1 | End Trim R.H. |
| 2 | Screw, |
| 2 | End Cap, R.H. (White/Almond/Gold) |
| 2 | End Cap, R.H. (White/Almond/Gold) |
| 5 | WP4314961 Whirlpool Lite Switch |
| 6 | Motor, Timer |
| 7 | Timer, Control |
| 8 | Glass, Timer |
| 9 | Washer |
| 9 | Panel, Control (White/Almond Mdl.) |
| 10 | SWITCH-INF |
| 10 | WP3148952 Whirlpool Oven Infinite Switch |
| 10 | WP486579 Whirlpool Air Conditioner Screw |
| 11 | Switch, Selector (4 Position) |
| 12 | WP313808 Whirlpool Screw |
| 12 | Thermostat, Oven |
| 13 | Indicator Light (1) |
| 13 | Light, Indicator (Includes No. 12) (Surface Unit On) |
| 13 | Light, Indicator (250V) |
| 14 | Knob, (4) Infinite Switch (White/Almond/Gold) |
| 15 | Knob, Thermostat |
| 16 | Clip, Tube |
| 17 | SCREW |
| 17 | Harness-Conduit Asm. |
| 18 | Lens, Amber |
| 19 | WP965173 Whirlpool Dishwasher Screw |
| 19 | Shield (2) |
| 20 | Knob, Selector |
| 21 | WP3169181 Whirlpool Knob |
