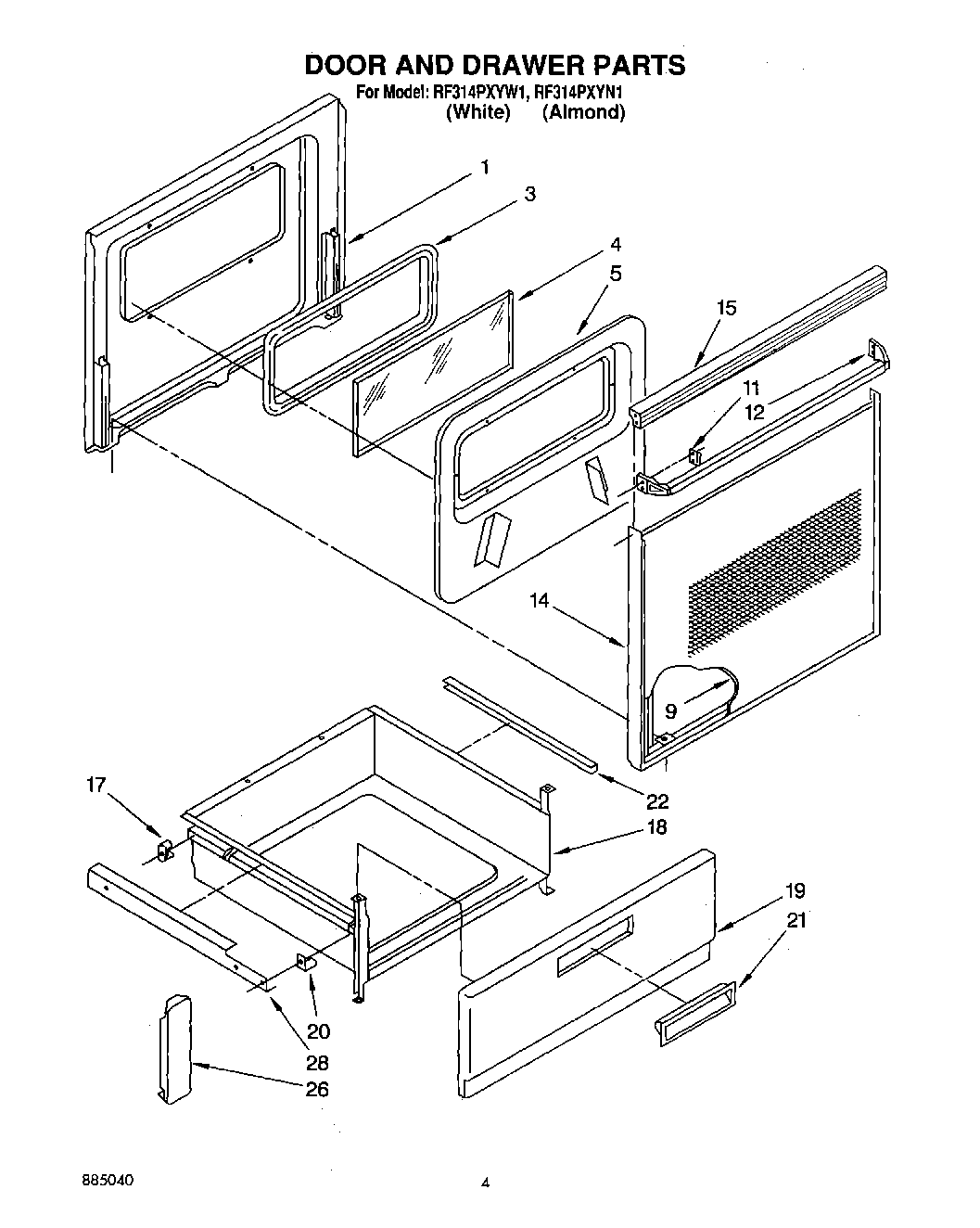

RF314PXYW1 03 – DOOR AND DRAWERadmin2025-04-26T11:07:56+00:00RF314PXYW1 03 – DOOR AND DRAWER
Products
| Position | Product |
|---|
| 1 | Liner, Door |
| 3 | Seal, Door |
| 4 | Glass, Clear |
| 5 | Screw |
| 5 | Retainer, Insulation |
| 9 | Glass, Panel (Black Model) |
| 11 | Clip, Mtg (2) |
| 12 | Handle, Oven Door |
| 14 | Frame, Door |
| 14 | WP355515 Whirlpool Screw |
| 15 | Top, Door (Black Model) |
| 15 | Back Splash (Screw (4) 10AB x 1/2``) |
| 17 | WP308685 Whirlpool Microwave Screw |
| 17 | Glide, Rear (2) |
| 18 | Drawer, Utility |
| 19 | Panel, Drawer (Almond) |
| 19 | Panel, Drawer (White) |
| 20 | Glide, Front (2) |
| 20 | WP488627 Whirlpool Refrigerator Screw |
| 21 | Handle, Snap-In (White) |
| 21 | Handle, Snap-In (Almond) |
| 22 | Protector, Drawer (2) |
| 26 | Bracket, Mounting (2) |
| 28 | Rail R.H. (Includes Illus. 3) |
| 28 | Rail L.H. (Includes Illus. 3) |
| 28 | Screw, 10A x 1/2 (2) (Black) |
