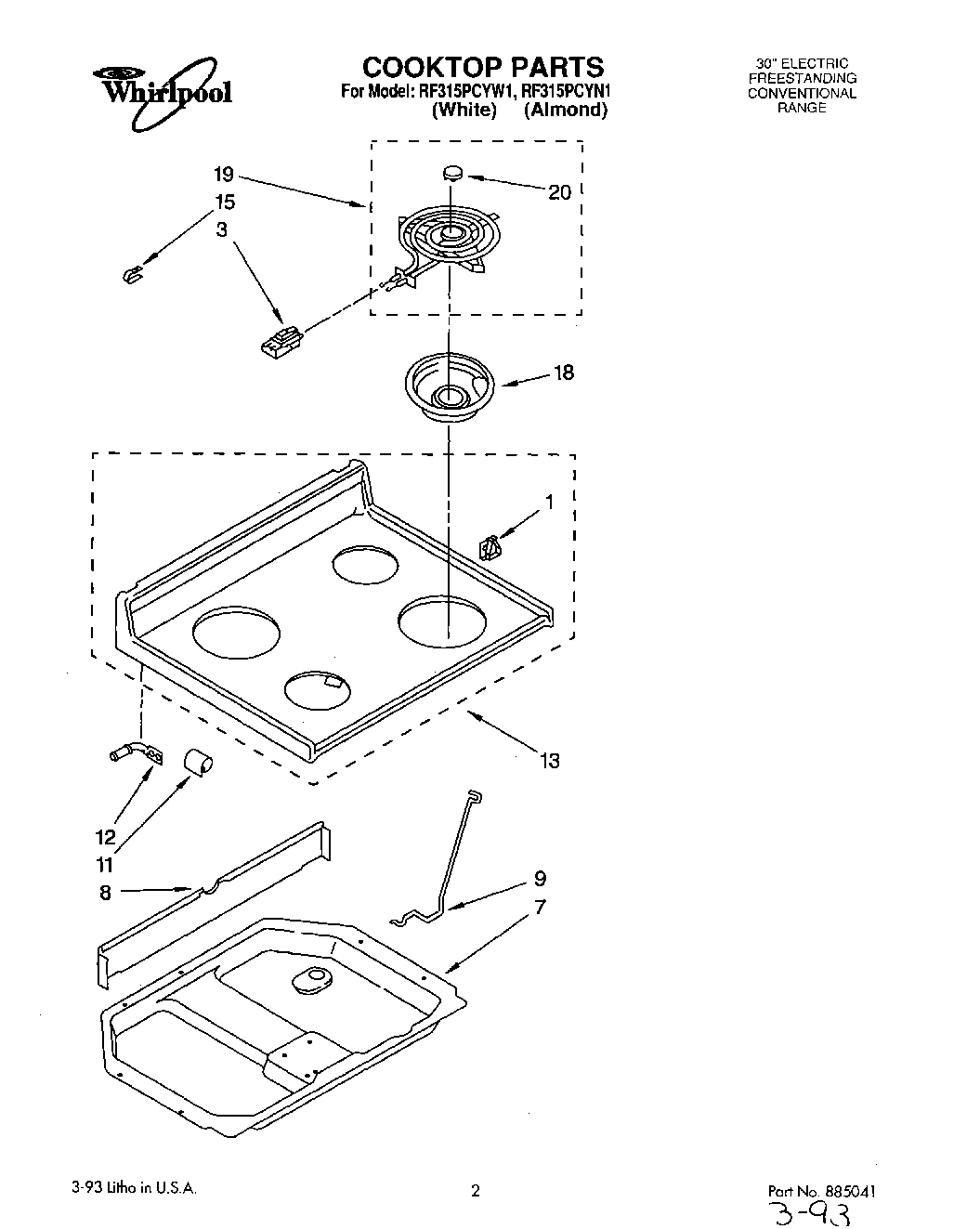

RF315PCYN1 01 – COOKTOP, LIT/OPTIONAL

RF315PCYN1 01 – COOKTOP, LIT/OPTIONAL

Written by

in

RF315PCYN1 01 – COOKTOP, LIT/OPTIONAL

Products

PositionProduct
Repair Parts List
Instructions, Installation
Use & Care Guide
Wiring Diagram
1WP487887 Whirlpool Refrigerator Screw
1Nut (4)
1814103 Whirlpool Clip
3WP313808 Whirlpool Screw
3WP4332752 Whirlpool Clip
7Box, Burner
7WP3390631 Whirlpool Screw
8Shield, Wiring
9Rod, Cooktop
11Bracket, Cooktop (2)
12Pin, Cooktop (2)
13Cooktop (Almond)
13Cooktop (White)
15WP308605 Whirlpool Refrigerator Clamp
15SCREW
18WPW10290353 Whirlpool Drip Bowl 6" ClimaTek
18WPW10290350 Whirlpool Stove Drip Bowl
19WP660532 Whirlpool Oven Surface Element
19WP660533 Whirlpool Oven 8" Surface Element
20Medallion (4)
