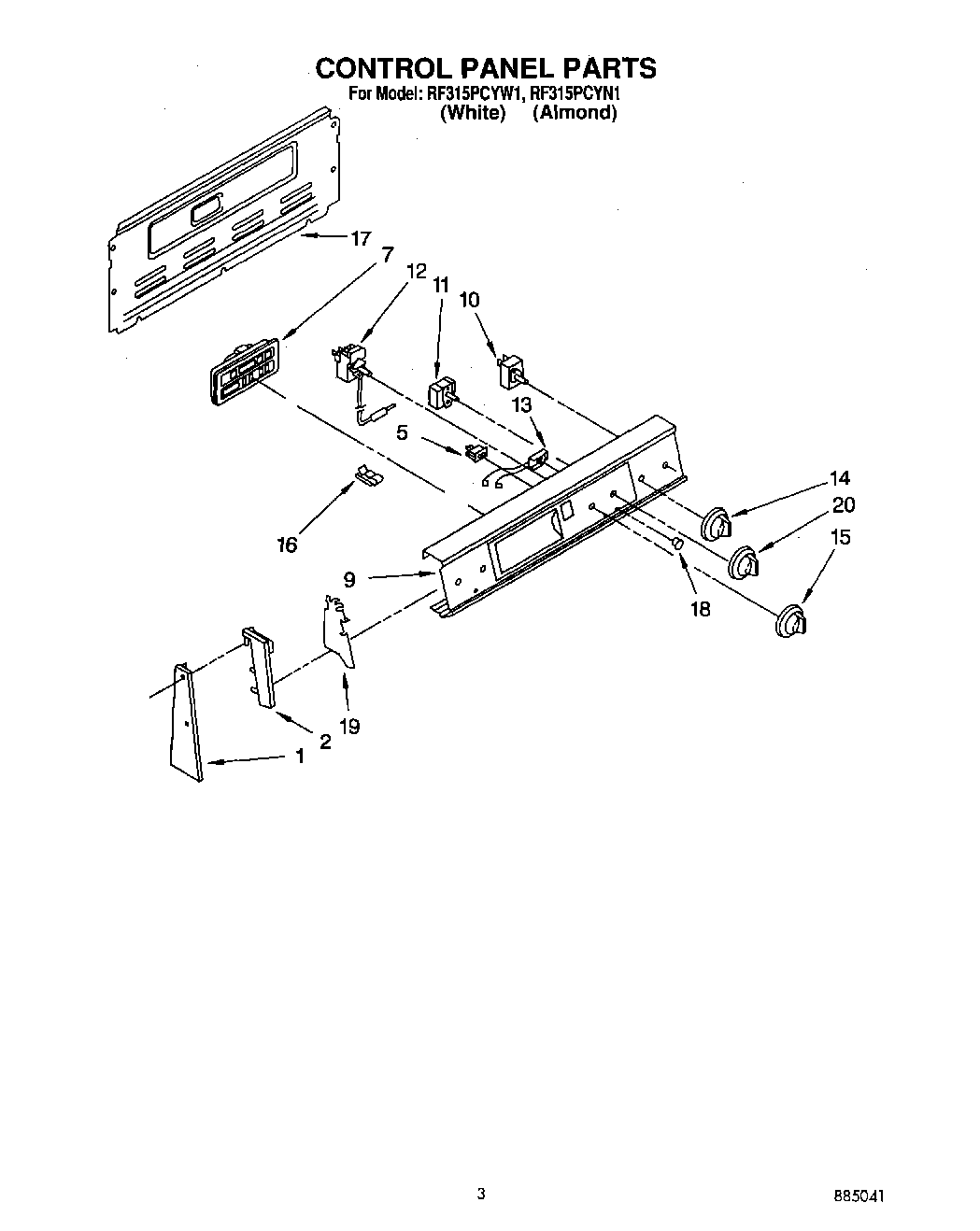

RF315PCYN1 02 – CONTROL PANEL

RF315PCYN1 02 – CONTROL PANEL

Written by

in

RF315PCYN1 02 – CONTROL PANEL

Products

PositionProduct
1WP3390631 Whirlpool Screw
1Screw 10-32×1“
1Screw 10-32×7/16“
2End Cap R.H.
2End Cap L.H.
2Screw,
5Switch, Rocker
7Timer, ERC Control
9Washer
9Panel, Control
10WP3149400 Whirlpool Oven Infinite Switch
10WP3149404 Whirlpool Oven Surface Element Switch
10WP486579 Whirlpool Air Conditioner Screw
11Switch, Selector (4 Position)
12WP313808 Whirlpool Screw
12Thermostat, Oven
12Thermostat, Oven (Alt.)
12Thermostat, Oven (Alt.)
13Light, Indicator (Includes No. 12) (Surface Unit On)
13Light, Indicator (250V)
14Knob, (4) Infinite Switch (White/Almond/Gold)
15Knob, Thermostat
16Clip, Tube
17Harness-Conduit Asm.
17SCREW
18Lens, Amber
19Shield (2)
19WP965173 Whirlpool Dishwasher Screw
20Knob, Selector
