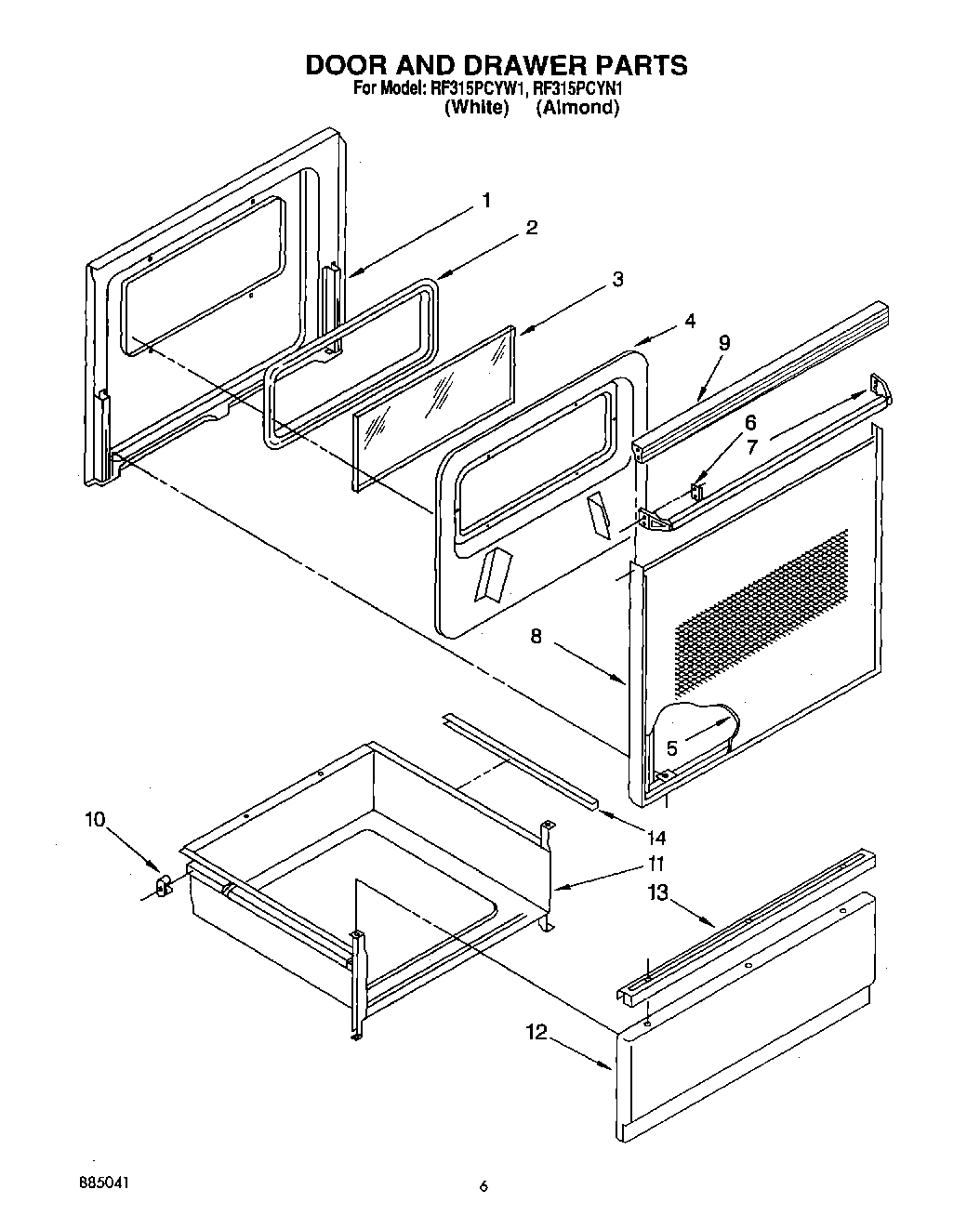

RF315PCYN1 04 – DOOR AND DRAWER

RF315PCYN1 04 – DOOR AND DRAWER

Written by

in

RF315PCYN1 04 – DOOR AND DRAWER

Products

PositionProduct
1Liner, Door
2Seal, Door
3Glass, Clear
4Screw
4Retainer, Insulation
5Glass, Panel (Almond)
5Glass, Panel (White)
6Clip, Mtg (2)
7Handle, Oven Door
8Frame, Door
8Screw, 10A x 1/2 (2) (Black)
9WP355515 Whirlpool Screw
9Top, Door (Black Model)
10WP308685 Whirlpool Microwave Screw
10Glide, Rear (2)
11Drawer, Utility
12Panel Drawer (White)
12Panel, Drawer (Almond)
13WP488627 Whirlpool Refrigerator Screw
13Handle, Drawer
14Protector, Drawer (2)
