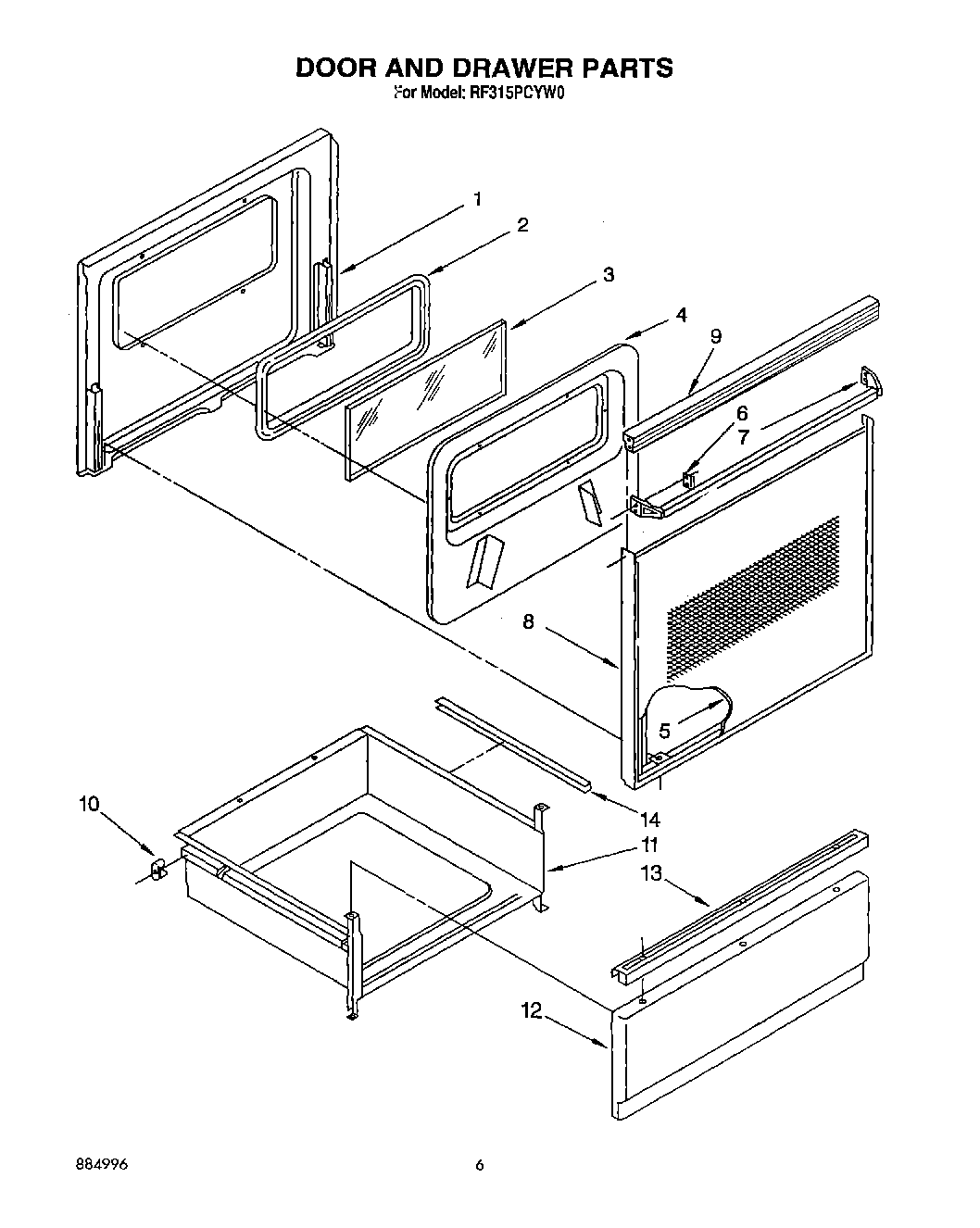

RF315PCYW0 05 – DOOR AND DRAWER

Products

Position	Product
1	Liner, Door
2	Seal, Door
3	Glass, Inner
4	Screw
4	Retainer, Insulation
5	Glass, Panel (Almond)
5	Glass, Panel (White)
6	Clip, Mtg (2)
7	Handle, Oven Door
8	WP355515 Whirlpool Screw
8	Frame, Door
9	Back Splash (Screw (4) 10AB x 1/2“)
9	Top, Door (Black Model)
10	Glide, Rear (2)
11	Drawer, Utility
12	WP488787 Whirlpool Refrigerator Screw
12	Panel Drawer (White)
12	Panel, Drawer (Almond)
13	WP488627 Whirlpool Refrigerator Screw
13	Handle, Drawer
14	Protector, Drawer (2)
