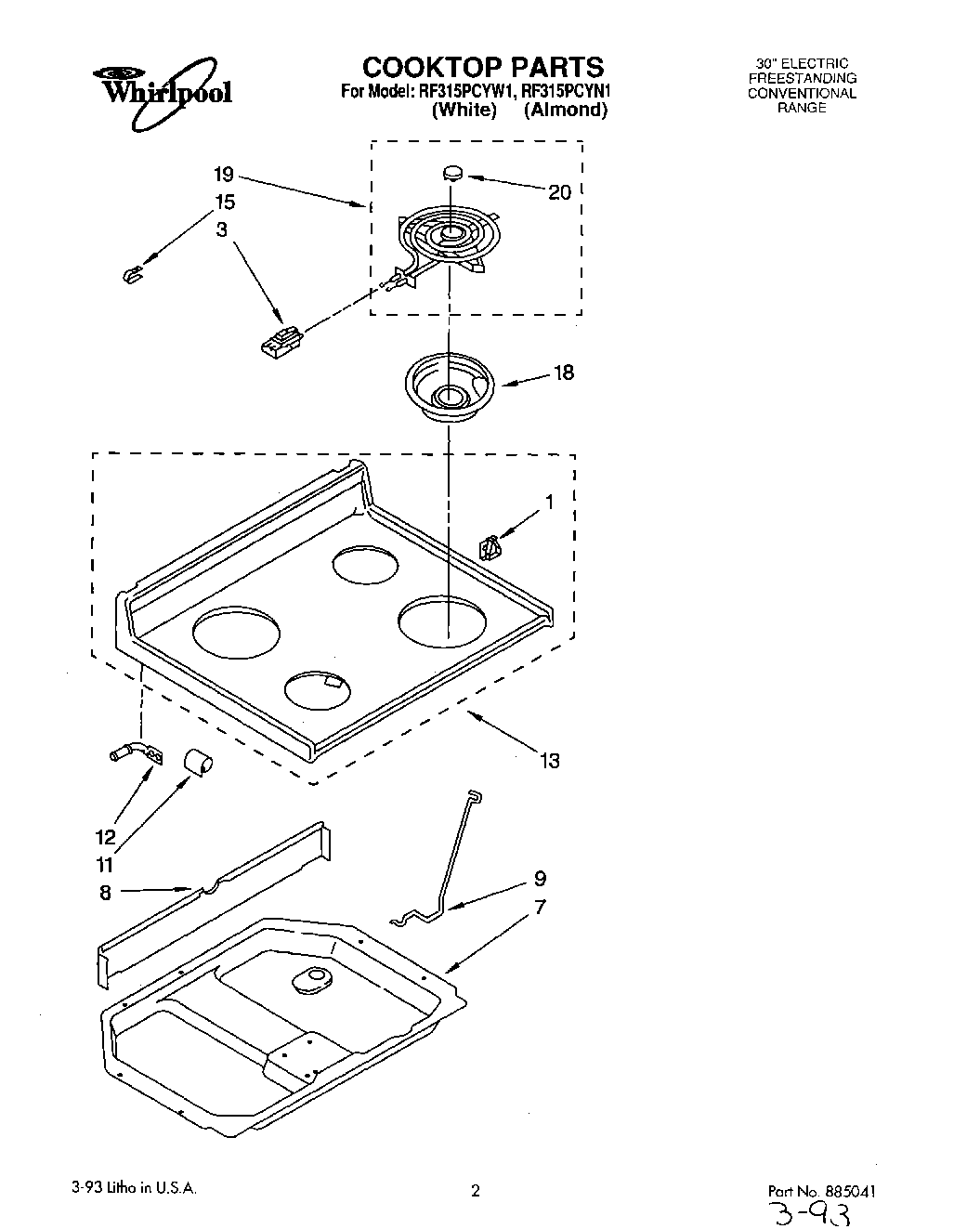

RF315PCYW1 01 – COOKTOP, LIT/OPTIONAL

Products

Position	Product
	Repair Parts List
	Instructions, Installation
	Use & Care Guide
	Wiring Diagram
1	WP487887 Whirlpool Refrigerator Screw
1	Nut (4)
1	814103 Whirlpool Clip
3	WP313808 Whirlpool Screw
3	WP4332752 Whirlpool Clip
7	Box, Burner
7	WP3390631 Whirlpool Screw
8	Shield, Wiring
9	Rod, Cooktop
11	Bracket, Cooktop (2)
12	Pin, Cooktop (2)
13	Cooktop (Almond)
13	Cooktop (White)
15	WP308605 Whirlpool Refrigerator Clamp
15	SCREW
18	WPW10290353 Whirlpool Drip Bowl 6" ClimaTek
18	WPW10290350 Whirlpool Stove Drip Bowl
19	WP660532 Whirlpool Oven Surface Element
19	WP660533 Whirlpool Oven 8" Surface Element
20	Medallion (4)
