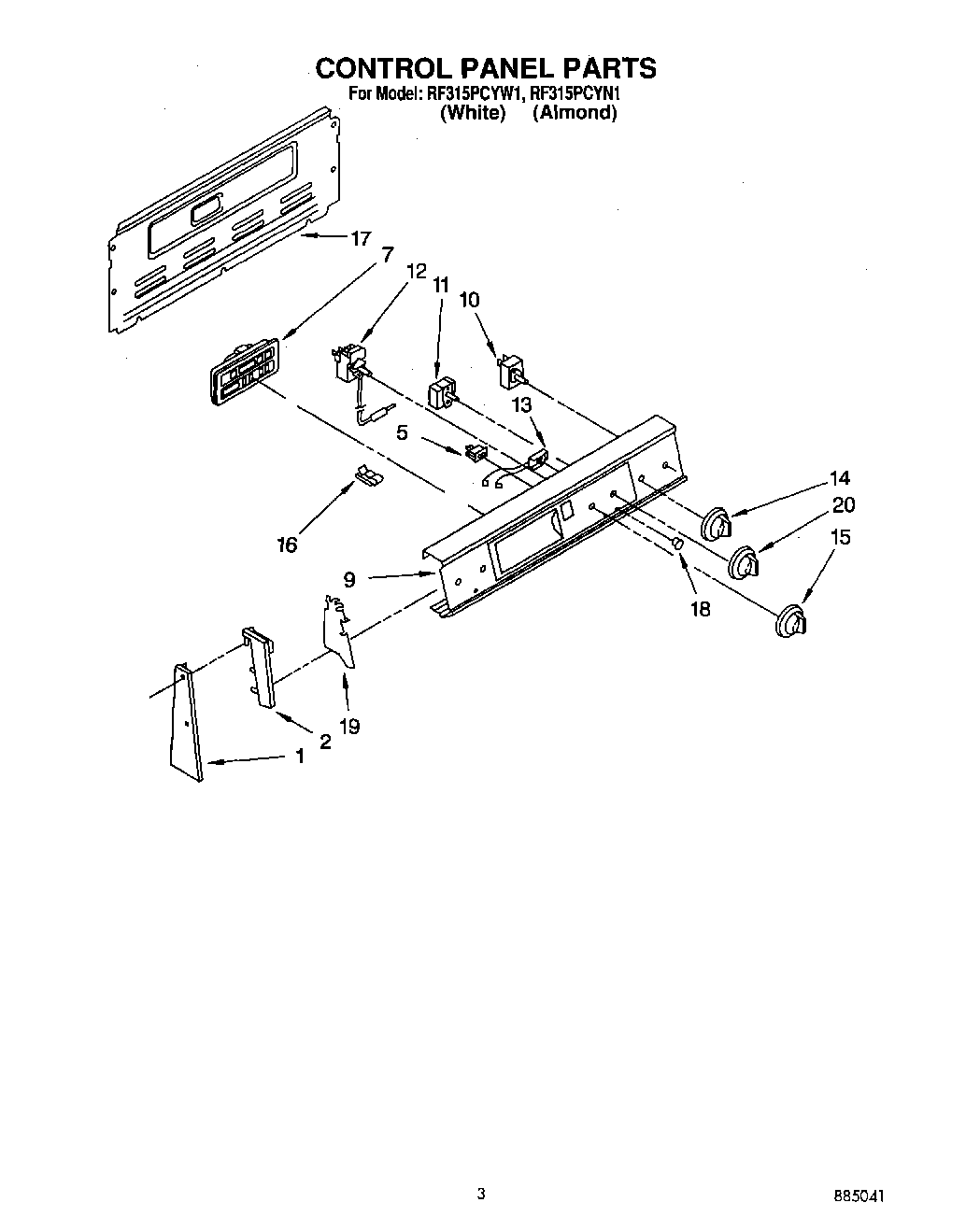

RF315PCYW1 02 – CONTROL PANEL

Products

Position	Product
1	WP3390631 Whirlpool Screw
1	Screw 10-32x1``
1	Screw 10-32x7/16``
2	End Cap R.H.
2	End Cap L.H.
2	Screw,
5	Switch, Rocker
7	Timer, ERC Control
9	Washer
9	Panel, Control
10	WP3149400 Whirlpool Oven Infinite Switch
10	WP3149404 Whirlpool Oven Surface Element Switch
10	WP486579 Whirlpool Air Conditioner Screw
11	Switch, Selector (4 Position)
12	WP313808 Whirlpool Screw
12	Thermostat, Oven
12	Thermostat, Oven (Alt.)
12	Thermostat, Oven (Alt.)
13	Light, Indicator (Includes No. 12) (Surface Unit On)
13	Light, Indicator (250V)
14	Knob, (4) Infinite Switch (White/Almond/Gold)
15	Knob, Thermostat
16	Clip, Tube
17	Harness-Conduit Asm.
17	SCREW
18	Lens, Amber
19	Shield (2)
19	WP965173 Whirlpool Dishwasher Screw
20	Knob, Selector
