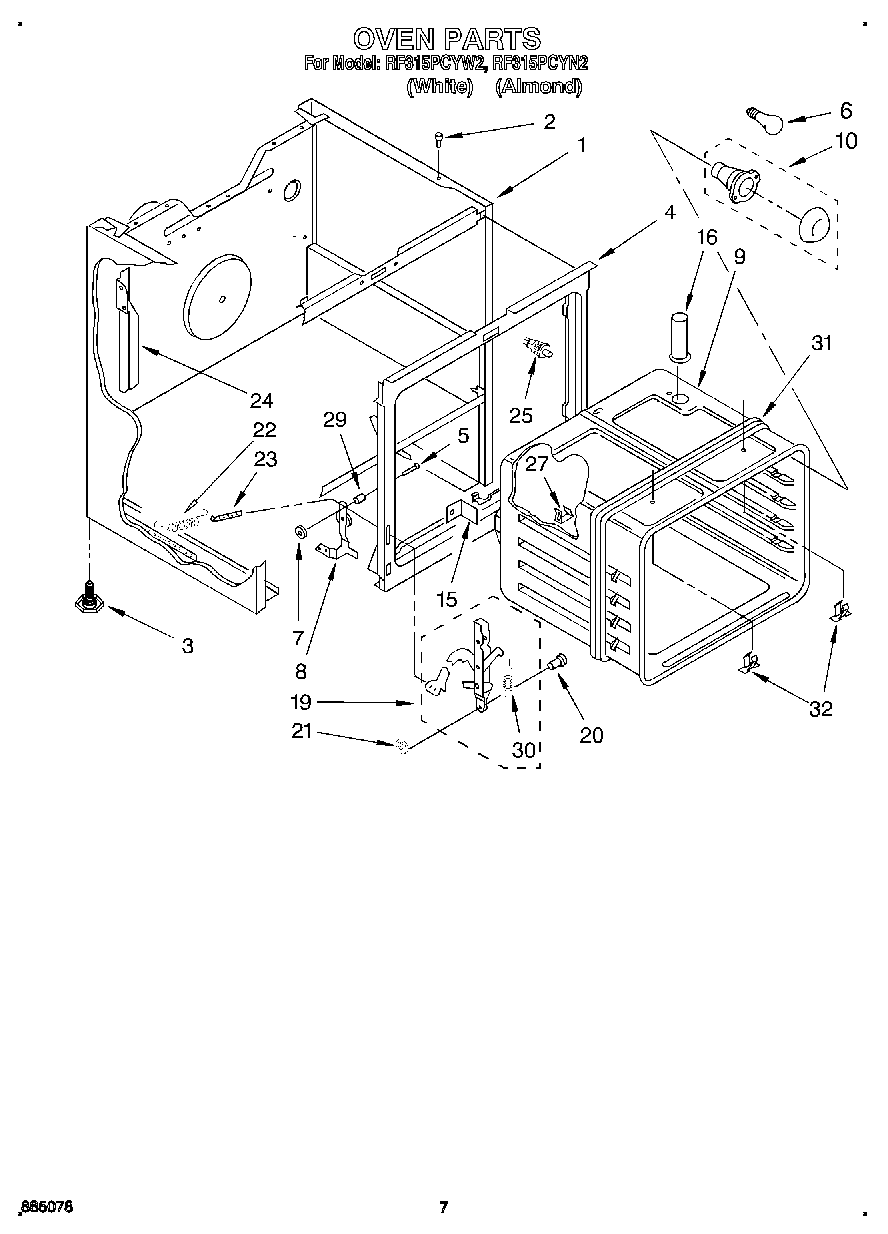

RF315PCYW2 05 – OVEN

Products

Position	Product
1	Main Chassis (White)
1	Main Chassis (Almond)
2	238614 Whirlpool Bumper Hinge
3	WPW10058460 Whirlpool Appliance Levelling Leg
4	Frame, Front
5	Pin, Hinge Ear (2)
6	RANGE ONLY 40W 120V APPL BULB
7	Pushnut (2)
8	Hinge, R.H.
8	Hinge, L.H.
9	Screw (3)
9	Screw (Top)
9	Oven (30“ Pyro)
10	W11594027 Whirlpool Range Oven Light Socket
15	Bracket, Oven (Mounting)
16	9755804 Whirlpool Oven Vent Tube
16	Screw, 10A x 1/2 (2) (Black)
19	Channel, Arm (2)
20	WP307986 Whirlpool Hinge Pin
21	Retainer Ring (2)
22	Spring, Oven Door (2)
23	WP308125 Whirlpool Microwave Range/Cooktop Anchor
24	SCREW
24	Wire Cover-Controls (Right)
24	Wire Cover
25	Switch, Door
27	98005642 Whirlpool Clip
29	Snubber, Door (2)
30	Spring, Door Stop
31	Heat Seal
32	WPL 3169107
