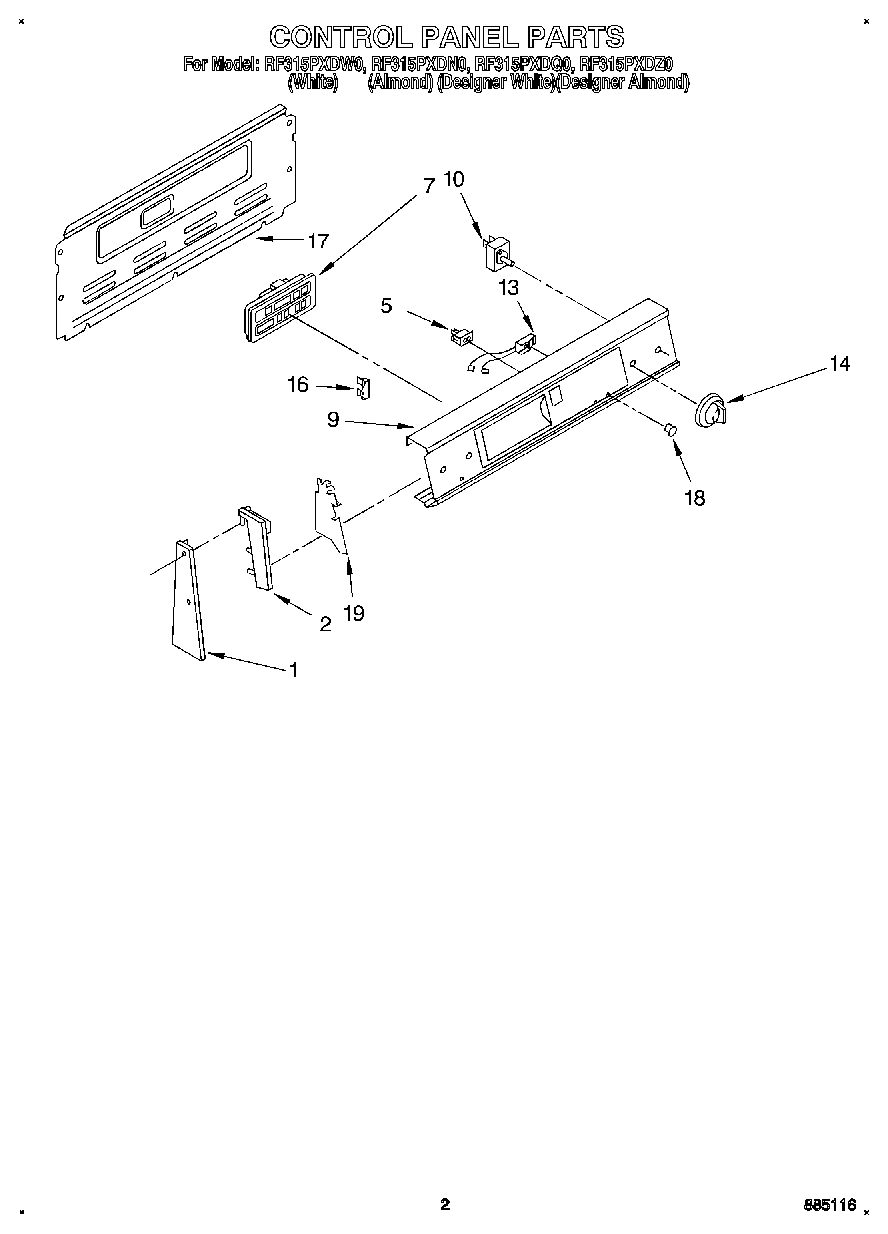

RF315PXDN0 02 – CONTROL PANEL
Written by
in
RF315PXDN0 02 – CONTROL PANEL
Products
Position
Product
1
End Trim (LH, Black)
1
End Trim R.H. (Designer Almond)
1
End Trim (LH, Designer Almond)
1
End Trim (LH, Designer White)
1
End Trim R.H. (Designer White)
1
End Trim R.H. (Black)
2
End Cap, R.H. (Black)
2
End Cap L.H. (Designer White)
2
End Cap L.H. (Black)
2
End Cap R.H. (Designer Almond)
2
End Cap R.H. (Designer White)
2
End Cap L.H. (Designer Almond)
5
Switch, Rocker
5
Switch, Rocker (White)
5
Switch, Rocker (Designer Almond)
7
Timer, ERC Control (Black)
7
Timer, ERC Control (Designer White)
7
Timer, ERC Control (Designer Almond)
9
Panel, Control (Screw, 8-18 x 5/8 (4))
9
Panel, Control (Designer White)
9
Panel, Control (Designer Almond)
9
Panel, Control (Black)
10
SWITCH-INF
10
Screw, 8-32 x 3/16 (2)
10
WP3149404 Whirlpool Oven Surface Element Switch
13
Indicator Light (Surface Unit On)
14
WP3196231 Whirlpool Knob
14
WPL 3188723
14
WP3196232 Whirlpool Knob
16
Screw (2)
16
Fuse, Thermal
17
Rear Cover Contr
17
SCREW
18
Lens, Amber
19
Shield (2)
19
WP965173 Whirlpool Dishwasher Screw
←
