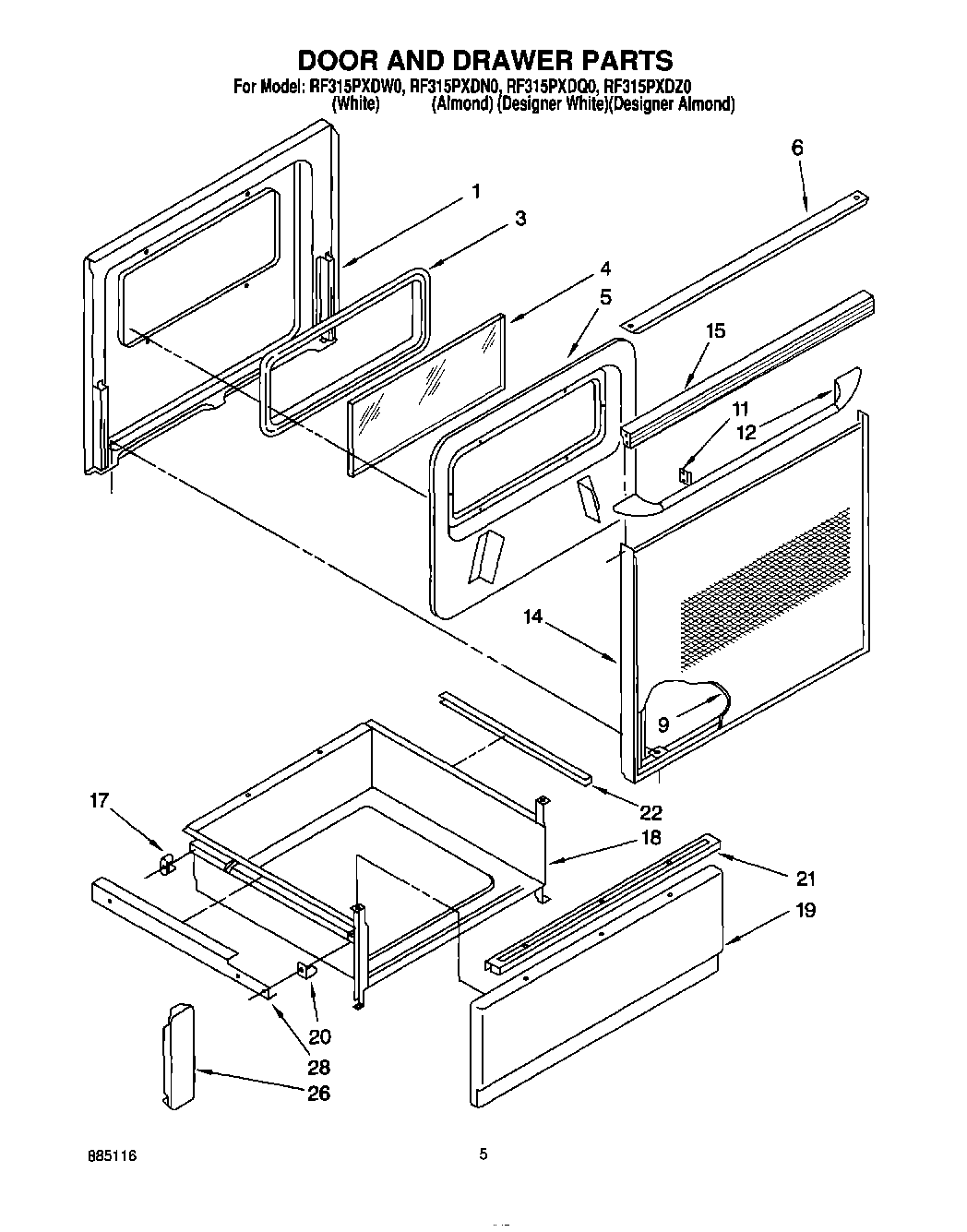

RF315PXDN0 04 – DOOR AND DRAWER

Products

Position	Product
1	Liner, Door
3	Seal, Door
4	Glass, Clear
5	Screw
5	Retainer, Insulation
6	Cap, Top (Designer White)
6	Cap, Top (Designer Almond)
6	Top, Door Frame (Screw (2))
6	Top, Door Frame (Screw (2))
9	Glass Panel, Outer (Black)
9	Glass Panel, Outer (Almond)
9	Glass Panel, Outer (White)
11	Clip, Mtg (2)
12	WP999367 Whirlpool Refrigerator Screw
12	Handle, Door (White)
12	Handle, Door (Black)
12	Handle, Door (Almond)
14	Frame, Door (Almond)
14	Frame, Door (White)
14	Frame, Door (Black)
14	Frame, Door (Screw (4))
14	Screw
14	Back Splash (Screw (4) 10AB x 1/2``)
14	Handle, Door (Screw)
14	Handle, Door (Screw (4))
15	Top, Door Frame (Designer White)
15	Top, Door Frame (Designer Almond)
15	Top, Door Frame (Black)
17	Glide, Rear (2)
17	WP308685 Whirlpool Microwave Screw
18	Drawer, Utility
19	Panel Drawer (White)
19	Panel Drawer (Almond)
19	WP488627 Whirlpool Refrigerator Screw
20	Glide, Front (2)
21	Handle, Drawer (Almond)
21	Handle, Drawer (White)
22	Protector, Drawer (2)
26	Bracket, Mounting (2)
28	Screw, 10A x 1/2 (2) (Black)
28	Rail R.H. (Includes Illus. 3)
28	Rail L.H. (Includes Illus. 3)
