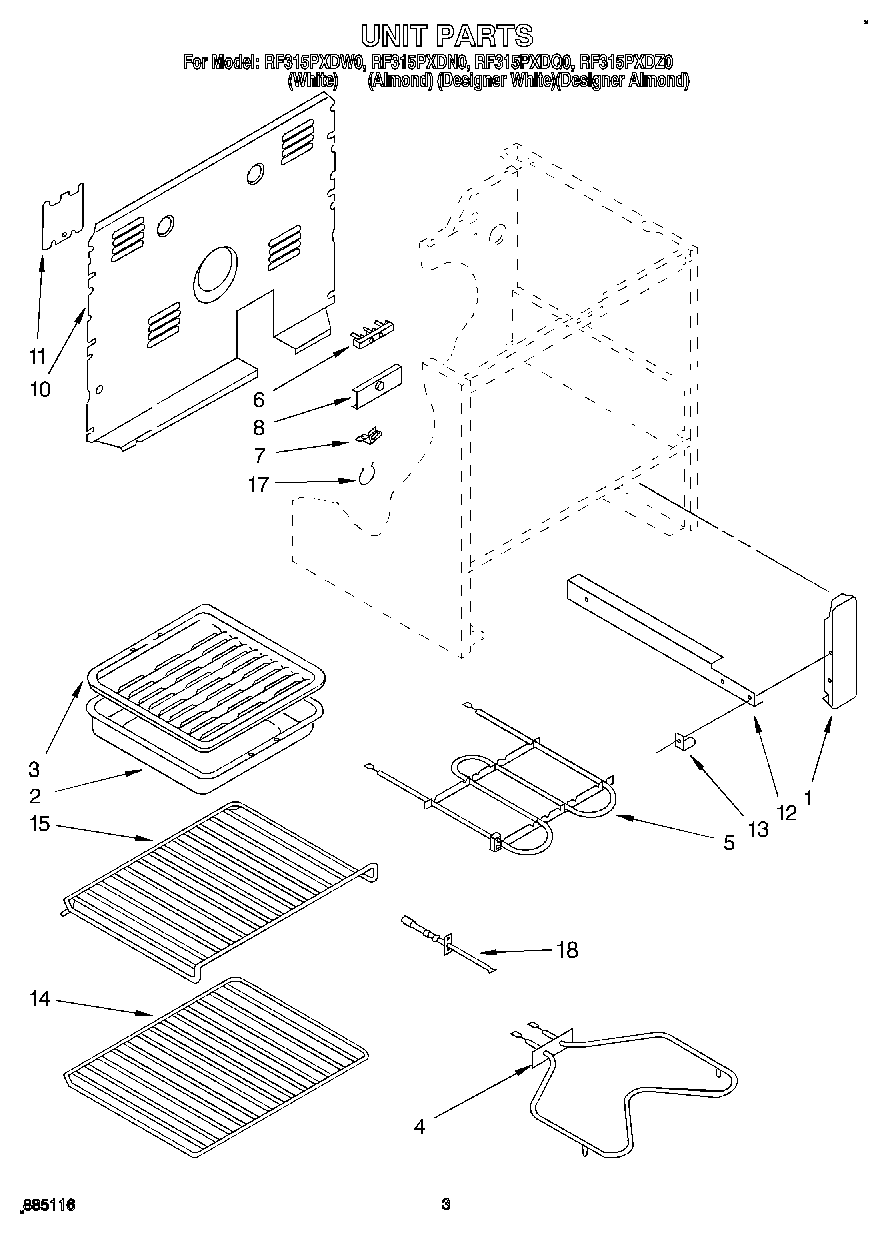

RF315PXDZ0 03 – UNIT

Products

Position	Product
1	Bracket, Mounting (2)
3	4396923 Whirlpool Broil Pan Set Gray Porcelain
4	ELMNT-BAKE
5	Screw (2)
5	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
6	Screw, (2) 10-16 x 1
6	WP8203546 Whirlpool Terminal Block
6	WP112432 Whirlpool Nut Assembly
7	Clip, Ground Wire
7	WPL 308498
8	Bracket, Service
10	Cover, Rear
11	Cover, Service
11	SCREW
12	Rail R.H. (Includes Illus. 3)
12	Rail L.H. (Includes Illus. 3)
13	Glide, Front (2)
14	WPL 308173
15	WPL 308172
17	16515 Whirlpool Clip
18	Insulation, Wrap
18	Sensor, Heat
18	Screw (2)
18	8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
