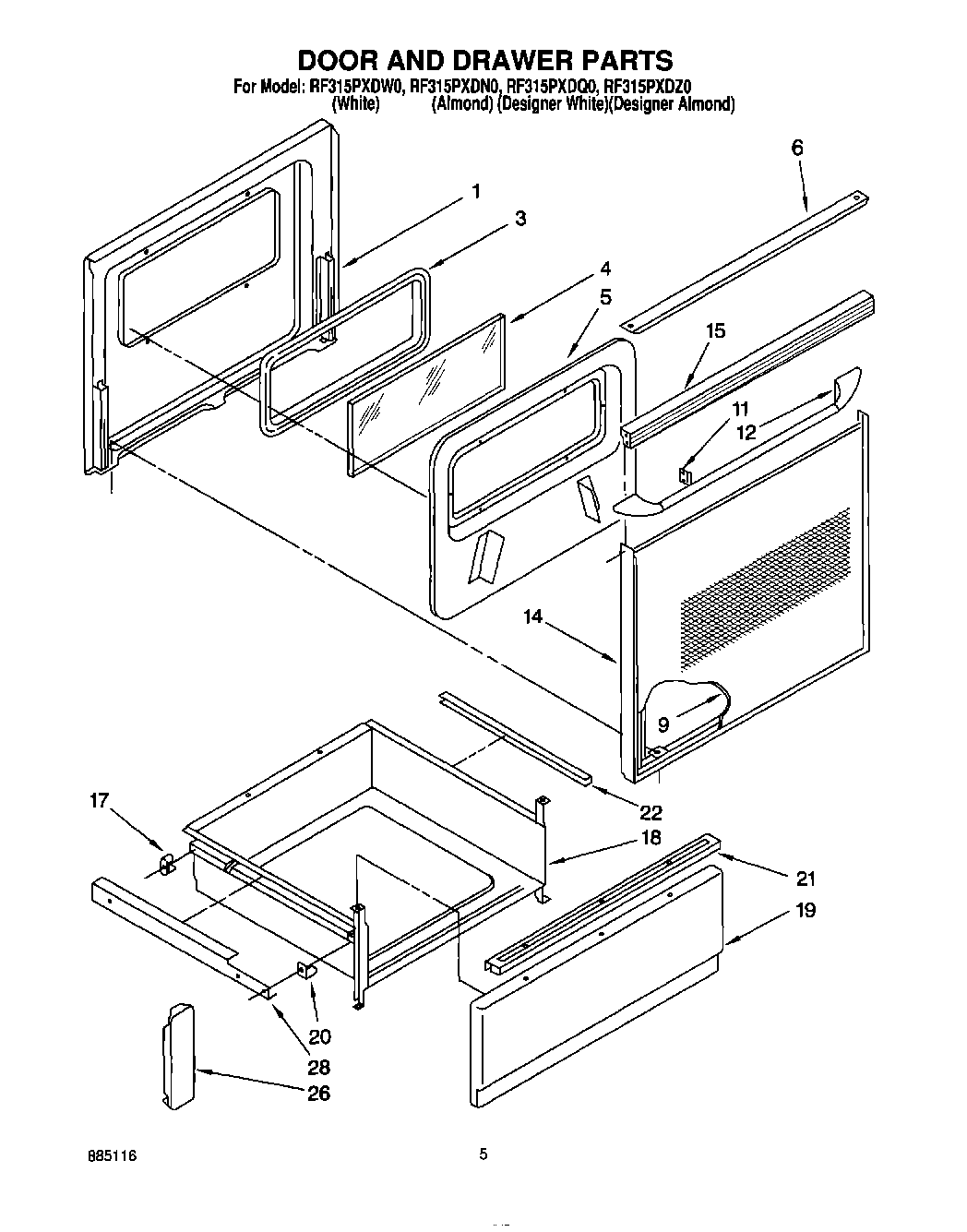

RF315PXDZ0 04 – DOOR AND DRAWER

Products

PositionProduct
1Liner, Door
3Seal, Door
4Glass, Clear
5Screw
5Retainer, Insulation
6Cap, Top (Designer White)
6Cap, Top (Designer Almond)
6Top, Door Frame (Screw (2))
6Top, Door Frame (Screw (2))
9Glass Panel, Outer (Black)
9Glass Panel, Outer (Almond)
9Glass Panel, Outer (White)
11Clip, Mtg (2)
12WP999367 Whirlpool Refrigerator Screw
12Handle, Door (White)
12Handle, Door (Black)
12Handle, Door (Almond)
14Frame, Door (Almond)
14Frame, Door (White)
14Frame, Door (Black)
14Frame, Door (Screw (4))
14Screw
14Back Splash (Screw (4) 10AB x 1/2“)
14Handle, Door (Screw)
14Handle, Door (Screw (4))
15Top, Door Frame (Designer White)
15Top, Door Frame (Designer Almond)
15Top, Door Frame (Black)
17Glide, Rear (2)
17WP308685 Whirlpool Microwave Screw
18Drawer, Utility
19Panel Drawer (White)
19Panel Drawer (Almond)
19WP488627 Whirlpool Refrigerator Screw
20Glide, Front (2)
21Handle, Drawer (Almond)
21Handle, Drawer (White)
22Protector, Drawer (2)
26Bracket, Mounting (2)
28Screw, 10A x 1/2 (2) (Black)
28Rail R.H. (Includes Illus. 3)
28Rail L.H. (Includes Illus. 3)
