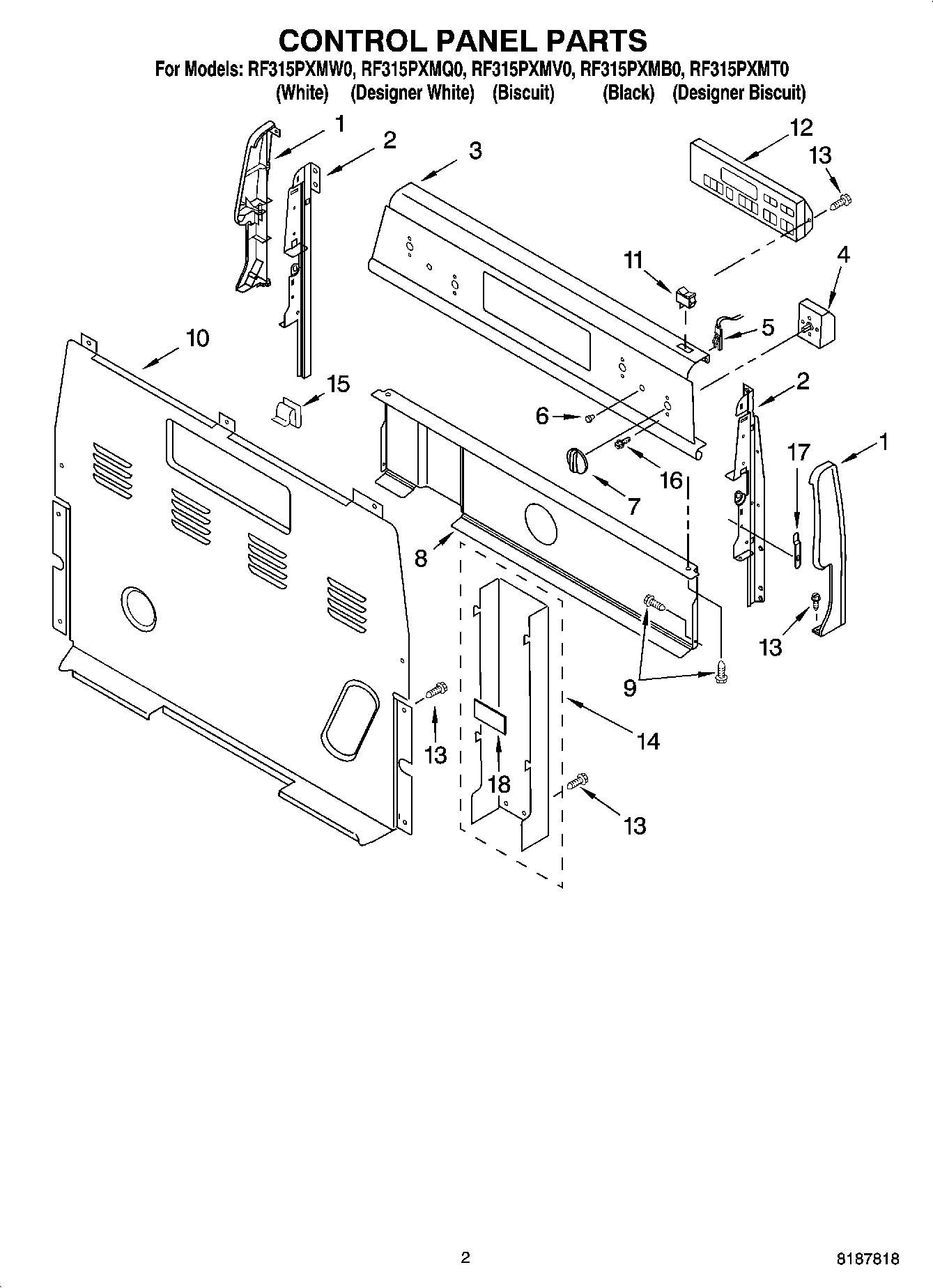

RF315PXMQ0 02 – CONTROL PANEL PARTS

RF315PXMQ0 02 – CONTROL PANEL PARTS

Written by

in

RF315PXMQ0 02 – CONTROL PANEL PARTS

Products

PositionProduct
1Endcap, Right Hand (Black)
1Endcap (White Right Hand)
1Endcap (White Left Hand)
1Endcap (Biscuit Right Hand)
1Endcap (Biscuit Left Hand)
1Endcap (Black Left Hand)
2Support, Endcap (Right Hand)
2Support, Endcap (Left Hand)
3Panel, Backguard (Black)
3Panel, Backguard (White)
3Panel, Backguard (Biscuit)
4WP3148952 Whirlpool Oven Infinite Switch
4WP3149400 Whirlpool Oven Infinite Switch
5WP8523265 Whirlpool Indicator Light
6WP3196068 Whirlpool Light Lens
7Knob, Control (4) (Biscuit)
7WP8522566 Whirlpool Knob
7WP8522565 Whirlpool Knob
8Shield, Heat
9Screw
10WP8272473 Whirlpool Rear Cover
11Switch, Rocker (Biscuit)
11WP4314961 Whirlpool Lite Switch
113149360 Whirlpool Light Switch
12Control, Range (Black)
12Control, Range (Biscuit)
12Control, Range (White)
13SCREW
14WPW10326122 Whirlpool Black Cover
15WP8273564 Whirlpool Clip
16WP3400882 Whirlpool Screw
173196200 Whirlpool Clip
18Card, Insulation
