RF315PXPB2 01 – COOKTOP PARTS

RF315PXPB2 01 – COOKTOP PARTS

Written by

in

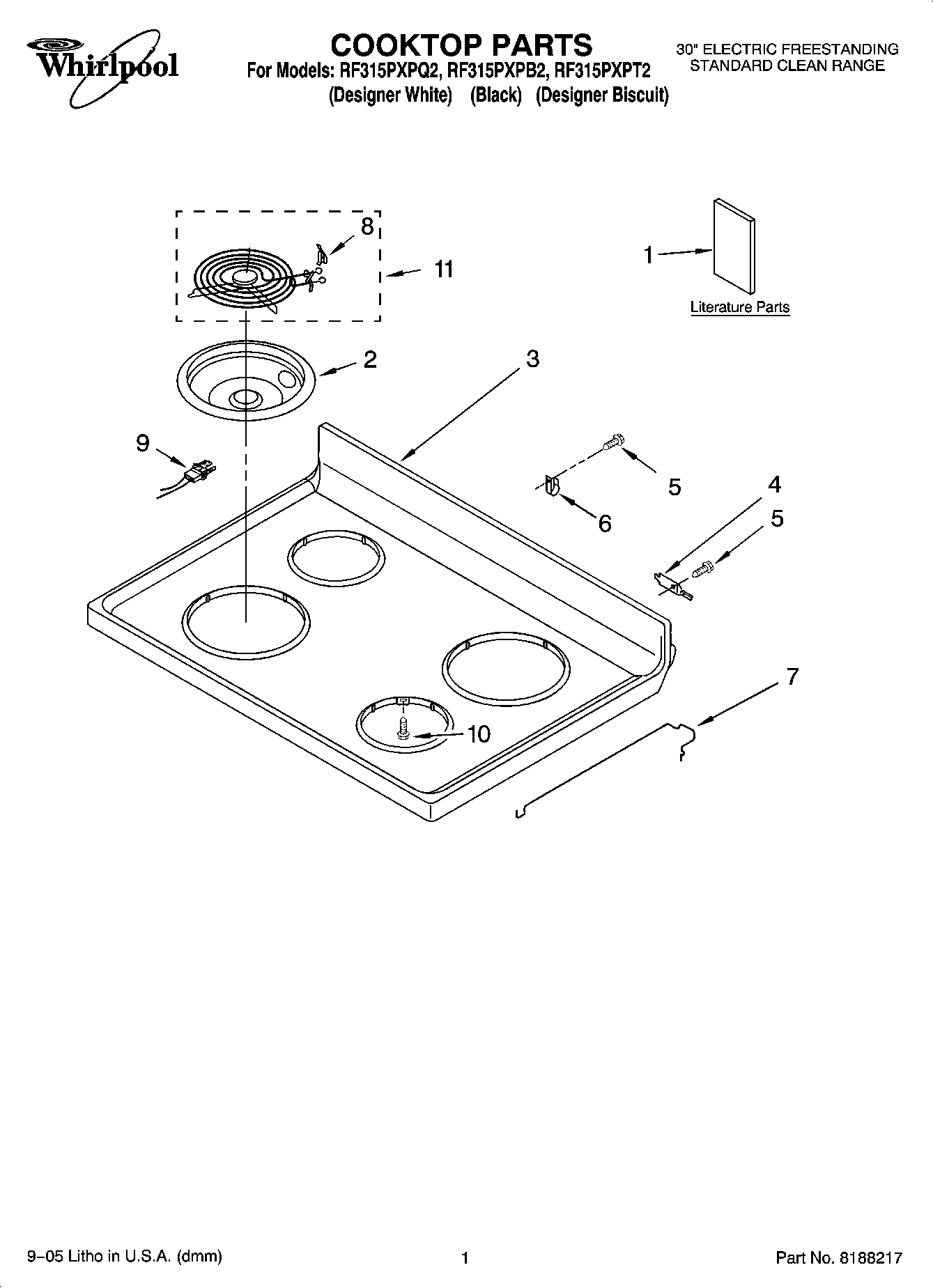

RF315PXPB2 01 – COOKTOP PARTS

Products

PositionProduct
1Anti-Tip Template (English/French)
1Tech Sheet
1Installation Instructions Anti-Tip Template
1Anti-Tip Template (English/Spanish)
1Safe Cooking Tips
1Use & Care Guide
2DRIP BOWL 8" W/HOLE CHROME
2WPW10196406 Whirlpool 6" Chrome Drip Bowl
38195534 Whirlpool Cooktop
3Cooktop (Biscuit)
38195532 Whirlpool Cooktop Power Switch
4WP3195060 Whirlpool Cooktop Pin
5SCREW
6WP308605 Whirlpool Refrigerator Clamp
7WP3195812 Whirlpool Cooktop Rod
8WP3195917 Whirlpool Clip Assembly
9814399 Whirlpool Receptacle Kit
10WP3196154 Whirlpool Screw Assembly
11WPW10259865 Whirlpool Range 8" Surface Element
11WP660532 Whirlpool Oven Surface Element
