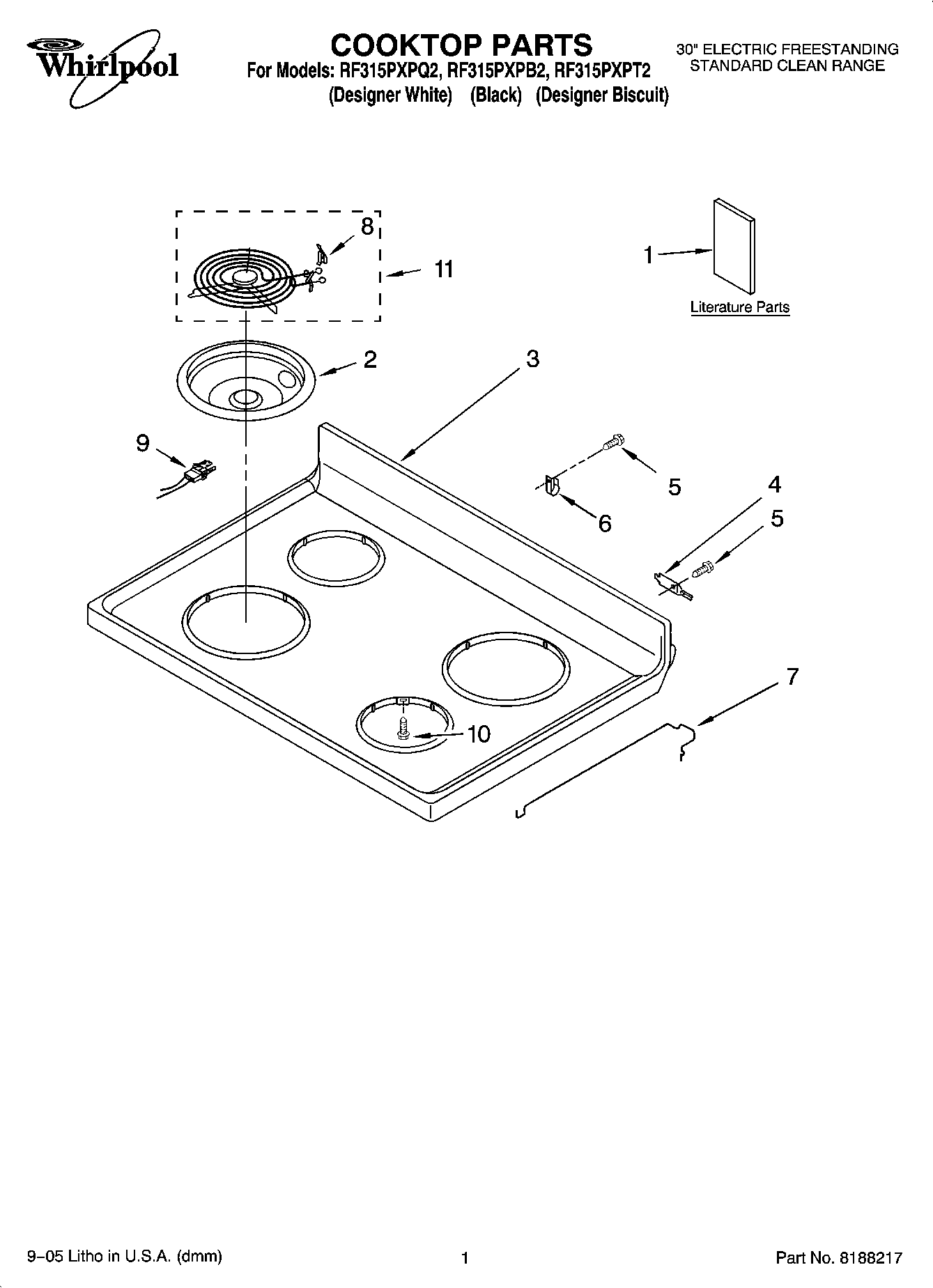

RF315PXPT2 01 – COOKTOP PARTS

Products

Position	Product
1	Anti-Tip Template (English/French)
1	Tech Sheet
1	Installation Instructions Anti-Tip Template
1	Anti-Tip Template (English/Spanish)
1	Safe Cooking Tips
1	Use & Care Guide
2	DRIP BOWL 8" W/HOLE CHROME
2	WPW10196406 Whirlpool 6" Chrome Drip Bowl
3	8195534 Whirlpool Cooktop
3	Cooktop (Biscuit)
3	8195532 Whirlpool Cooktop Power Switch
4	WP3195060 Whirlpool Cooktop Pin
5	SCREW
6	WP308605 Whirlpool Refrigerator Clamp
7	WP3195812 Whirlpool Cooktop Rod
8	WP3195917 Whirlpool Clip Assembly
9	814399 Whirlpool Receptacle Kit
10	WP3196154 Whirlpool Screw Assembly
11	WPW10259865 Whirlpool Range 8" Surface Element
11	WP660532 Whirlpool Oven Surface Element
