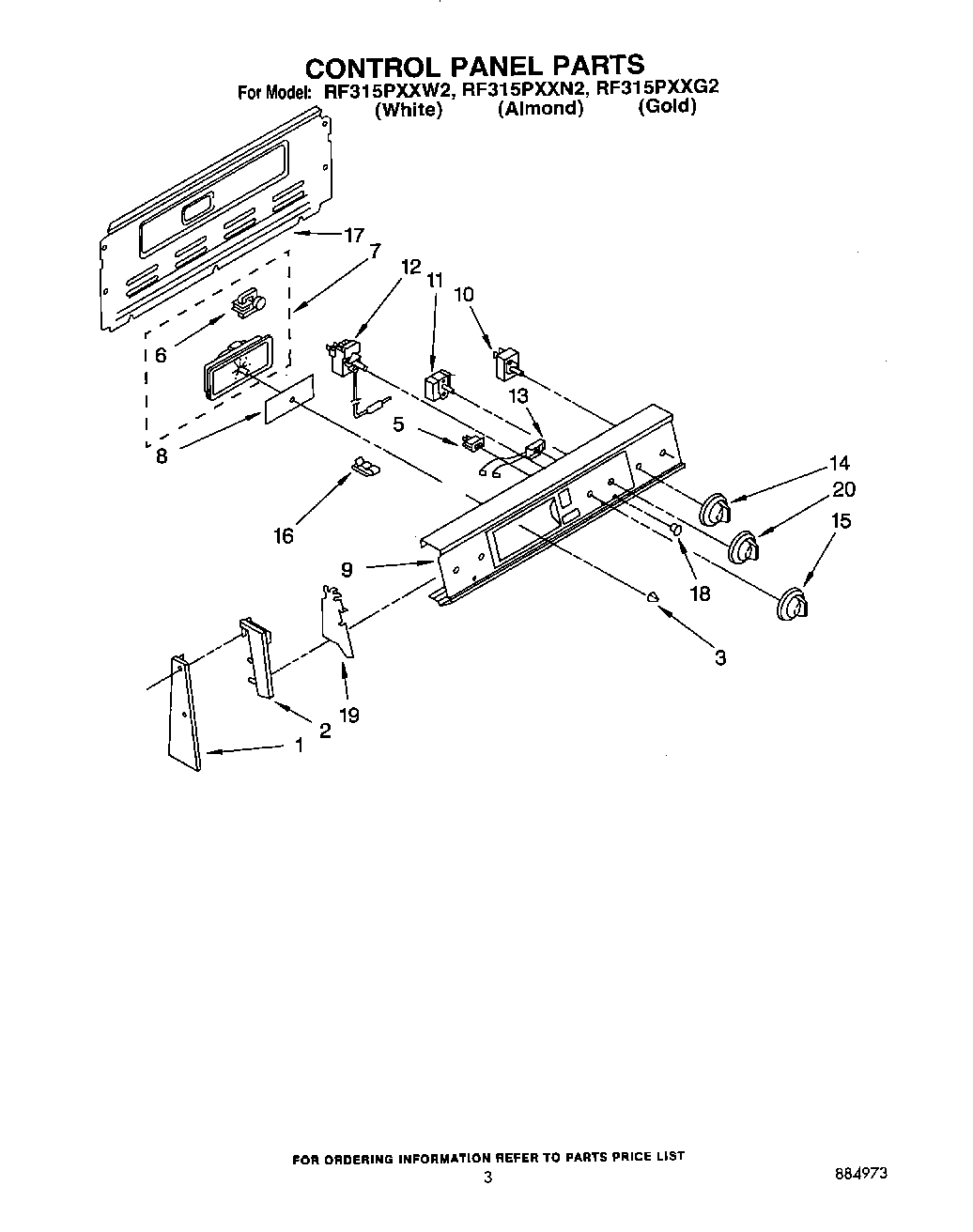

RF315PXXG2 03 – CONTROL PANEL

Products

Position	Product
1	WP3390631 Whirlpool Screw
1	Screw 10-32x7/16``
1	Screw 10-32x1``
2	End Cap L.H.
2	End Cap R.H.
2	Screw,
3	WP3169181 Whirlpool Knob
5	WP4314961 Whirlpool Lite Switch
6	Motor, Timer
7	Timer, Clock (Includes No.6)
8	Glass, Timer
9	Panel, Control
9	Washer
10	WP3148952 Whirlpool Oven Infinite Switch
10	WP486579 Whirlpool Air Conditioner Screw
10	WP3149400 Whirlpool Oven Infinite Switch
11	Switch, Selector (4 Position)
12	Thermostat, Oven (Alt.)
12	Thermostat, Oven (Alt.)
12	Thermostat, Oven
12	WP313808 Whirlpool Screw
13	Light, Indicator (250V)
13	Light, Indicator (Surface Unit On)
14	WP3149983 Whirlpool Knob
15	Knob, Temperature
16	Clip, Tube
17	SCREW
17	Harness-Conduit Asm.
18	Lens, Amber
19	Shield (2)
19	WP965173 Whirlpool Dishwasher Screw
20	Knob, Control (Selector)
