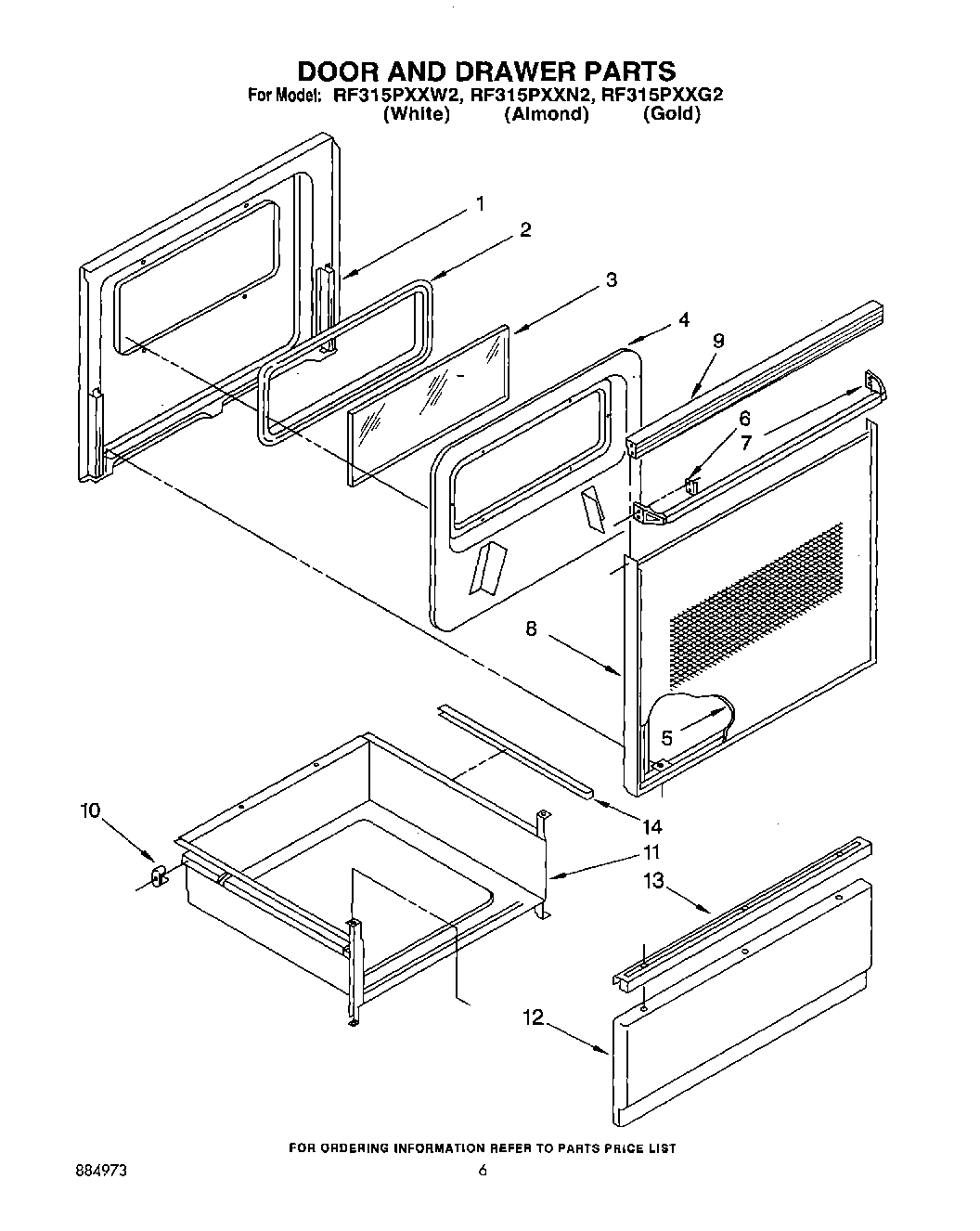

RF315PXXG2 05 – DOOR AND DRAWER

Products

Position	Product
1	Liner, Door
2	Seal, Door
3	Glass, Inner
4	Screw
4	Retainer, Insulation
5	Glass, Panel (Black Model)
6	Clip, Mtg (2)
7	Handle, Oven Door
8	Frame, Door
8	WP355515 Whirlpool Screw
9	Back Splash (Screw (4) 10AB x 1/2“)
9	Top, Door (Black Model)
10	Glide, Rear (2)
11	Drawer, Utility
12	Panel, Drawer (Almond)
12	Panel Drawer (White)
12	Panel Drawer (Harvest Gold)
13	Handle, Drawer
13	WP488627 Whirlpool Refrigerator Screw
14	Protector, Drawer (2)
