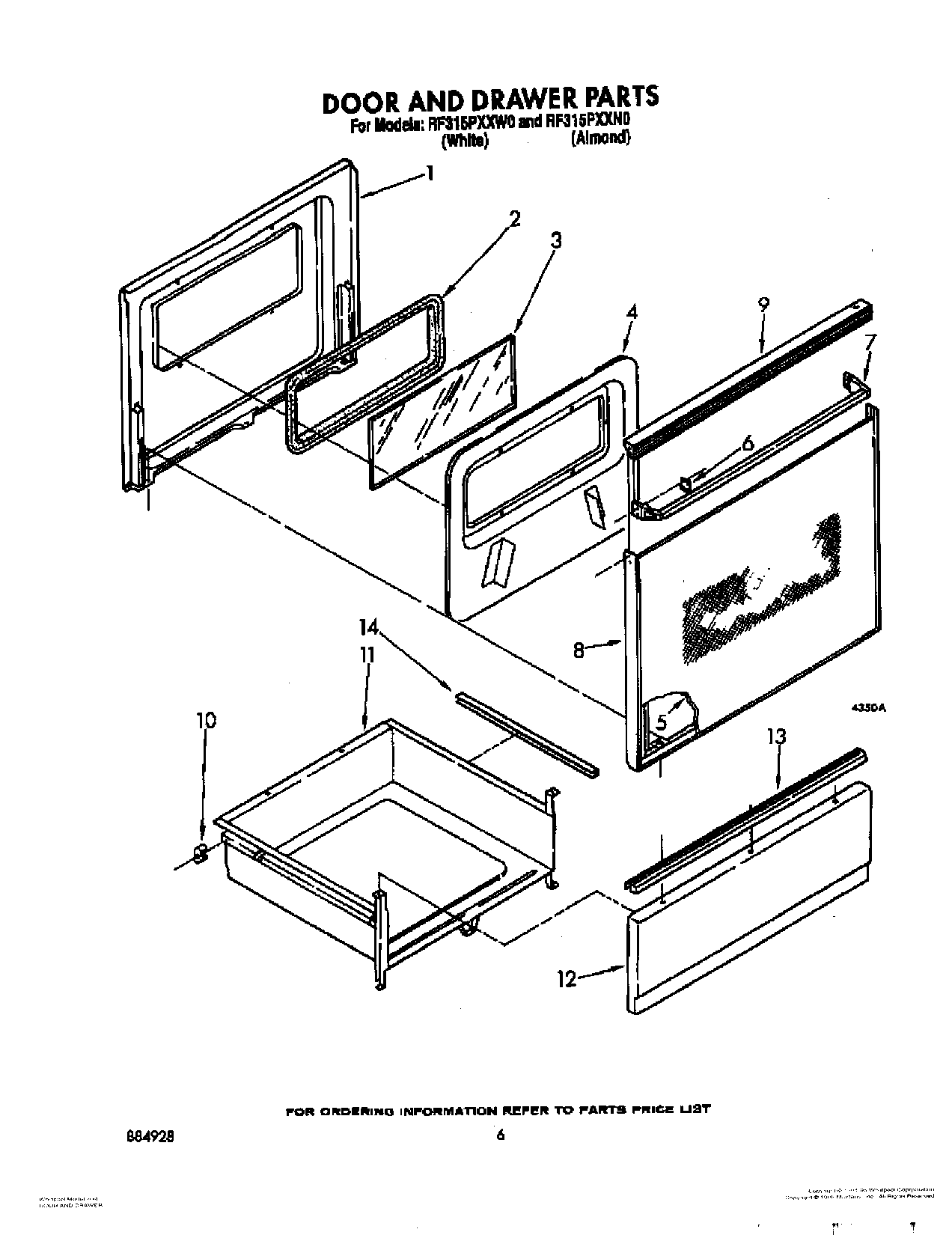

RF315PXXW0 05 – DOOR AND DRAWER

Products

Position	Product
1	Liner, Door
2	Seal, Door
3	Glass, Inner
4	Screw
4	Retainer, Insulation
5	Glass, Panel (Black Model)
6	Clip, Mtg (2)
7	Handle, Oven Door
8	WP355515 Whirlpool Screw
8	Frame, Door
9	Top, Door (Black Model)
9	Back Splash (Screw (4) 10AB x 1/2“)
10	Screw, 10A x 1/2 (2) (Black)
10	Glide, Rear (2)
11	Drawer, Utility
12	Panel, Drawer (Almond)
12	WP488787 Whirlpool Refrigerator Screw
12	Panel Drawer (White)
13	WP488627 Whirlpool Refrigerator Screw
13	Handle, Drawer
14	Protector, Drawer (2)
