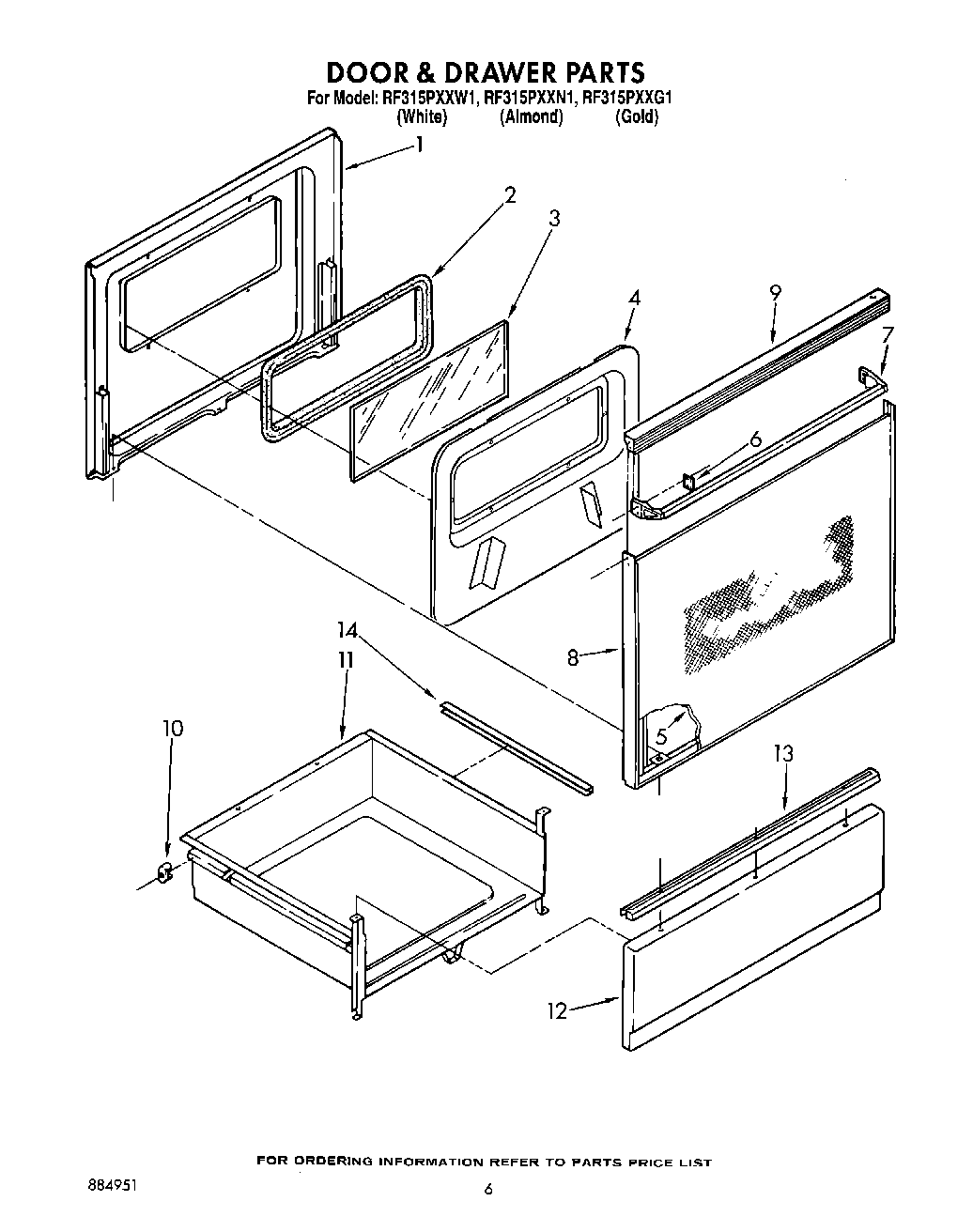

RF315PXXW1 05 – DOOR AND DRAWER

Products

PositionProduct
1Liner, Door
2Seal, Door
3Glass, Inner
4Retainer, Insulation
4Screw
5Glass, Panel (Black Model)
6Clip, Mtg (2)
7Handle, Oven Door
8Frame, Door
8WP355515 Whirlpool Screw
9Back Splash (Screw (4) 10AB x 1/2“)
9Top, Door (Black Model)
10Screw, 10A x 1/2 (2) (Black)
10Glide, Rear (2)
11Drawer, Utility
12Panel Drawer (White)
12Panel, Drawer (Almond)
12Panel Drawer (Harvest Gold)
12WP488787 Whirlpool Refrigerator Screw
13Handle, Drawer
13WP488627 Whirlpool Refrigerator Screw
14Protector, Drawer (2)
