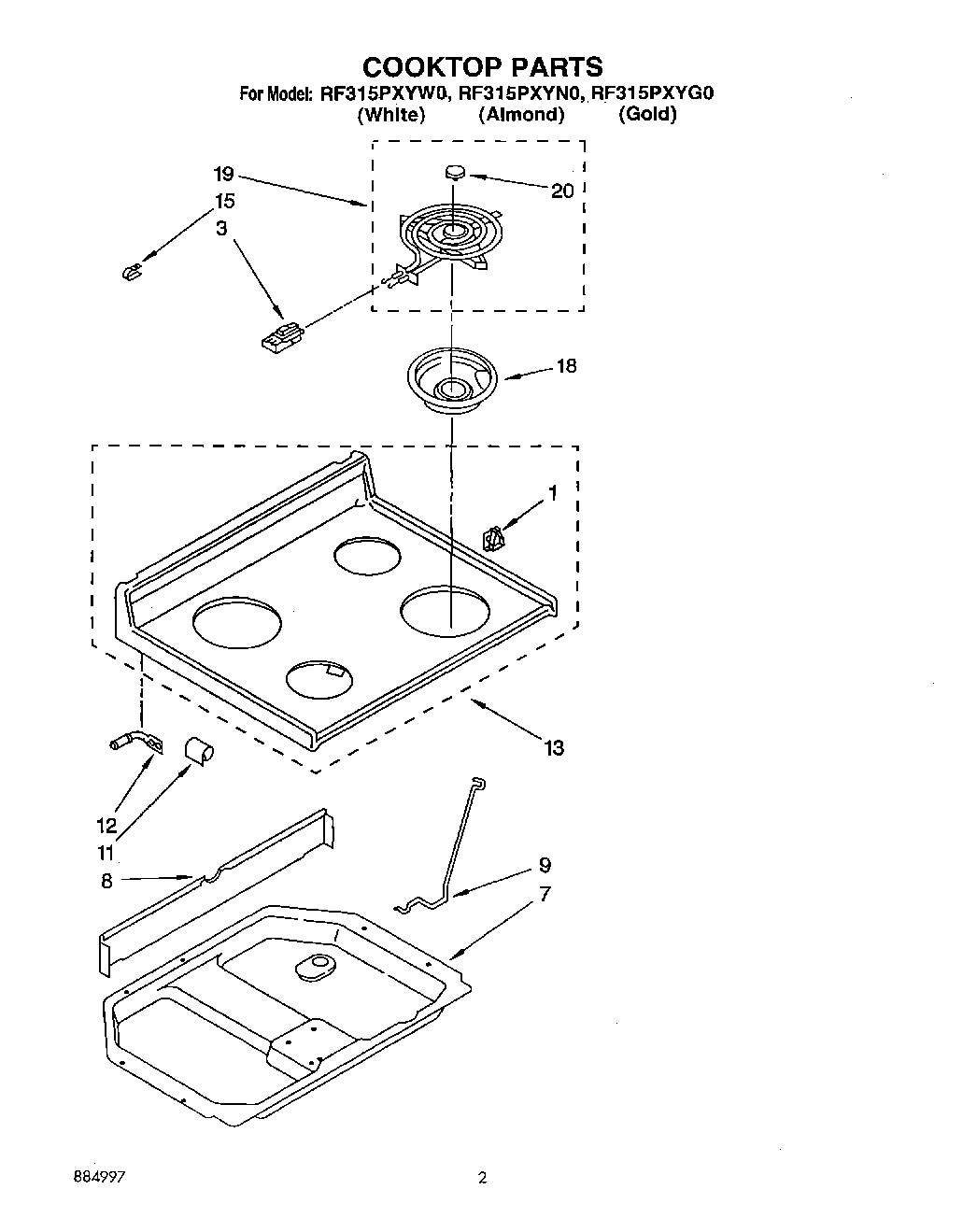

RF315PXYG0 02 – COOKTOP, LIT/OPTIONAL

Products

Position	Product
	Repair Parts List
	WPL LIT3147395
	Use & Care Guide
	Wiring Diagram
1	WP487887 Whirlpool Refrigerator Screw
1	Nut (4)
1	814103 Whirlpool Clip
3	WP313808 Whirlpool Screw
3	WP4332752 Whirlpool Clip
7	Box, Burner
7	WP3390631 Whirlpool Screw
8	Shield, Wiring
9	Rod, Cooktop
11	Bracket, Cooktop (2)
12	Pin, Cooktop (2)
13	Cooktop (Almond)
13	Cooktop (White)
13	Cooktop (Gold)
15	SCREW
15	WP308605 Whirlpool Refrigerator Clamp
18	WPW10290350 Whirlpool Stove Drip Bowl
18	WPW10290353 Whirlpool Drip Bowl 6" ClimaTek
19	WP660532 Whirlpool Oven Surface Element
19	WP660533 Whirlpool Oven 8" Surface Element
20	Medallion (4)
