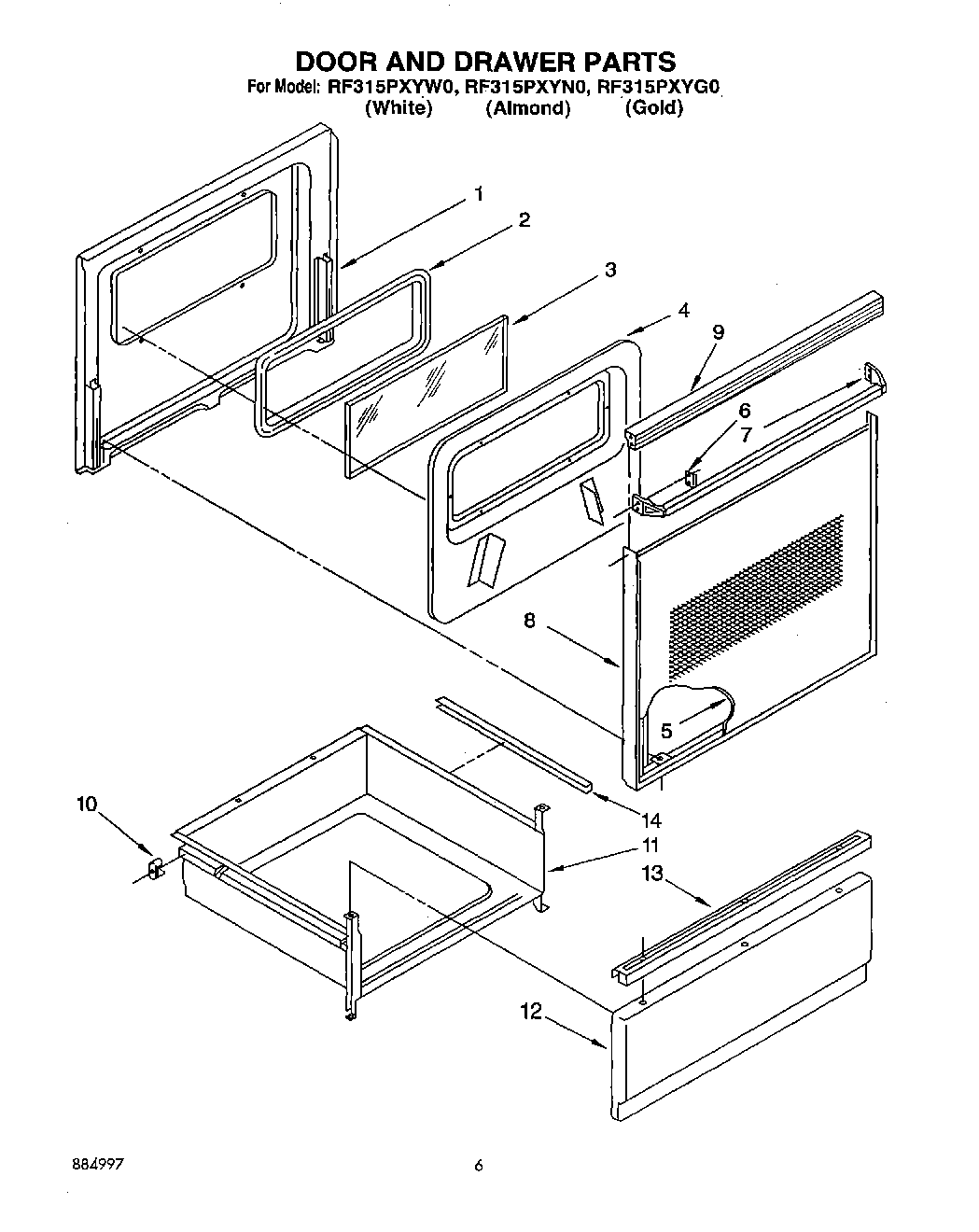

RF315PXYG1 05 – DOOR AND DRAWER

Products

Position	Product
1	Liner, Door
2	Seal, Door
3	Glass, Inner
4	Retainer, Insulation
4	Screw
5	Glass, Panel (Black Model)
6	Clip, Mtg (2)
7	Handle, Oven Door
8	WP355515 Whirlpool Screw
8	Frame, Door
9	Back Splash (Screw (4) 10AB x 1/2“)
9	Top, Door (Black Model)
10	Glide, Rear (2)
11	Drawer, Utility
12	Panel Drawer (Harvest Gold)
12	WP488787 Whirlpool Refrigerator Screw
12	Panel, Drawer (Almond)
12	Panel Drawer (White)
13	WP488627 Whirlpool Refrigerator Screw
13	Handle, Drawer
14	Protector, Drawer (2)
