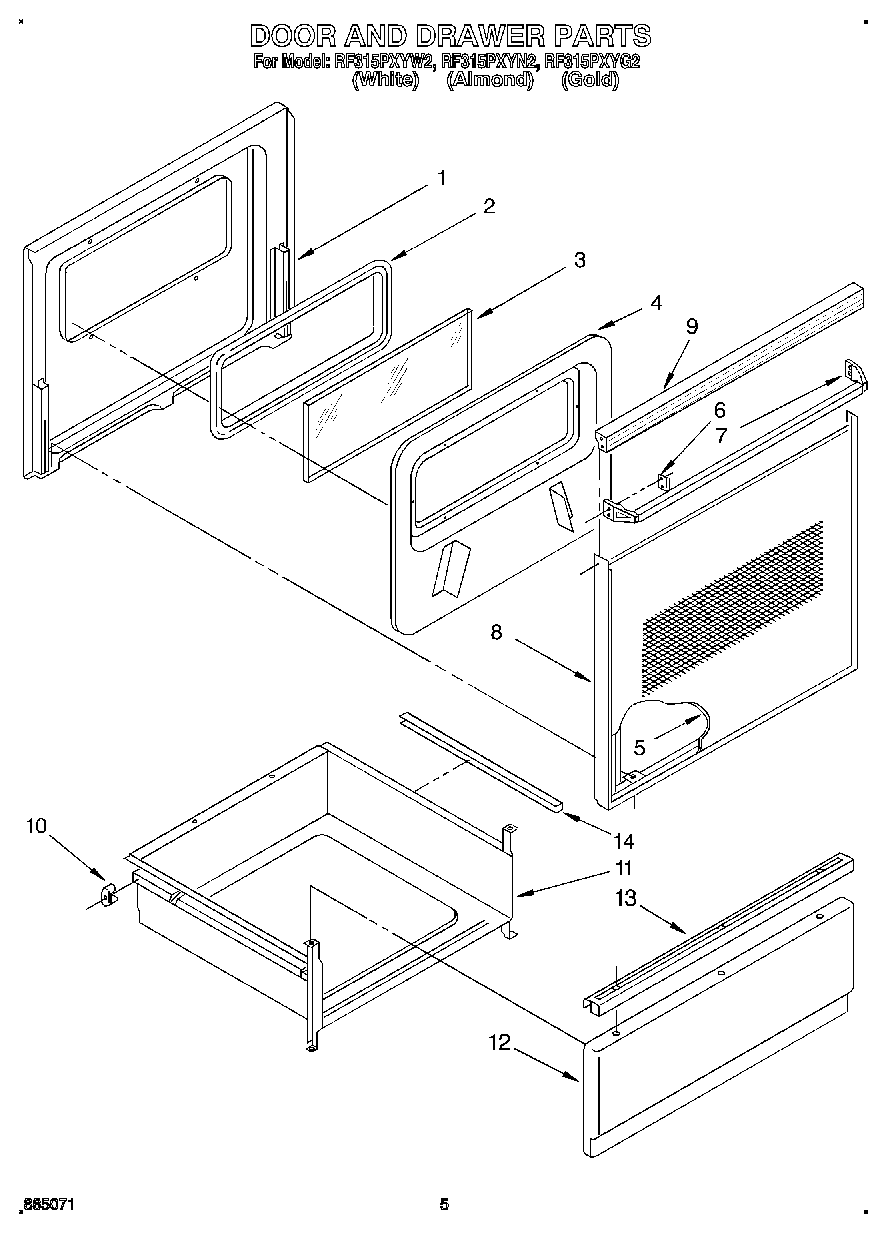

RF315PXYN2 04 – DOOR AND DRAWER

Products

Position	Product
1	Liner, Door
2	Seal, Door
3	Glass, Clear
4	Screw
4	Retainer, Insulation
5	Glass, Panel (Black Model)
6	Clip, Mtg (2)
7	Handle, Oven Door
8	Frame, Door
8	WP355515 Whirlpool Screw
9	Back Splash (Screw (4) 10AB x 1/2“)
9	Top, Door (Black Model)
10	WP308685 Whirlpool Microwave Screw
10	Glide, Rear (2)
11	Drawer, Utility
12	Panel Drawer (Harvest Gold)
12	Panel, Drawer (Almond)
12	Panel Drawer (White)
13	WP488627 Whirlpool Refrigerator Screw
13	Handle, Drawer
14	Protector, Drawer (2)
