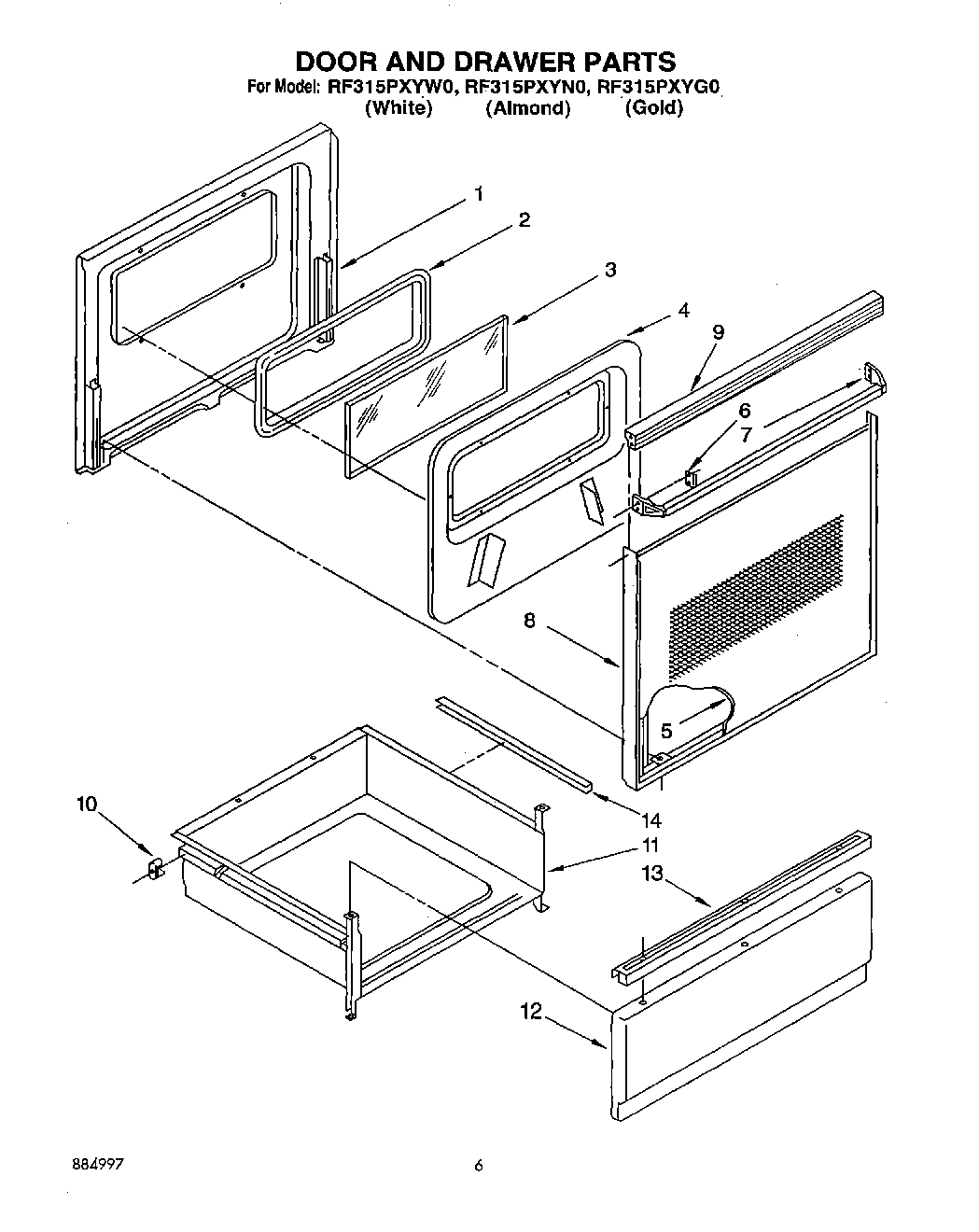

RF315PXYW1 05 – DOOR AND DRAWER

Products

PositionProduct
1Liner, Door
2Seal, Door
3Glass, Inner
4Retainer, Insulation
4Screw
5Glass, Panel (Black Model)
6Clip, Mtg (2)
7Handle, Oven Door
8WP355515 Whirlpool Screw
8Frame, Door
9Back Splash (Screw (4) 10AB x 1/2“)
9Top, Door (Black Model)
10Glide, Rear (2)
11Drawer, Utility
12Panel Drawer (Harvest Gold)
12WP488787 Whirlpool Refrigerator Screw
12Panel, Drawer (Almond)
12Panel Drawer (White)
13WP488627 Whirlpool Refrigerator Screw
13Handle, Drawer
14Protector, Drawer (2)
