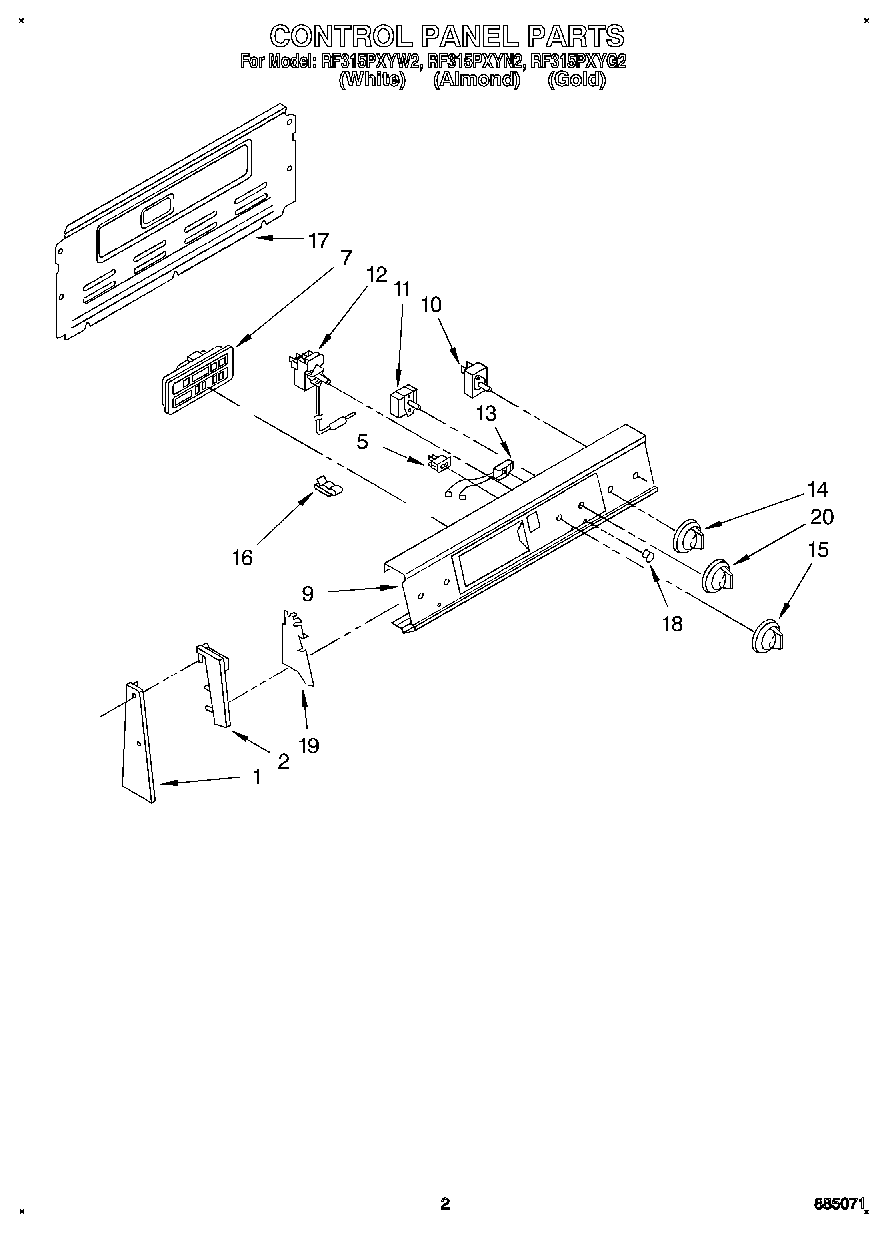

RF315PXYW2 02 – CONTROL PANEL

Products

Position	Product
1	WP3390631 Whirlpool Screw
1	Screw 10-32x1``
1	Screw 10-32x7/16``
2	End Cap R.H.
2	End Cap L.H.
2	Screw,
5	Switch, Rocker
7	Timer, ERC Control
9	Panel, Control
9	Washer
10	WP3149400 Whirlpool Oven Infinite Switch
10	WP3149404 Whirlpool Oven Surface Element Switch
10	Screw, 8-32 x 3/16 (2)
11	Switch, Selector (4 Position)
12	Thermostat, Oven
12	Thermostat, Oven (Alt.)
12	Thermostat, Oven (Alt.)
12	WP313808 Whirlpool Screw
13	Light, Indicator (250V)
13	Light, Indicator (Includes No. 12) (Surface Unit On)
14	Knob, (4) Infinite Switch (White/Almond/Gold)
15	Knob, Thermostat
16	Clip, Tube
17	SCREW
17	Rear Cover Contr
18	Lens, Amber
19	Shield (2)
19	WP965173 Whirlpool Dishwasher Screw
20	Knob, Selector
