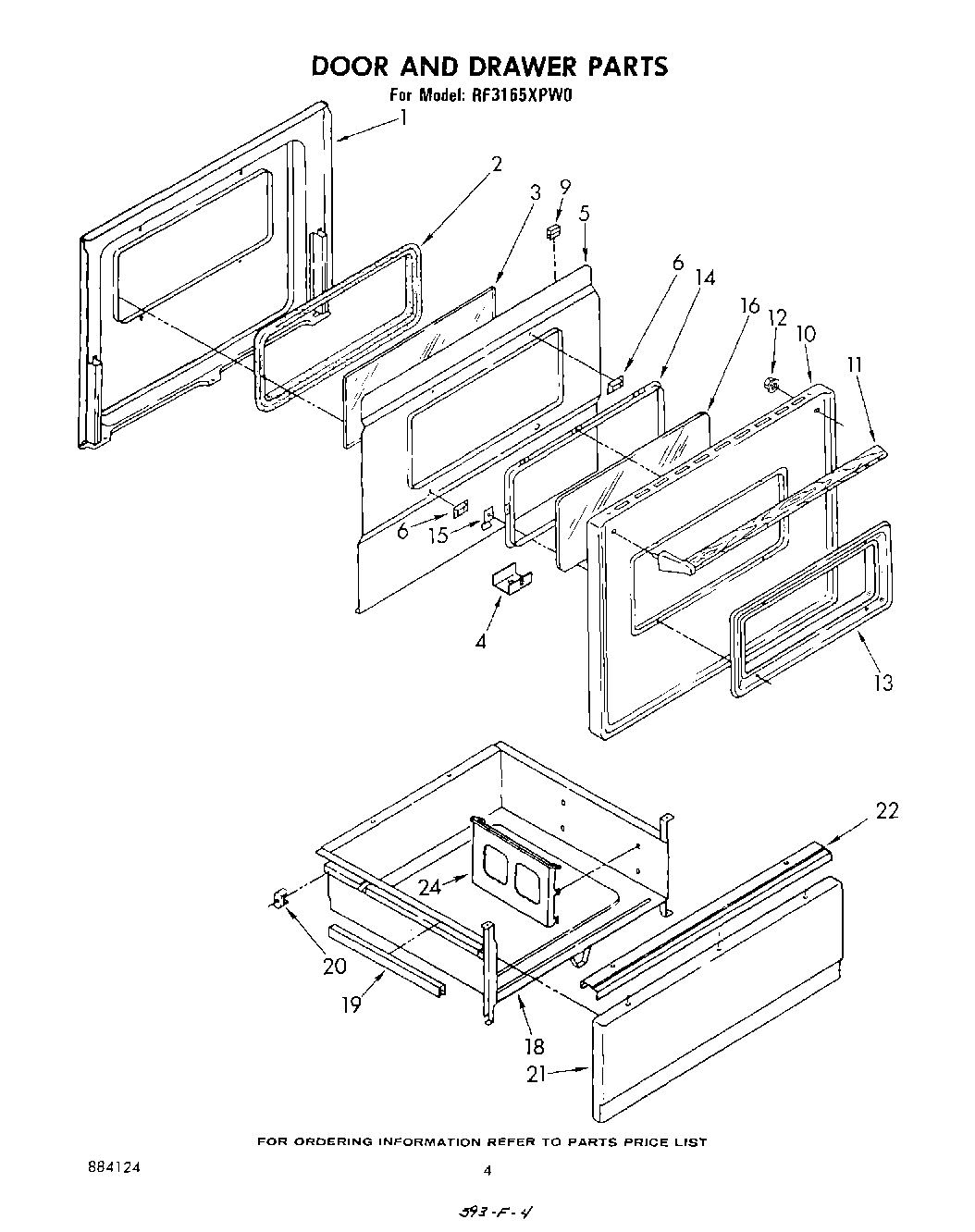

RF3165XPW0 04 – DOOR AND DRAWER

Products

Position	Product
1	Screw (3)
1	Liner, Door
2	seal, pano glass
3	glass, inner 30``
4	Spacer, Baffle (2)
5	baffle, insulation
6	spacer, insulation baffle (4)
9	Channel, Rubber (4)
10	Panel, Door (Toast)
10	Panel, Door (Harvest Gold)
10	Panel, Door (Platinum)
10	Panel, Door (Almond)
10	Panel, Door (White)
11	Handle, Black Oven Door
12	WP308499 Whirlpool Nut
13	Frame, Window
14	Retainer, Glass
14	Hinge-Lt. or Rt.
15	Clip, Frame
16	Screw
16	Glass, Outer
18	Drawer, Utility
19	Protector, Drawer (2)
20	Screw, 10A x 1/2 (2) (Black)
20	Glide, Rear (2)
21	WP488787 Whirlpool Refrigerator Screw
21	Panel, Drawer (Almond)
21	Panel, Drawer (Platinum)
21	Panel, Drawer (Toast)
21	Panel Drawer (Harvest Gold)
21	Panel Drawer (Black)
21	Panel Drawer (White)
22	Handle, Drawer
22	WP488627 Whirlpool Refrigerator Screw
24	Rack, Literature
