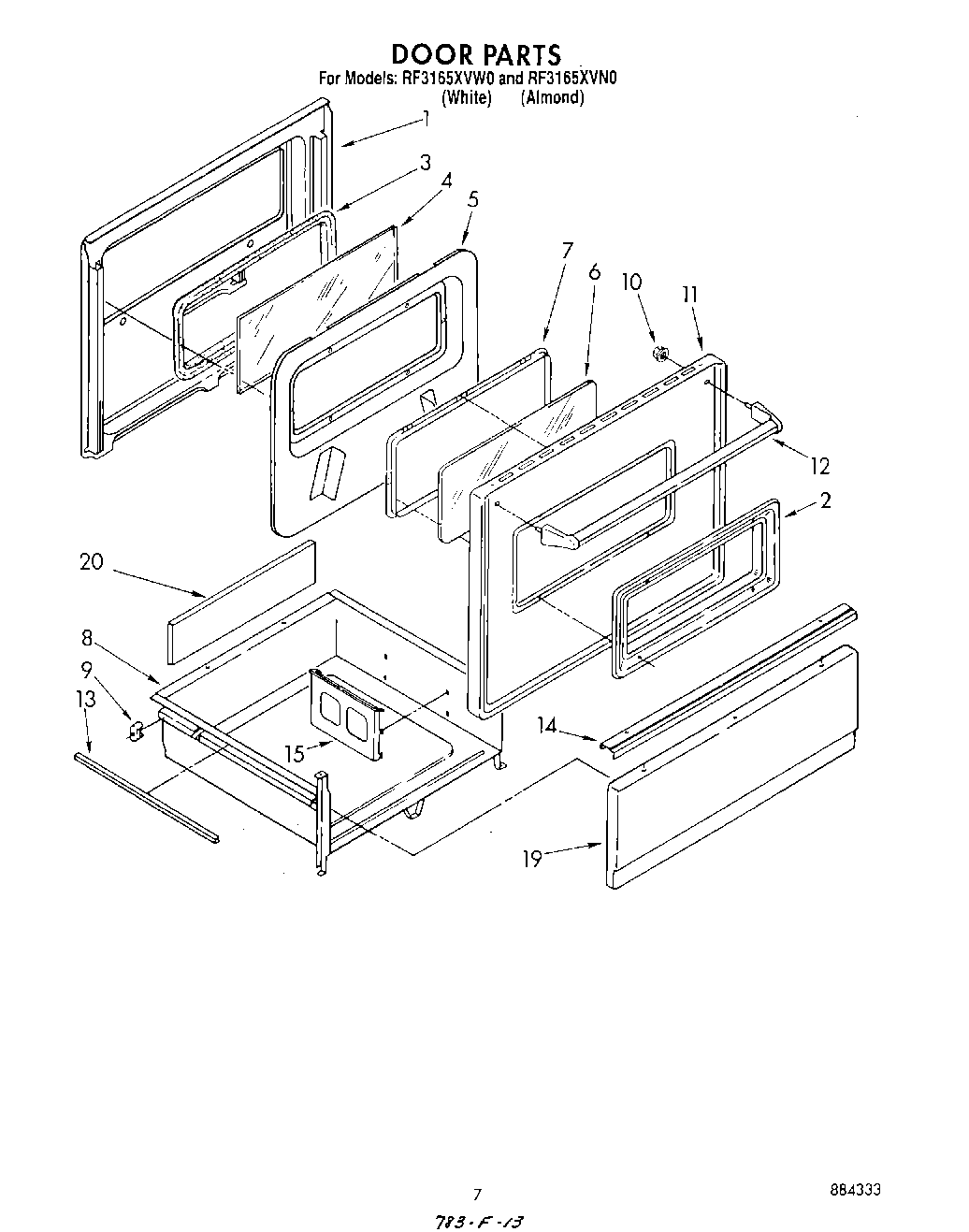

RF3165XVF0 06 – DOOR

Products

Position	Product
1	Liner, Door
2	Retainer, Glass
3	Seal, Door
4	Glass, Inner
5	Clip, Frame
5	Screw
5	Retainer, Insulation
6	Glass, Outer
7	Window, Frame
7	Hinge-Lt. or Rt.
7	Screw
8	Drawer, Utility
9	Glide, Rear (2)
10	WP308499 Whirlpool Nut
11	Panel, Door (White)
11	Panel, Door (Almond)
11	Panel, Door (Harvest Gold)
11	Panel, Door (Toast)
11	Panel, Door (Platinum)
11	Screw, 10A x 1/2 (2) (Black)
12	Handle, Black Oven Door
13	Protector, Drawer (2)
14	WP488627 Whirlpool Refrigerator Screw
14	Handle, Drawer
15	Rack, Literature
19	Panel, Drawer (Platinum)
19	Panel, Drawer (Toast)
19	Panel, Drawer (Almond)
19	Panel Drawer (White)
19	Panel Drawer (Harvest Gold)
20	Pad, Sound
