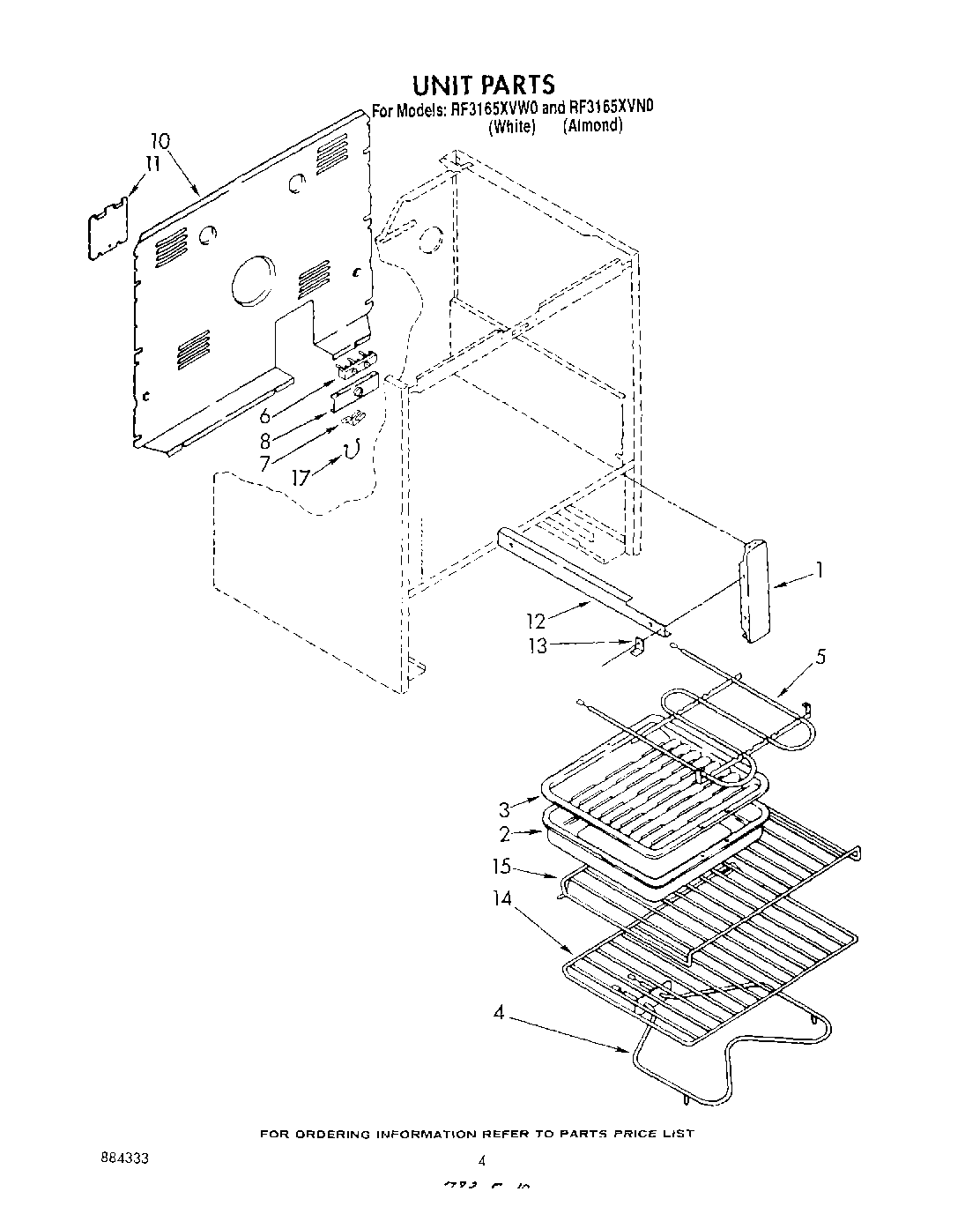

RF3165XVM0 04 – UNIT , LITERATURE AND OPTIONAL

RF3165XVM0 04 – UNIT , LITERATURE AND OPTIONAL

Written by

in

RF3165XVM0 04 – UNIT , LITERATURE AND OPTIONAL

Products

Position	Product
	WPL LIT313358
	Screw, 10-32 x 5/8 (4)
	WPL LIT3148551
	WPL LIT884333
	WPL LIT3148614
1	Bracket, Mounting (2)
3	4396923 Whirlpool Broil Pan Set Gray Porcelain
4	ELMNT-BAKE
5	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
6	WP8203546 Whirlpool Terminal Block
6	WP112432 Whirlpool Nut Assembly
6	Screw, (2) 10-16 x 1
7	WPL 308498
7	Clip, Ground Wire
8	Bracket, Service
10	Cover, Rear
11	SCREW
11	Cover, Service
12	Rail R.H. (Includes Illus. 3)
12	Rail L.H. (Includes Illus. 3)
13	Glide, Front (2)
14	WPL 308173
15	WPL 308172
17	350956 Whirlpool Spray Assembly
17	8212471 Whirlpool Oven Paint
17	Leveler (Thinner) (2oz.)
17	Rotisserie Kit
17	Enamal, Toast (1 Qt. Uncut)
17	Platinum (Uncut)
17	Enamel, New Avocado (1 Qt. Uncut)
17	Enamel, Coffee (1 Qt. Uncut)
17	1
17	Grease
17	Paint, Spray (13 Oz.) (Platinum)
17	Toast
17	72017 Whirlpool Appliance Touch-Up Paint White
17	799344 Whirlpool Refrigerator Paint
17	WP72107 Whirlpool Touchup
17	Almond (Uncut)
17	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
17	72113 Whirlpool Touch-Up Paint
17	Golden Harvest
17	350930 Whirlpool White Spray Paint
17	Golden Harvest (Uncut)
17	Wire (14 Ga. 200 c Brown)
17	18 Ga. 80~c Rating (Red)
17	Wire (12 Ga. 150 c Black)
17	16515 Whirlpool Clip
17	Paint, Spray 13 Oz. (Avocado)
17	paint, spray 13 oz. (coffee)
17	Paint, Touch-Up 1/2 Oz. (Coffee)
17	72109 Whirlpool Dacor Avocado Touch-Up Paint
17	WPW10208653 Whirlpool Insulation
17	Wire, 25“ Roll (White 14 GA.)
17	Wire, 25` Roll (Red 14 Ga.)
17	Wire, 25` Roll (Black 14 Ga.)
17	WPL 799832
17	511873 Whirlpool Refrigerator Paint
17	Wire (14 Ga. 150 c Yellow)
17	285006 Whirlpool Spray
17	Wire (14 Ga. 150 c Orange)
17	Wire (14 Ga. 150 c Green)
17	Wire (14 Ga. 150 c Brown)
17	Wire (14 Ga. 150 c Blue)
17	242831 Whirlpool Oven Wire
17	WPL 72112
17	350942 Whirlpool Spray Paint
17	FOIL, ALUMINUM OVEN (18“ X 25 )
