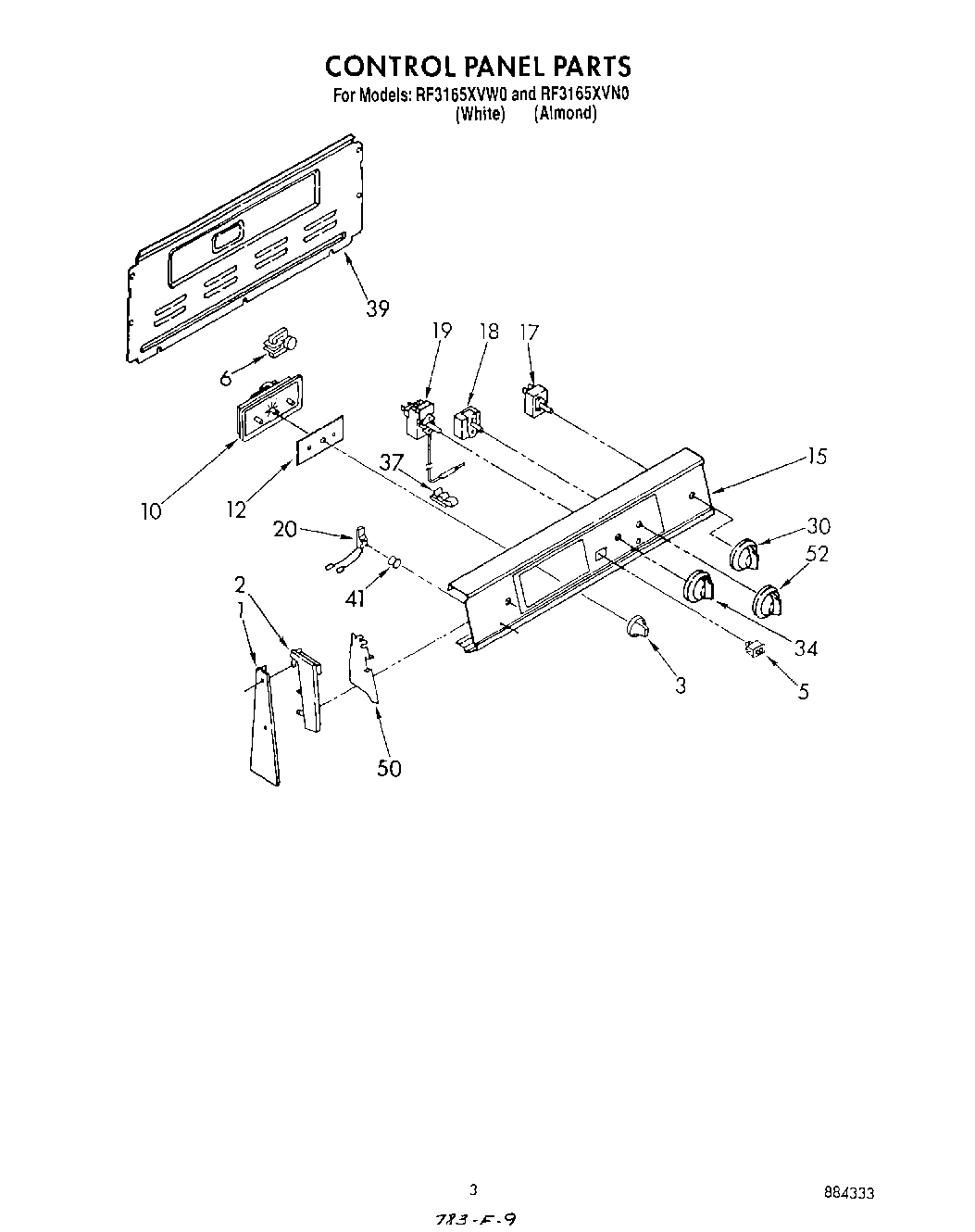

RF3165XVN0 03 – CONTROL PANEL

Products

Position	Product
	WP313808 Whirlpool Screw
1	End Trim L.H.
1	Washer
1	WP3390631 Whirlpool Screw
2	End Cap R.H.
2	End Cap L.H.
2	Screw,
3	Spring (3)
3	WP3169181 Whirlpool Knob
5	WP4314961 Whirlpool Lite Switch
6	Motor, Timer
10	Timer, Clock (Includes No.6)
12	Glass, Timer
15	Washer
15	Panel, Control
17	WP3149400 Whirlpool Oven Infinite Switch
17	WP3148952 Whirlpool Oven Infinite Switch
18	WP486579 Whirlpool Air Conditioner Screw
18	Switch, Selector (4 Position)
19	Thermostat, Oven
19	Thermostat, Oven (Alt.)
19	Thermostat, Oven (Alt.)
20	Light, Indicator (250V)
20	Light, Indicator (Surface Unit (2))
30	Knob, Control (4)
34	Knob, Control (4)
34	Screw
37	Clip, Tube
39	Harness-Conduit Asm.
39	SCREW
41	Lens, Amber
50	Shield (2)
50	WP965173 Whirlpool Dishwasher Screw
52	Knob, Control
52	WP688805 Whirlpool Spring Clip
