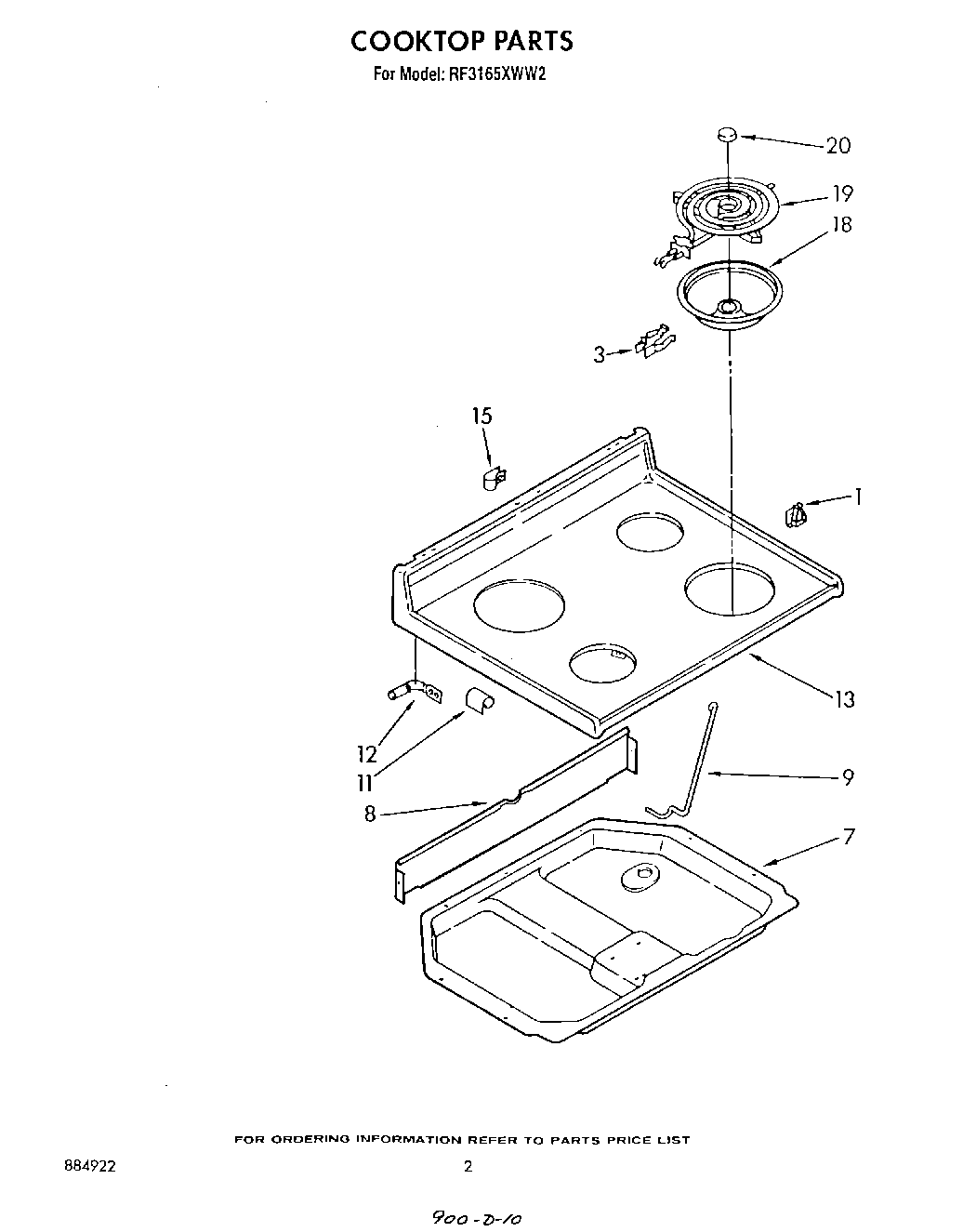

RF3165XWG2 02 – COOKTOP

RF3165XWG2 02 – COOKTOP

Written by

in

RF3165XWG2 02 – COOKTOP

Products

PositionProduct
Repair Parts List
Use & Care Guide
Instructions, Installation
WPL LIT3149507
1814103 Whirlpool Clip
1Nut (4)
1WP487887 Whirlpool Refrigerator Screw
3WP313808 Whirlpool Screw
3WP4332752 Whirlpool Clip
7Box, Burner
7WP3390631 Whirlpool Screw
8Shield, Wiring
9Rod, Cooktop
11Bracket, Cooktop (2)
12Pin, Cooktop (2)
13Cooktop (Almond)
13Cooktop (Gold)
13Cooktop (White)
15SCREW
15WP308605 Whirlpool Refrigerator Clamp
18WPW10196406 Whirlpool 6" Chrome Drip Bowl
18DRIP BOWL 8" W/HOLE CHROME
19WP660532 Whirlpool Oven Surface Element
19WP660533 Whirlpool Oven 8" Surface Element
20Medallion (4)
