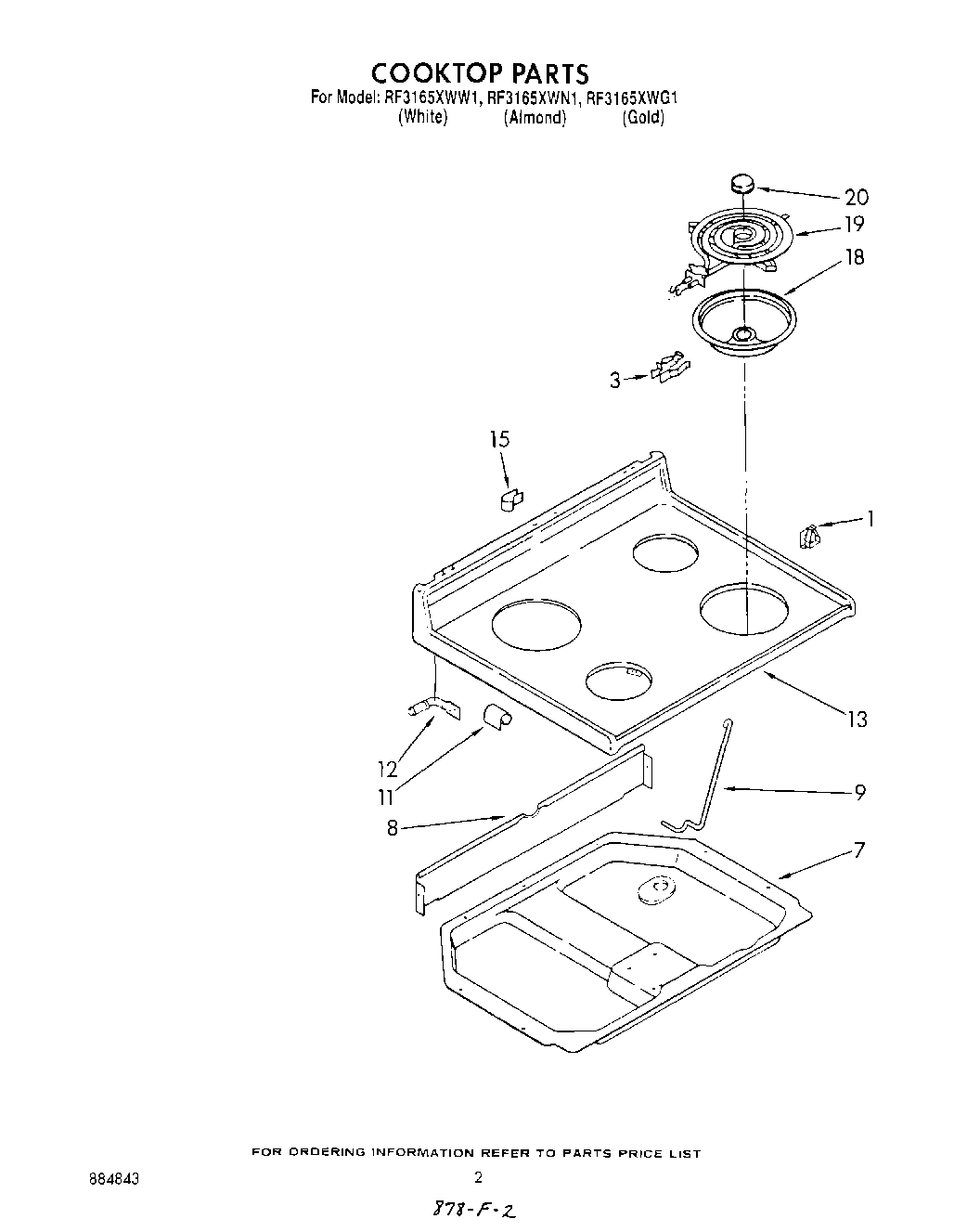

RF3165XWN1 02 – COOK TOP

RF3165XWN1 02 – COOK TOP

Written by

in

RF3165XWN1 02 – COOK TOP

Products

PositionProduct
1814103 Whirlpool Clip
1WP487887 Whirlpool Refrigerator Screw
1Nut (4)
3WP4332752 Whirlpool Clip
3WP313808 Whirlpool Screw
7WP3390631 Whirlpool Screw
7Box, Burner
8Shield, Wiring
9Rod, Cooktop
11Bracket, Cooktop (2)
12Pin, Cooktop (2)
13Cooktop (Gold)
13Cooktop (White)
13Cooktop (Almond)
15SCREW
15WP308605 Whirlpool Refrigerator Clamp
18WPW10196406 Whirlpool 6" Chrome Drip Bowl
18DRIP BOWL 8" W/HOLE CHROME
19WP660532 Whirlpool Oven Surface Element
19WP660533 Whirlpool Oven 8" Surface Element
20Medallion (4)
