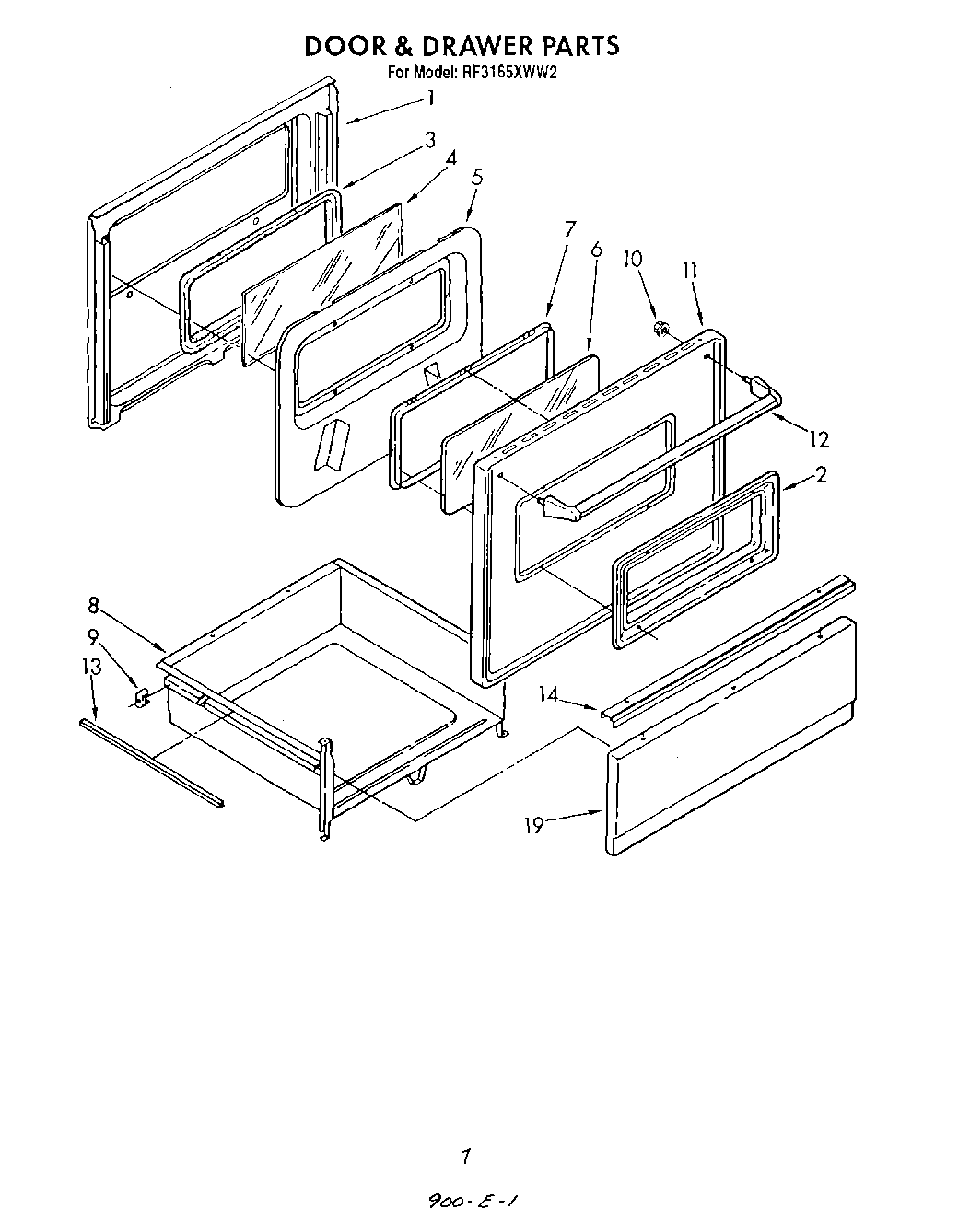

RF3165XWN2 06 – DOOR AND DRAWERadmin2025-04-26T11:08:11+00:00RF3165XWN2 06 – DOOR AND DRAWER
Products
| Position | Product |
|---|
| 1 | Liner, Door |
| 2 | Window, Frame |
| 3 | Seal, Door |
| 4 | Glass, Inner |
| 5 | Clip, Frame |
| 5 | Screw |
| 5 | Retainer, Insulation |
| 6 | Glass, Outer |
| 7 | Hinge-Lt. or Rt. |
| 7 | Screw |
| 7 | Retainer, Glass |
| 8 | Drawer, Utility |
| 9 | Glide, Rear (2) |
| 10 | WP308499 Whirlpool Nut |
| 11 | Panel, Door (White) |
| 11 | Panel, Door (Almond) |
| 11 | Screw, 10A x 1/2 (2) (Black) |
| 11 | Panel, Door (Harvest Gold) |
| 12 | Handle, Door |
| 13 | Protector, Drawer (2) |
| 14 | Handle, Drawer |
| 14 | WP488627 Whirlpool Refrigerator Screw |
| 19 | Panel Drawer (Harvest Gold) |
| 19 | Panel Drawer (White) |
| 19 | Panel, Drawer (Almond) |
