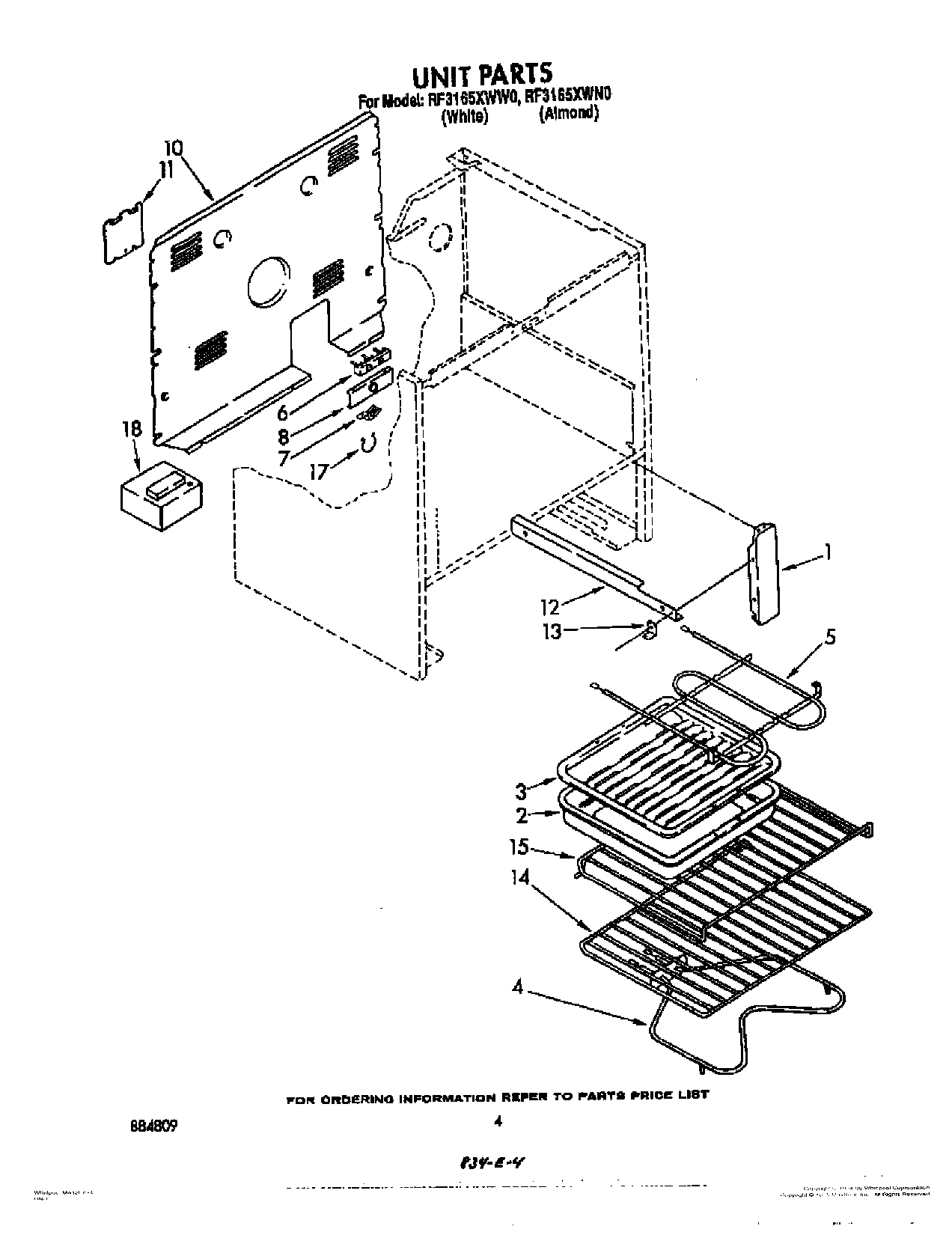

RF3165XWW0 04 – UNIT, LITERATURE AND OPTIONAL

Products

PositionProduct
WPL LIT884809
WPL 312318
WPL LIT313358
WPL LIT3148614
511873 Whirlpool Refrigerator Paint
WPL LIT3149923
1Bracket, Mounting (2)
34396923 Whirlpool Broil Pan Set Gray Porcelain
4ELMNT-BAKE
5WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
6Screw, (2) 10-16 x 1
6WP8203546 Whirlpool Terminal Block
6WP112432 Whirlpool Nut Assembly
7Clip, Ground Wire
7WPL 308498
8Bracket, Service
10Cover, Rear
11SCREW
11Cover, Service
12Rail R.H. (Includes Illus. 3)
12Rail L.H. (Includes Illus. 3)
13Glide, Front (2)
14WPL 308173
15WPL 308172
1716515 Whirlpool Clip
18Wire (12 Ga. 150 c Black)
18Wire (14 Ga. 150 c Yellow)
188212471 Whirlpool Oven Paint
18Block, Balance
18Wire (14 Ga. 150 c Orange)
1818 Ga. 80~c Rating (Red)
18Wire (14 Ga. 200 c Brown)
181
18Enamel, Coffee (1 Qt. Uncut)
18Enamel, New Avocado (1 Qt. Uncut)
18Rotisserie Kit
18Leveler (Thinner) (2oz.)
18350930 Whirlpool White Spray Paint
18340184 Whirlpool Screw
18Grease
18Wire (14 Ga. 150 c Green)
18WPL 72112
18Platinum (Uncut)
18Enamal, Toast (1 Qt. Uncut)
18Paint, Spray (13 Oz.) (Platinum)
18Toast
18Golden Harvest (Uncut)
18Golden Harvest
1872113 Whirlpool Touch-Up Paint
1872110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
18Almond (Uncut)
18WP72107 Whirlpool Touchup
18799344 Whirlpool Refrigerator Paint
1872017 Whirlpool Appliance Touch-Up Paint White
18350942 Whirlpool Spray Paint
18WPL 799832
18Wire (14 Ga. 150 c Brown)
18Wire (14 Ga. 150 c Blue)
18242831 Whirlpool Oven Wire
18Paint, Spray 13 Oz. (Avocado)
18paint, spray 13 oz. (coffee)
18Paint, Touch-Up 1/2 Oz. (Coffee)
1872109 Whirlpool Dacor Avocado Touch-Up Paint
18285006 Whirlpool Spray
18Wire, 25“ Roll (White 14 GA.)
18Wire, 25` Roll (Red 14 Ga.)
18Wire, 25` Roll (Black 14 Ga.)
18FOIL, ALUMINUM OVEN (18“ X 25 )
18WPW10208653 Whirlpool Insulation
18350956 Whirlpool Spray Assembly
