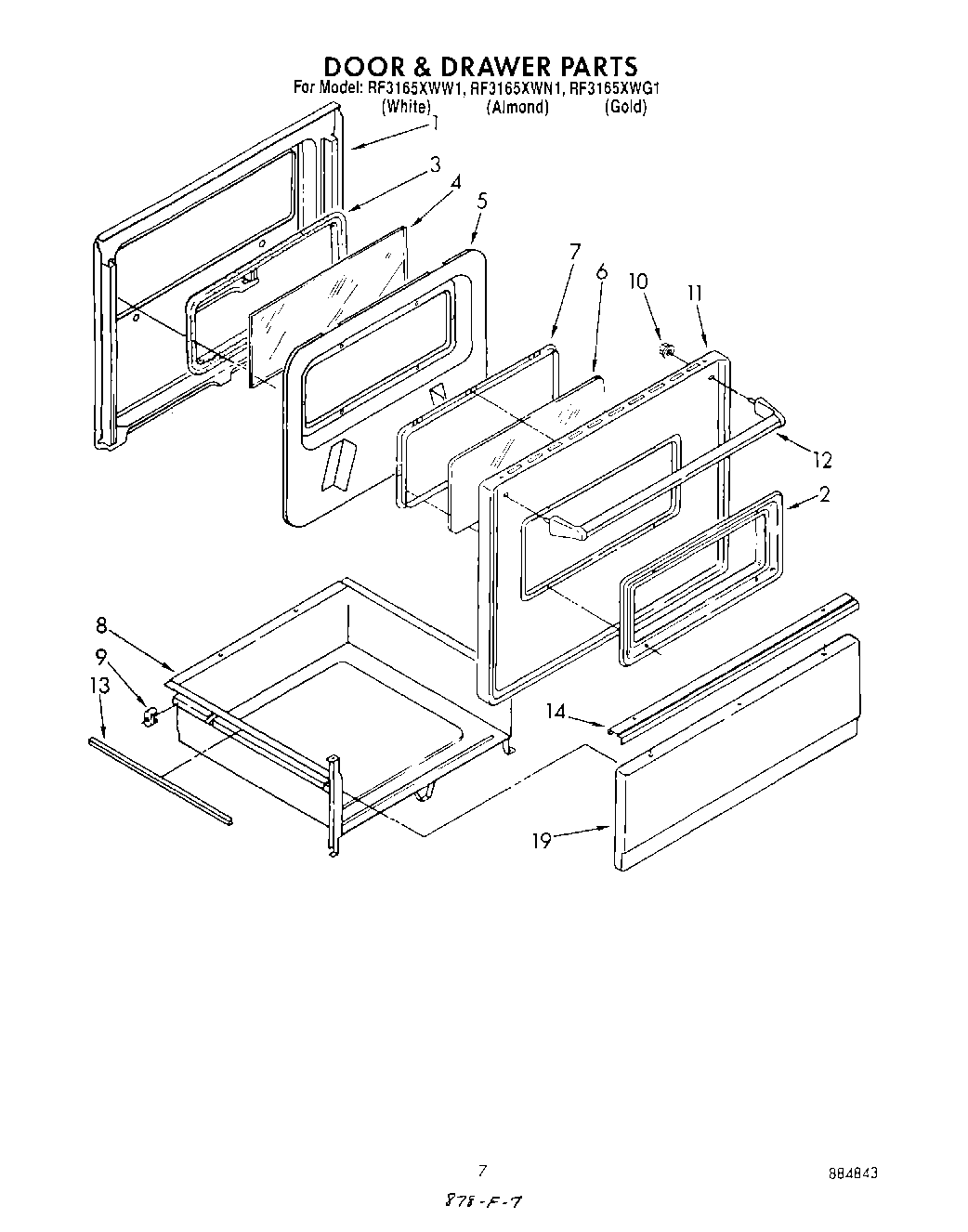

RF3165XWW1 06 – DOOR AND DRAWER

Products

PositionProduct
1Liner, Door
2Window, Frame
3Seal, Door
4Glass, Inner
5Clip, Frame
5Screw
5Retainer, Insulation
6Glass, Outer
7Hinge-Lt. or Rt.
7Screw
7Retainer, Glass
8Drawer, Utility
9Glide, Rear (2)
10WP308499 Whirlpool Nut
11Panel, Door (White)
11Panel, Door (Almond)
11Screw, 10A x 1/2 (2) (Black)
11Panel, Door (Harvest Gold)
12Handle, Door
13Protector, Drawer (2)
14Handle, Drawer
14WP488627 Whirlpool Refrigerator Screw
19Panel Drawer (Harvest Gold)
19Panel Drawer (White)
19Panel, Drawer (Almond)
