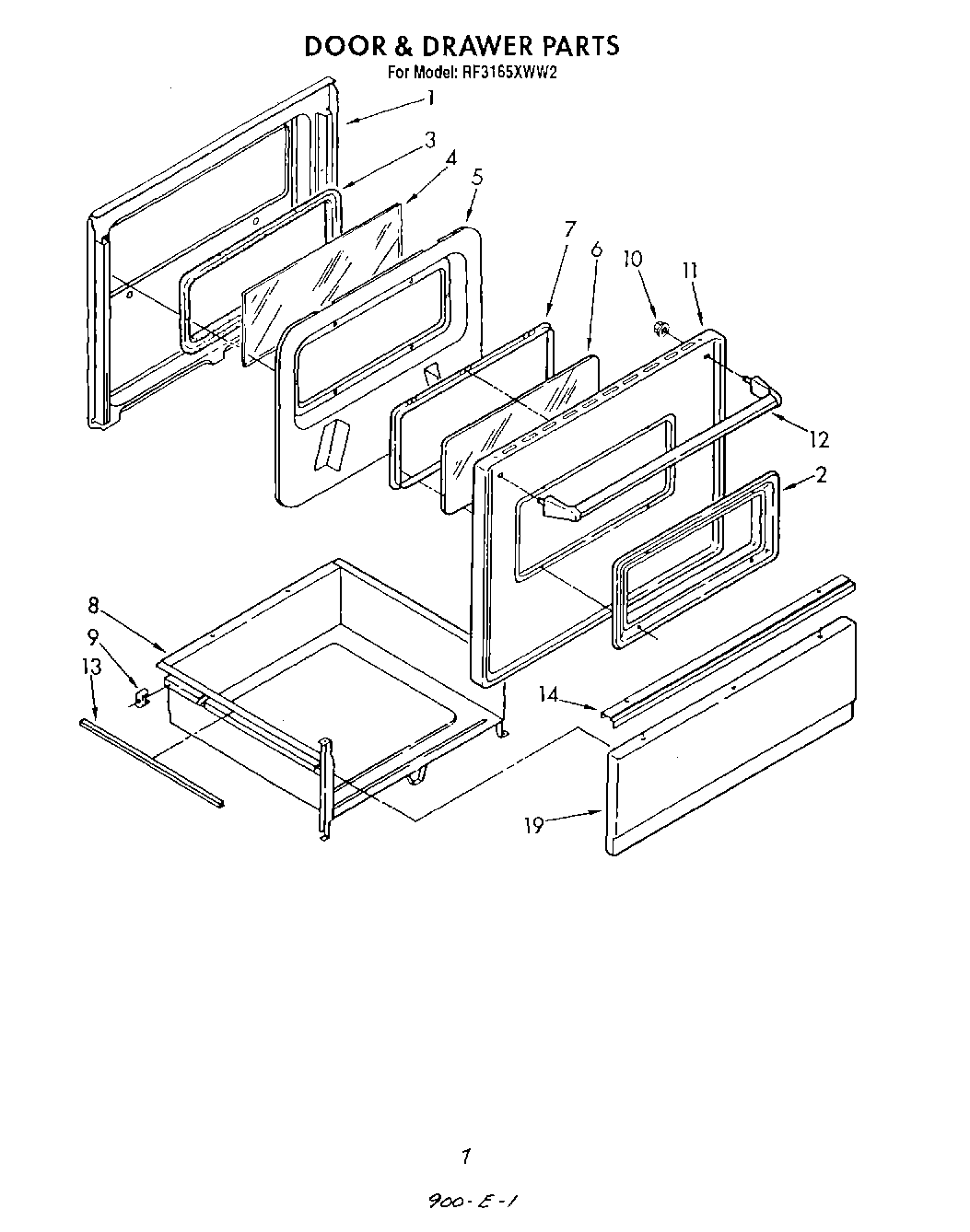

RF3165XWW2 06 – DOOR AND DRAWER

Products

Position	Product
1	Liner, Door
2	Window, Frame
3	Seal, Door
4	Glass, Inner
5	Clip, Frame
5	Screw
5	Retainer, Insulation
6	Glass, Outer
7	Hinge-Lt. or Rt.
7	Screw
7	Retainer, Glass
8	Drawer, Utility
9	Glide, Rear (2)
10	WP308499 Whirlpool Nut
11	Panel, Door (White)
11	Panel, Door (Almond)
11	Screw, 10A x 1/2 (2) (Black)
11	Panel, Door (Harvest Gold)
12	Handle, Door
13	Protector, Drawer (2)
14	Handle, Drawer
14	WP488627 Whirlpool Refrigerator Screw
19	Panel Drawer (Harvest Gold)
19	Panel Drawer (White)
19	Panel, Drawer (Almond)
