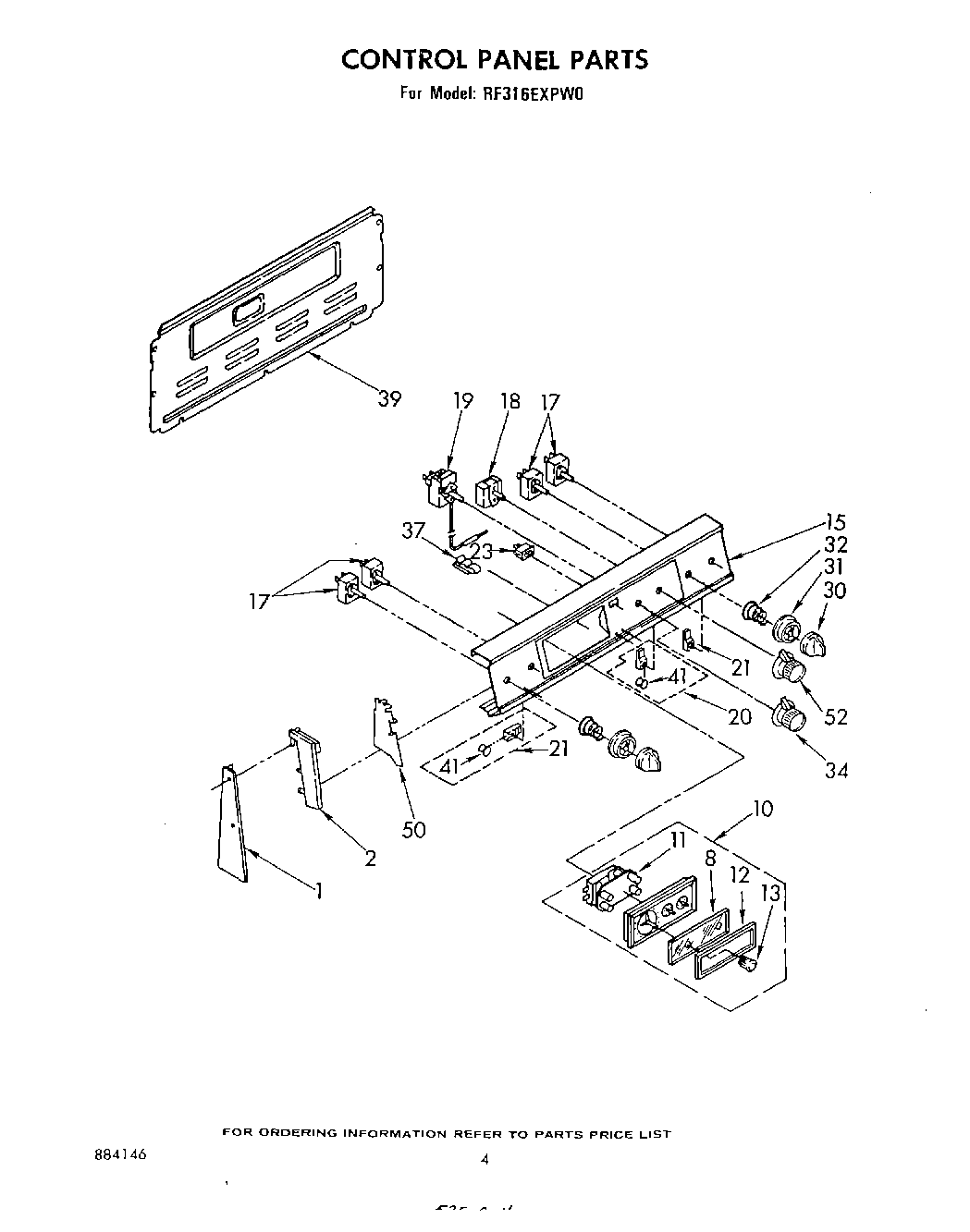

RF316EXPW0 03 – CONTROL PANEL

RF316EXPW0 03 – CONTROL PANEL

Written by

in

RF316EXPW0 03 – CONTROL PANEL

Products

PositionProduct
1WP3390631 Whirlpool Screw
1Washer
1End Trim L.H.
2Screw,
2End Cap R.H.
2End Cap L.H.
8Glass, Timer
10Speed Nut
11Motor, Timer
12Bezel, Timer
13Knob, Timer (3)
15Panel, Control
15Washer
17W10900107 Whirlpool Oven Surface Element Switch
18Switch, Selector (4 Position)
18WP486579 Whirlpool Air Conditioner Screw
19WP313808 Whirlpool Screw
19Thermostat, Oven
20Light, Indicator
21Light, Indicator (Surface Unit (2))
23WP4314961 Whirlpool Lite Switch
30WP307458 Whirlpool Knob
31W11194997 Whirlpool Knob Bezel
32Spring, Bezel (4)
34Knob, Thermostat
37Clip, Tube
39Harness-Conduit Asm.
39SCREW
41Lens, Amber
50Shield (2)
50WP965173 Whirlpool Dishwasher Screw
52Knob, Selector
52Screw
52WP688805 Whirlpool Spring Clip
