RF316EXPW0 06 – SECTION

RF316EXPW0 06 – SECTION

Written by

in

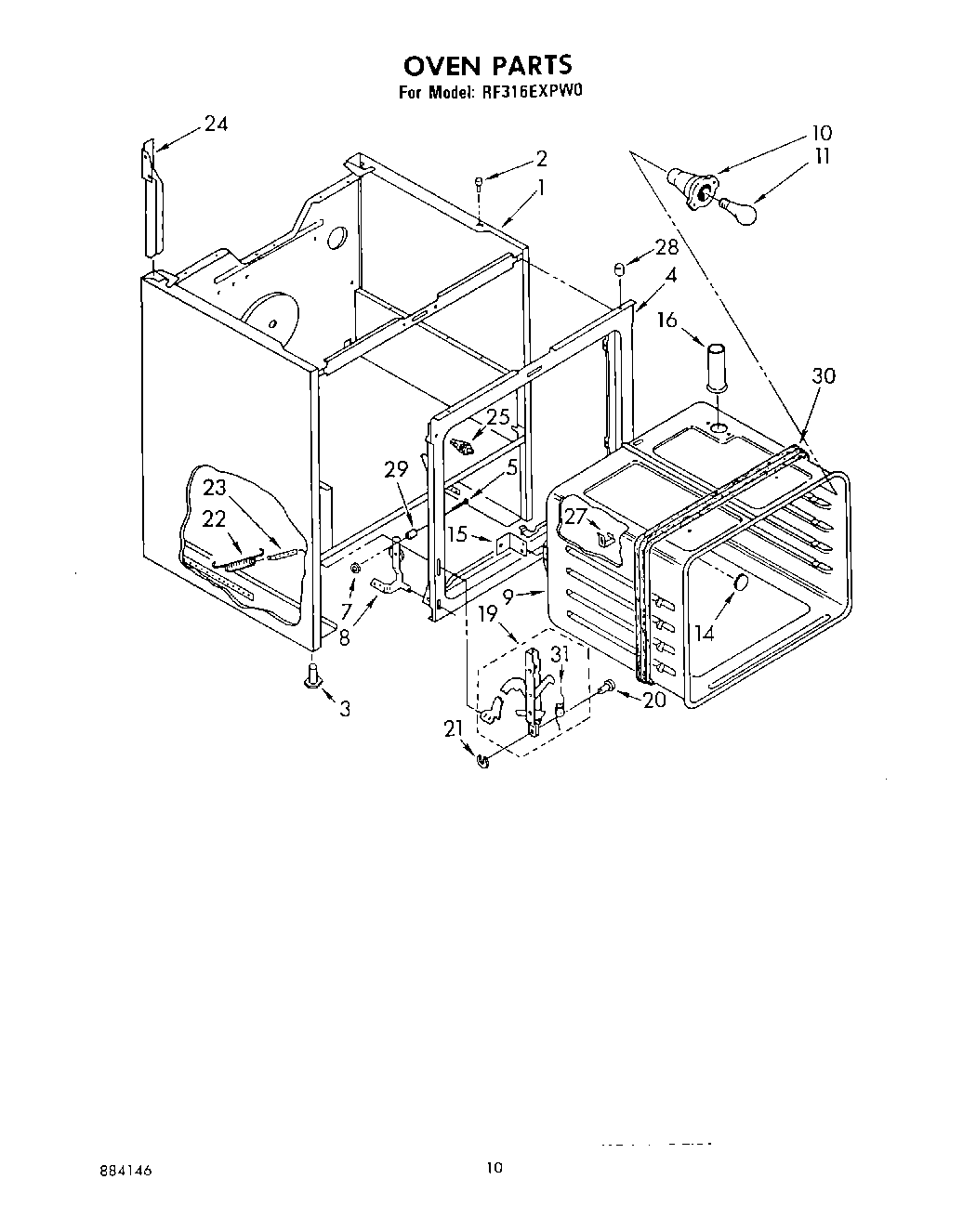

RF316EXPW0 06 – SECTION

Products

PositionProduct
1Main Chassis (White)
1Main Chassis (Toast)
1Main Chassis (Almond)
1Main Chassis (Platinum)
2238614 Whirlpool Bumper Hinge
3WPW10058460 Whirlpool Appliance Levelling Leg
4Frame, Front
5Pin, Hinge Ear (2)
7Pushnut (2)
8Hinge (L.H.)
8Hinge (R.H.)
9Screw (3)
9WPL 329000
10Screw (10-12 x .875)
10Socket, Oven Light
11RANGE ONLY 40W 120V APPL BULB
14Plug Button
15Bracket, Oven (Mounting)
16Screw, 10A x 1/2 (2) (Black)
16Vent, Oven
19Channel, Arm (2)
20WP307986 Whirlpool Hinge Pin
21Retainer Ring (2)
22Spring, Oven Door (2)
23WP308125 Whirlpool Microwave Range/Cooktop Anchor
24Wire Cover
24SCREW
24Wire Cover-Controls (Right)
25Switch, Door
2798005642 Whirlpool Clip
28Screw, 8-32 x 5/16 (2)
28locator, cooktop
29Snubber, Door (2)
30Heat Seal
31Spring, Door Stop
