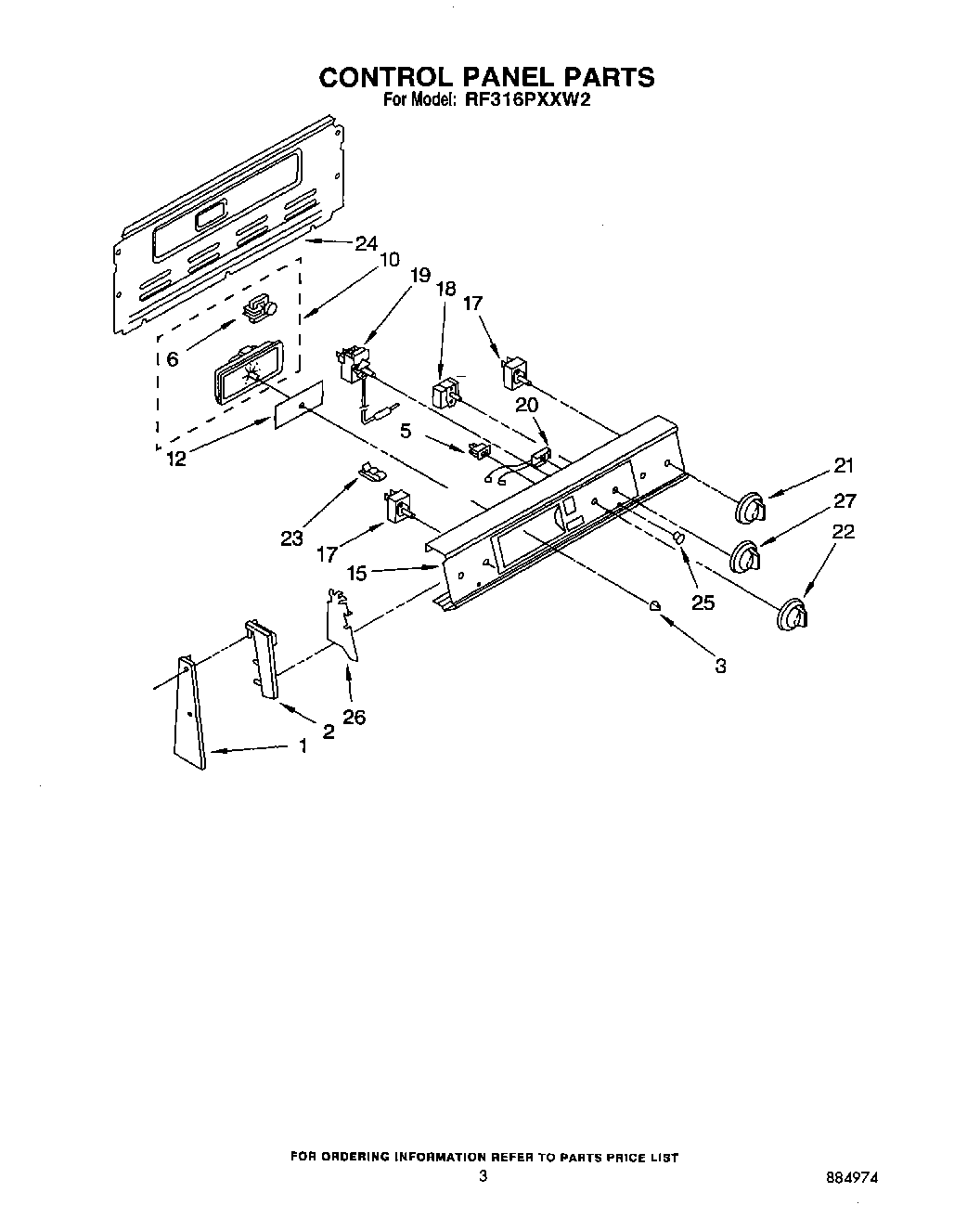

RF316PXXN2 03 – CONTROL PANEL

RF316PXXN2 03 – CONTROL PANEL

Written by

in

RF316PXXN2 03 – CONTROL PANEL

Products

PositionProduct
1Screw 10-32×7/16“
1Screw 10-32×1“
2Screw,
2End Cap R.H.
2End Cap L.H.
3WP3169181 Whirlpool Knob
5WP4314961 Whirlpool Lite Switch
6Motor, Timer
10Timer, Clock (Includes No.6)
12Glass, Timer
15Washer
15Panel, Control
17WP3148952 Whirlpool Oven Infinite Switch
17WP486579 Whirlpool Air Conditioner Screw
17WP3148955 Whirlpool Infinite Switch
18Switch, Selector (4 Position)
19Thermostat, Oven (Alt.)
19Thermostat, Oven (Alt.)
19Thermostat, Oven
19WP313808 Whirlpool Screw
20Light, Indicator (250V)
20Light, Indicator (Surface Unit On)
21WP3149983 Whirlpool Knob
22Knob, Temperature
23Clip, Tube
24Harness-Conduit Asm.
24SCREW
25Lens, Amber
26Shield (2)
26WP965173 Whirlpool Dishwasher Screw
27Knob, Control (Selector)
