RF316PXXN2 05 – DOOR AND DRAWER

RF316PXXN2 05 – DOOR AND DRAWER

Written by

in

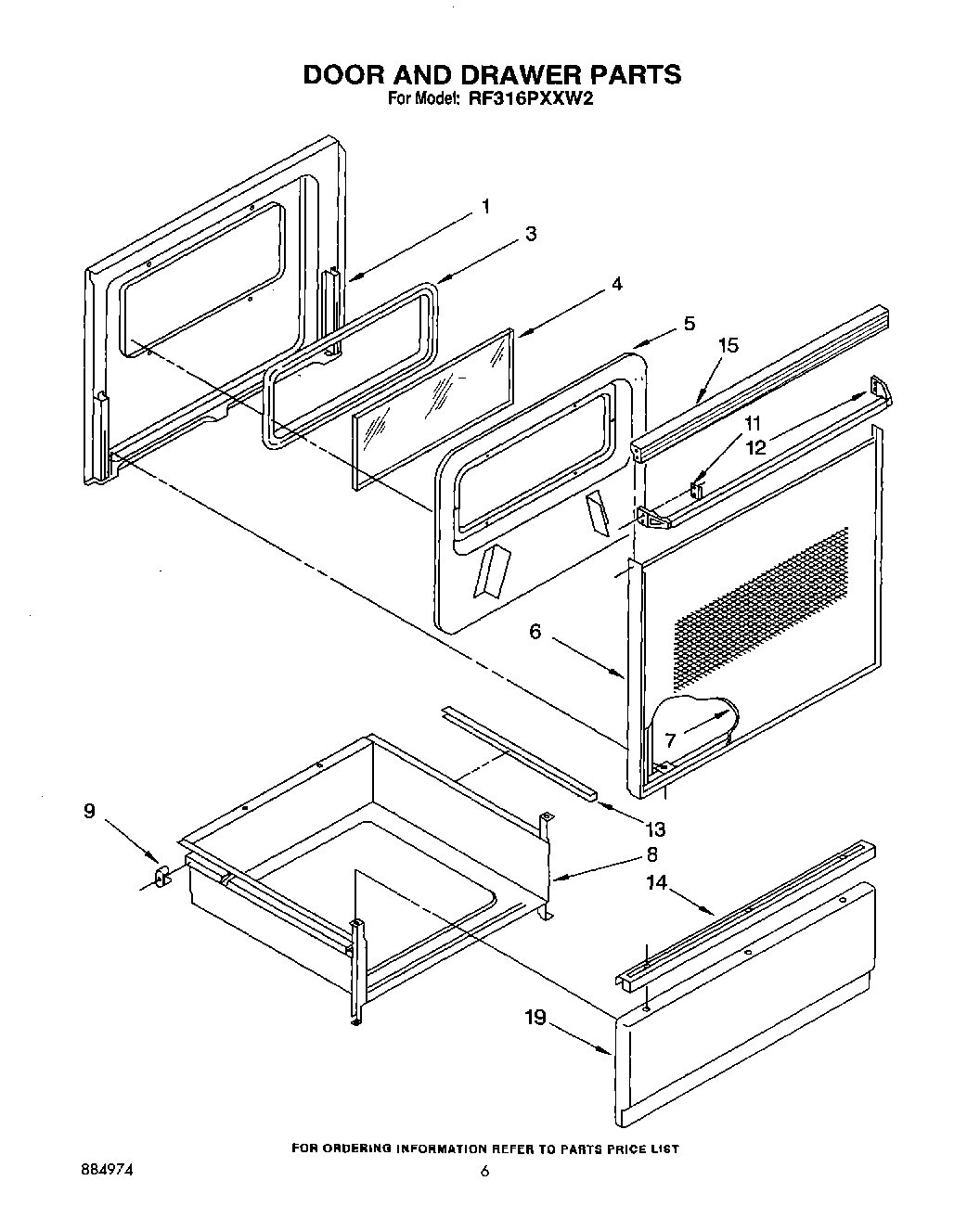

RF316PXXN2 05 – DOOR AND DRAWER

Products

PositionProduct
1Liner, Door
3Seal, Door
4Glass, Inner
5Screw
5Retainer, Insulation
6Frame, Door
6WP355515 Whirlpool Screw
7Glass, Panel (Black Model)
8Drawer, Utility
9Glide, Rear (2)
11Clip, Mtg (2)
12Handle, Oven Door
13Protector, Drawer (2)
14Handle, Drawer
14WP488627 Whirlpool Refrigerator Screw
15Back Splash (Screw (4) 10AB x 1/2“)
15Top, Door (Black Model)
19Panel Drawer (White)
19Panel, Drawer (Almond)
19Panel Drawer (Black)
