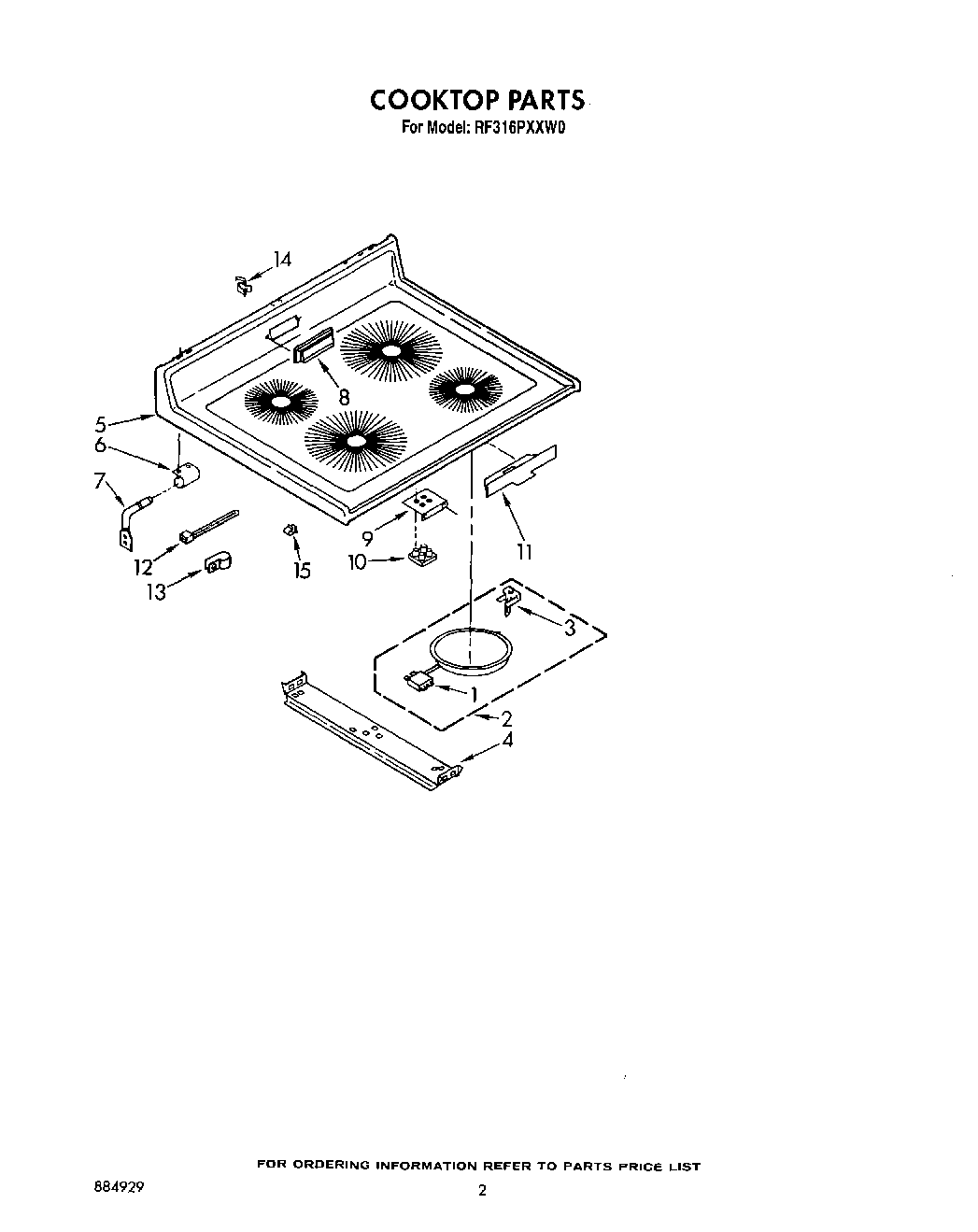

RF316PXXW0 02 – COOKTOP, LIT/OPTIONALadmin2025-04-26T11:07:29+00:00RF316PXXW0 02 – COOKTOP, LIT/OPTIONAL
Products
| Position | Product |
|---|
| Repair Parts List |
| Use & Care Guide |
| Wiring Diagram |
| Instructions, Installation |
| WPL LIT3149507 |
| 1 | Limiter, Temp. (250 mm (LF)) |
| 1 | Limiter Temp. (8`` - RR) |
| 1 | Limiter, Temp. (200 MM - RF) |
| 1 | Limiter, Temp. (180 MM - LR) |
| 2 | Element, Surface (Includes No. 1, No. 3) (180 MM - LR) |
| 2 | Element, Surface (Includes No. 1, No. 3) (230 MM - RR) |
| 2 | Element, Surface (Includes No. 1, No. 3) (200 MM - RF) |
| 2 | WP8185663 Whirlpool Surface Element |
| 3 | WP486754 Whirlpool Compactor Screw |
| 3 | Spring, Locator |
| 4 | Bracket, (2) Element Support |
| 5 | cooktop (almond) |
| 5 | Cooktop (White) |
| 5 | Cooktop (Black) |
| 6 | Bracket, Cooktop (2) |
| 7 | SCREW |
| 7 | Pin, Cooktop (2) |
| 8 | cover, vent (almond) |
| 8 | Cover, Vent (White) |
| 8 | Cover, Vent (Black) |
| 9 | Bracket, Light |
| 10 | Light, Indicator |
| 11 | Shield, Probe |
| 12 | Cable Tie |
| 13 | WP308605 Whirlpool Refrigerator Clamp |
| 13 | Screw (2) |
| 14 | Clip, Vent Cover |
| 15 | Clip |
