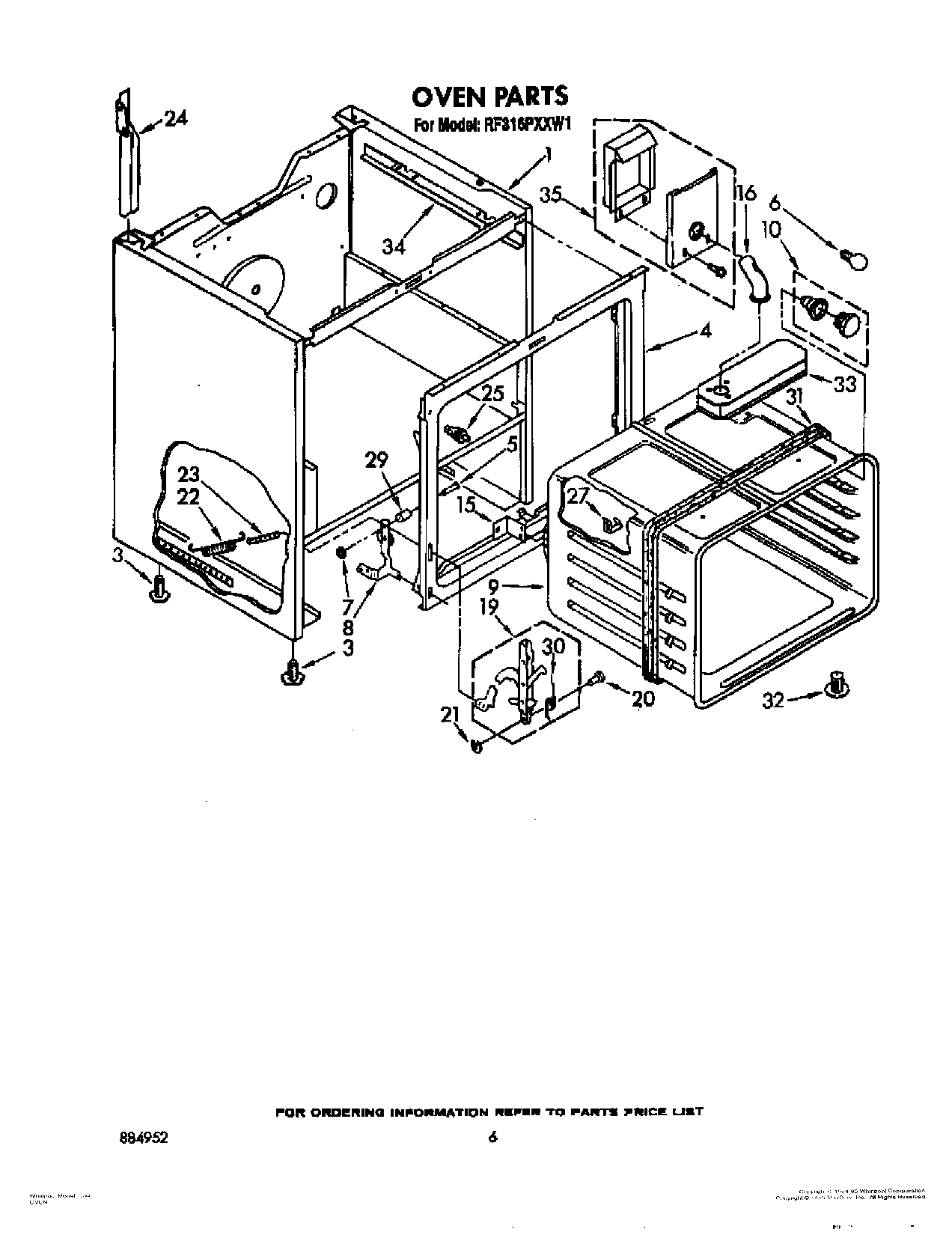

RF316PXXW1 05 – OVEN

Products

Position	Product
1	Main Chassis (Black)
1	Main Chassis (Almond)
1	Main Chassis (White)
3	WPW10058460 Whirlpool Appliance Levelling Leg
4	Frame, Front
5	Pin, Hinge Ear (2)
6	RANGE ONLY 40W 120V APPL BULB
7	Pushnut (2)
8	Hinge (L.H.)
8	Hinge (R.H.)
9	Screw (Top)
9	Oven (30“ Conv)
9	Screw (3)
10	W11594027 Whirlpool Range Oven Light Socket
15	Bracket, Oven (Mounting)
16	Vent, Oven
16	Screw, 10A x 1/2 (2) (Black)
19	Channel, Arm (2)
20	WP307986 Whirlpool Hinge Pin
21	Retainer Ring (2)
22	Spring, Oven Door (2)
23	WP308125 Whirlpool Microwave Range/Cooktop Anchor
24	Wire Cover-Controls (Right)
24	Wire Cover
25	Switch, Door
27	98005642 Whirlpool Clip
29	Snubber, Door (2)
30	Spring, Door Stop
31	Heat Seal
32	Eliminator, Smoke
33	Box, Vent
34	Support, Chassis
34	WP488729 Whirlpool Refrigerator Door Screw
35	Vent, Box
35	WP488627 Whirlpool Refrigerator Screw
35	SCREW
