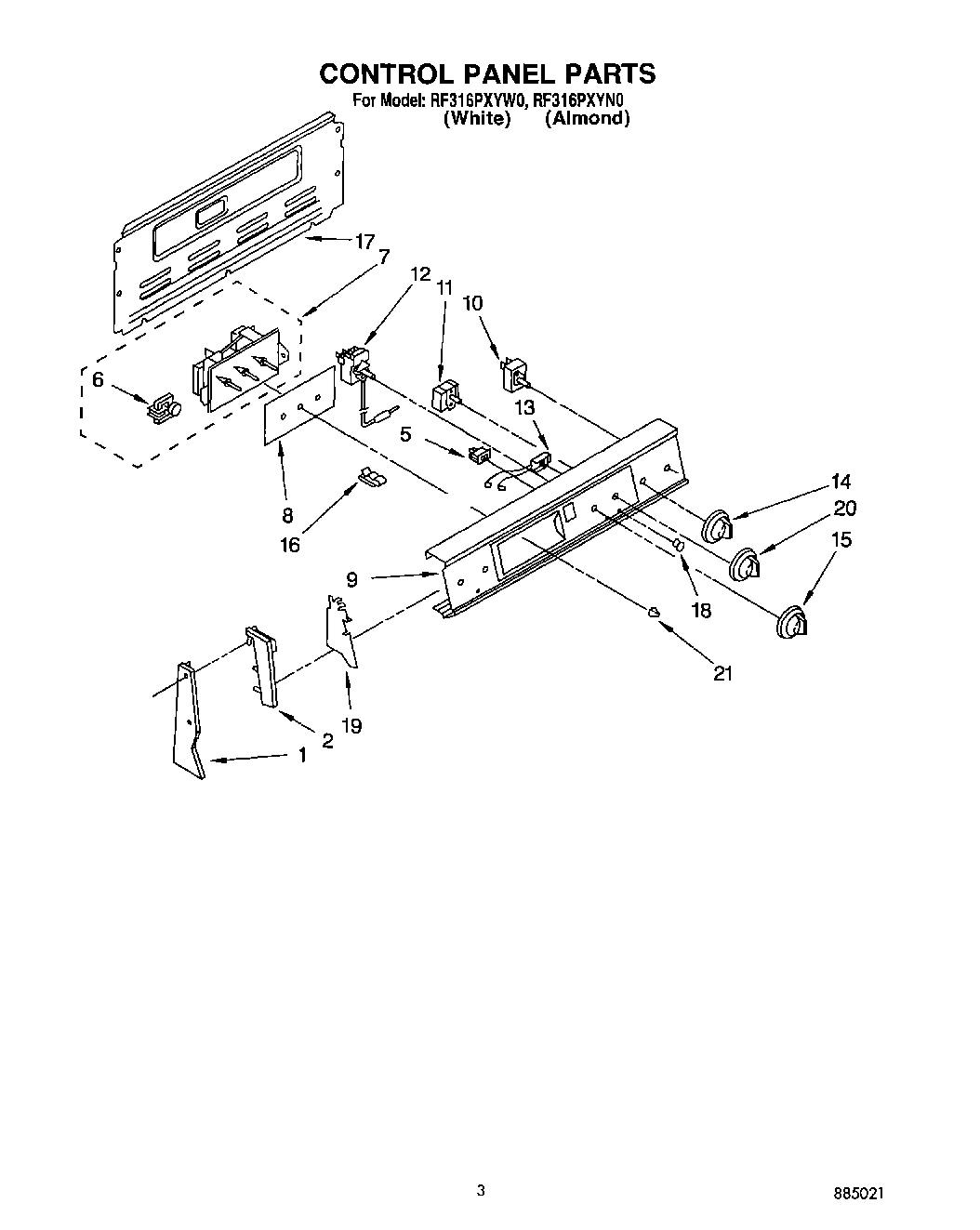

RF316PXYN0 03 – CONTROL PANEL

RF316PXYN0 03 – CONTROL PANEL

Written by

in

RF316PXYN0 03 – CONTROL PANEL

Products

PositionProduct
1Screw 10-32×7/16“
1Screw 10-32×1“
2End Cap, R.H. (White/Almond/Gold)
2Screw,
2End Cap, R.H. (White/Almond/Gold)
5WP4314961 Whirlpool Lite Switch
6Motor, Timer
7Timer, Control
8Glass, Timer
9Panel, Control
9Washer
10WP3148955 Whirlpool Infinite Switch
10WP3148952 Whirlpool Oven Infinite Switch
10WP486579 Whirlpool Air Conditioner Screw
11Switch, Selector (4 Position)
12WP313808 Whirlpool Screw
12Thermostat, Oven
13Light, Indicator (Includes No. 12) (Surface Unit On)
13Light, Indicator (250V)
14Knob, (4) Infinite Switch (White/Almond/Gold)
15Knob, Thermostat
16Clip, Tube
17Harness-Conduit Asm.
17SCREW
18Lens, Amber
19WP965173 Whirlpool Dishwasher Screw
19Shield (2)
20Knob, Selector
21WP3169181 Whirlpool Knob
