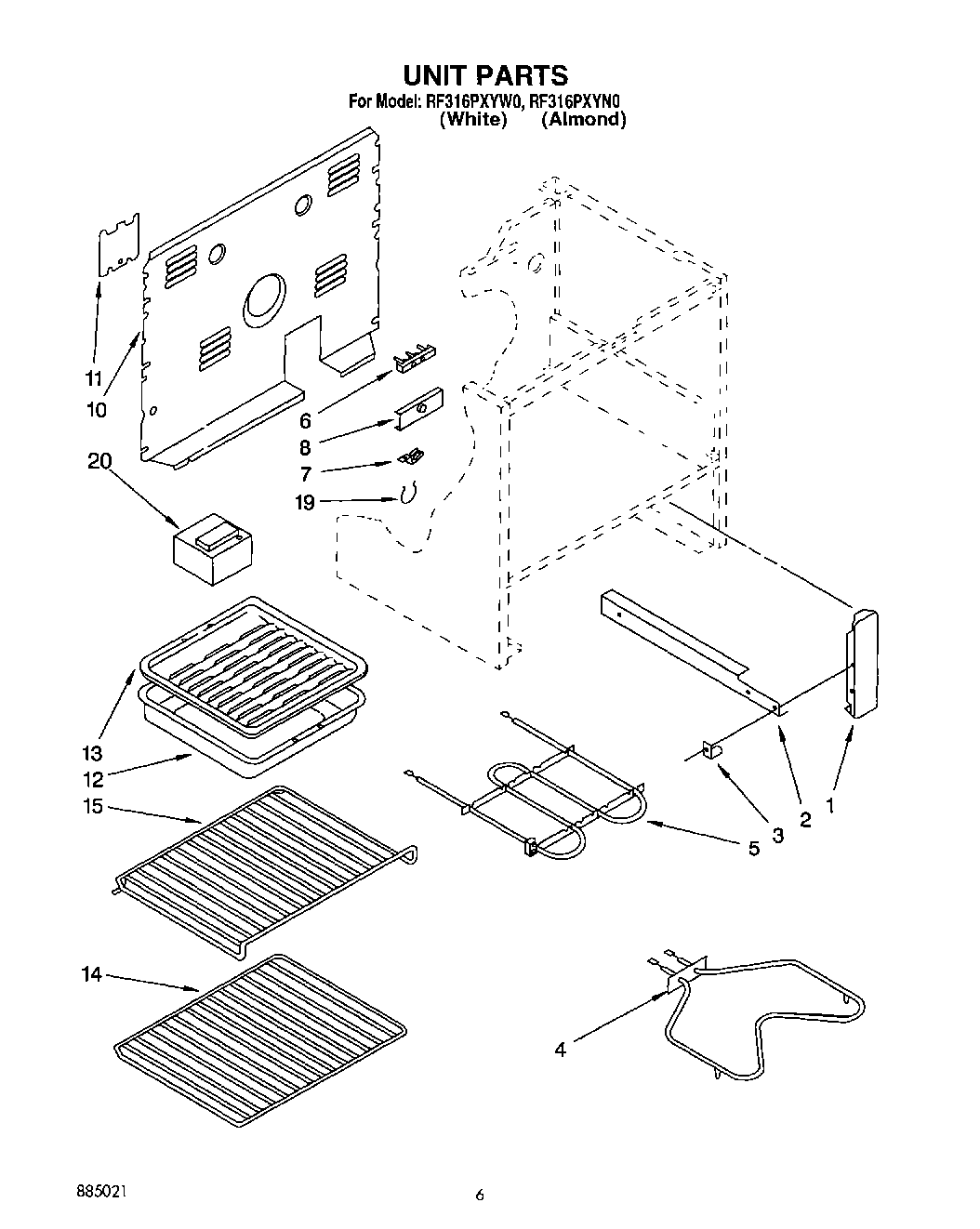

RF316PXYN0 05 – UNIT, OPTIONAL

Products

Position	Product
	WPL LIT677973
1	Bracket, Mounting (2)
2	Screw, 10A x 1/2 (2) (Black)
2	Rail R.H. (Includes Illus. 3)
2	Rail L.H. (Includes Illus. 3)
3	Glide, Front (2)
4	ELMNT-BAKE
5	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
5	Screw (2)
6	WP112432 Whirlpool Nut Assembly
6	WP8203546 Whirlpool Terminal Block
6	Screw, (2) 10-16 x 1
7	Clip, Ground Wire
7	WPL 308498
8	Bracket, Service
10	Cover, Rear
11	SCREW
11	Cover, Service
13	4396923 Whirlpool Broil Pan Set Gray Porcelain
14	WPL 308173
15	WPL 308172
19	16515 Whirlpool Clip
20	350956 Whirlpool Spray Assembly
20	8212471 Whirlpool Oven Paint
20	Leveler (Thinner) (2oz.)
20	Golden Harvest (Uncut)
20	Toast
20	Paint, Spray (13 Oz.) (Platinum)
20	1
20	Wire (14 Ga. 200 c Brown)
20	18 Ga. 80~c Rating (Red)
20	Wire (12 Ga. 150 c Black)
20	Grease
20	Golden Harvest
20	8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
20	Block, Balance
20	72017 Whirlpool Appliance Touch-Up Paint White
20	799344 Whirlpool Refrigerator Paint
20	WP72107 Whirlpool Touchup
20	Almond (Uncut)
20	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
20	72113 Whirlpool Touch-Up Paint
20	350930 Whirlpool White Spray Paint
20	340184 Whirlpool Screw
20	Wire (14 Ga. 150 c Yellow)
20	Enamal, Toast (1 Qt. Uncut)
20	Paint, Spray 13 Oz. (Avocado)
20	paint, spray 13 oz. (coffee)
20	Paint, Touch-Up 1/2 Oz. (Coffee)
20	72109 Whirlpool Dacor Avocado Touch-Up Paint
20	285006 Whirlpool Spray
20	WPW10208653 Whirlpool Insulation
20	Wire, 25` Roll (Red 14 Ga.)
20	Wire, 25` Roll (Black 14 Ga.)
20	WA906B Whirlpool Cooktop Glass Scraper
20	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
20	WPL 799832
20	511873 Whirlpool Refrigerator Paint
20	Wire (14 Ga. 150 c Orange)
20	Wire, 25“ Roll (White 14 GA.)
20	Wire (14 Ga. 150 c Green)
20	Wire (14 Ga. 150 c Brown)
20	Wire (14 Ga. 150 c Blue)
20	242831 Whirlpool Oven Wire
20	Platinum (Uncut)
20	WPL 72112
20	350942 Whirlpool Spray Paint
20	FOIL, ALUMINUM OVEN (18“ X 25 )
