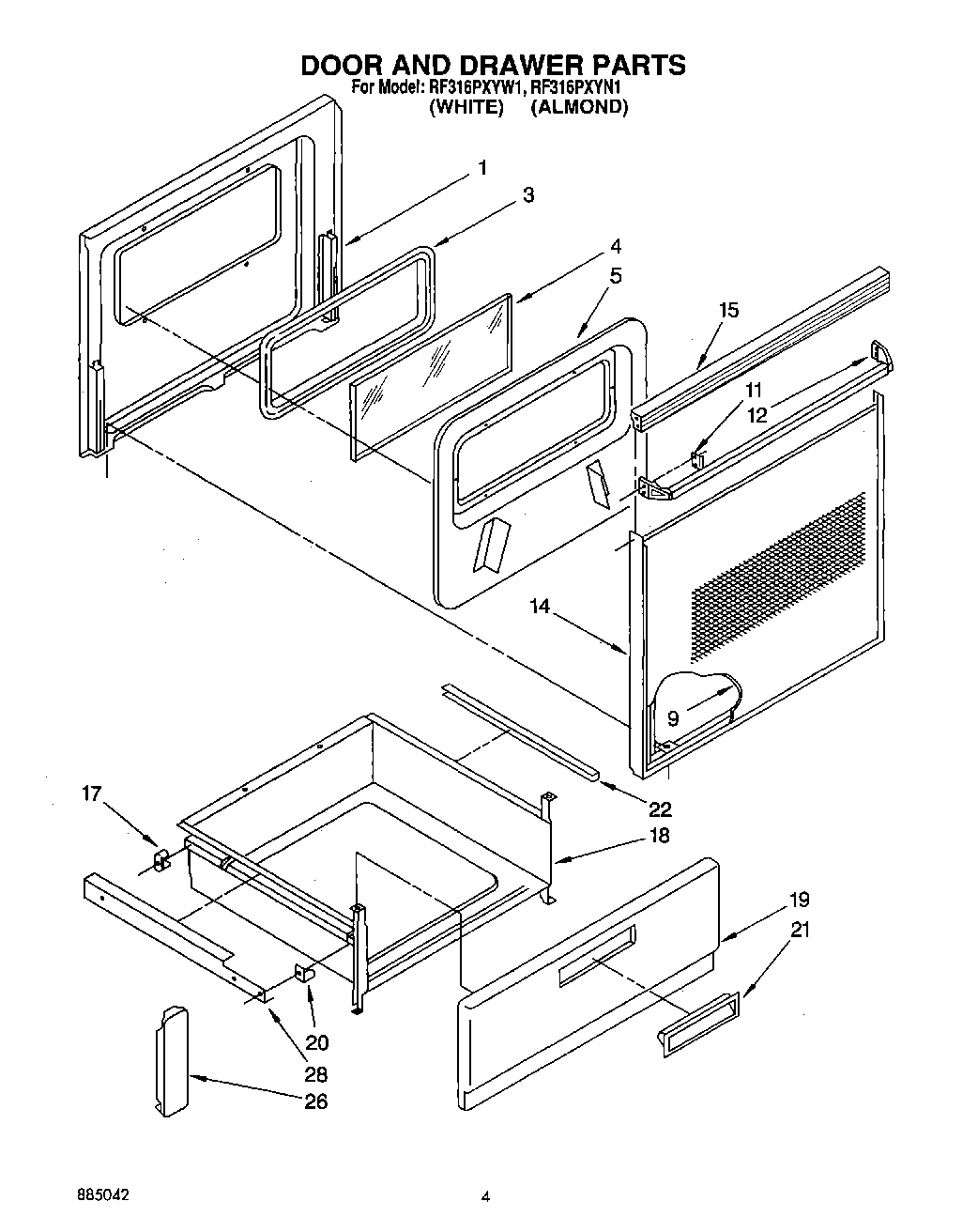

RF316PXYN1 03 – DOOR AND DRAWER

Products

Position	Product
1	Liner, Door
3	Seal, Door
4	Glass, Clear
5	Retainer, Insulation
5	Screw
9	Glass, Panel (Black Model)
11	Clip, Mtg (2)
12	Handle, Oven Door
14	Frame, Door
15	WP355515 Whirlpool Screw
15	Top, Door (Black Model)
17	WP308685 Whirlpool Microwave Screw
17	Glide, Rear (2)
18	Drawer, Utility
19	Panel, Drawer (Almond)
19	Panel, Drawer (White)
19	WP488627 Whirlpool Refrigerator Screw
20	Glide, Front (2)
21	Handle, Snap-In (White)
21	Handle, Snap-In (Almond)
22	Protector, Drawer (2)
26	Bracket, Mounting (2)
28	Rail R.H. (Includes Illus. 3)
28	Rail L.H. (Includes Illus. 3)
28	Screw, 10A x 1/2 (2) (Black)
