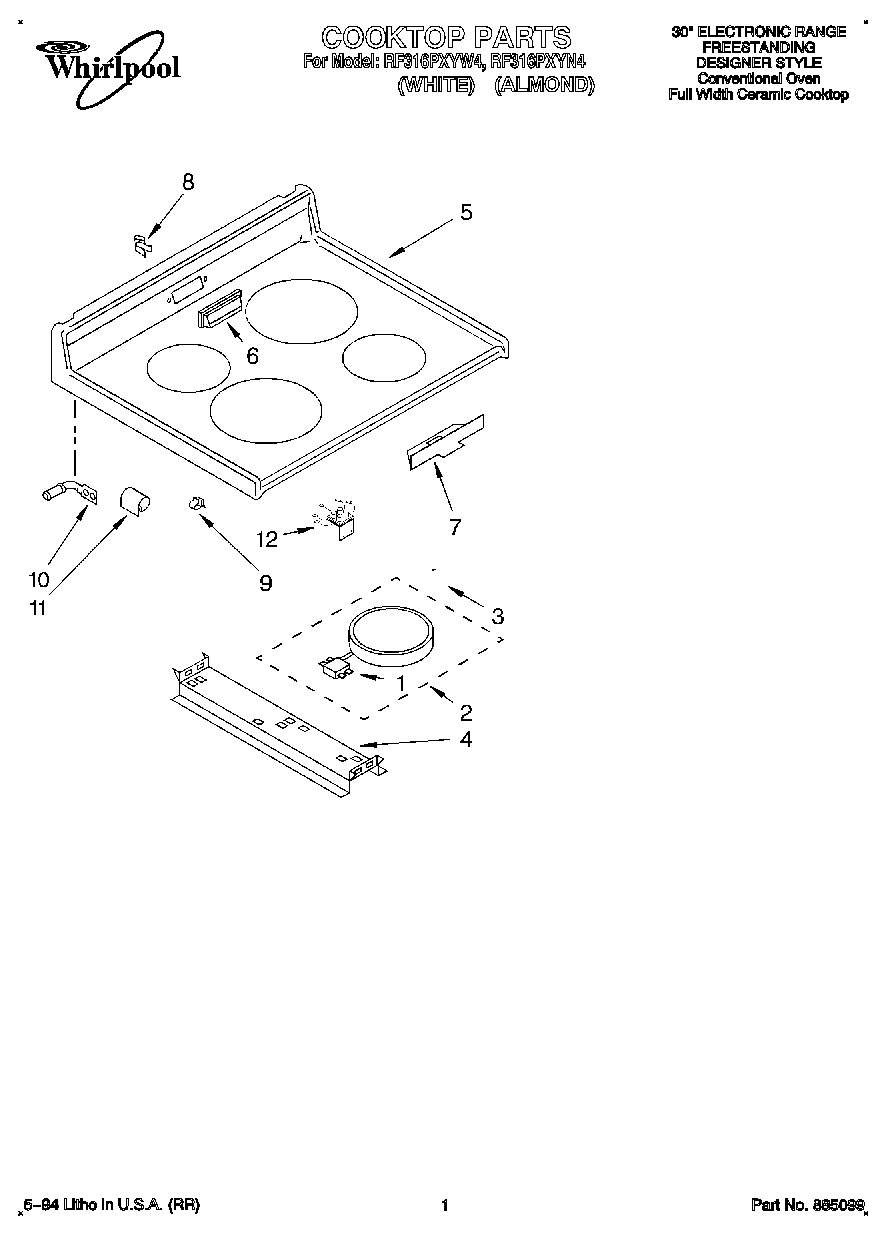

RF316PXYN4 01 – COOKTOP, LITERATURE

RF316PXYN4 01 – COOKTOP, LITERATURE

Written by

in

RF316PXYN4 01 – COOKTOP, LITERATURE

Products

PositionProduct
WPL LIT677973
WPL LIT3150400
Instructions, Installation
Use and Care Guide
Wiring Diagram
1Limiter Temp. (7“ – RF)
1Limiter, Temp. (6“ L.R.)
1Limiter, Temperature (Use W/3183648 Element)
1Limiter, Temperature (Use W/3183649 Element)
2Element, Surface (1400W Left Rear)
2WP8185663 Whirlpool Surface Element
2Element, Surface (2100W Right Rear)
2Element, Surface (1700W Right Front)
3WP486754 Whirlpool Compactor Screw
3Spring, Locator
4Bracket, (2) Element Support
5Cooktop (Almond)
5Cooktop (White)
6Cover, Vent (White)
6cover, vent (almond)
7Shield, Probe
8Clip, Vent Cover
9Clip
10Pin, Cooktop (2)
11Bracket, Cooktop (2)
12Screw (2)
12Hot Light Assembly
