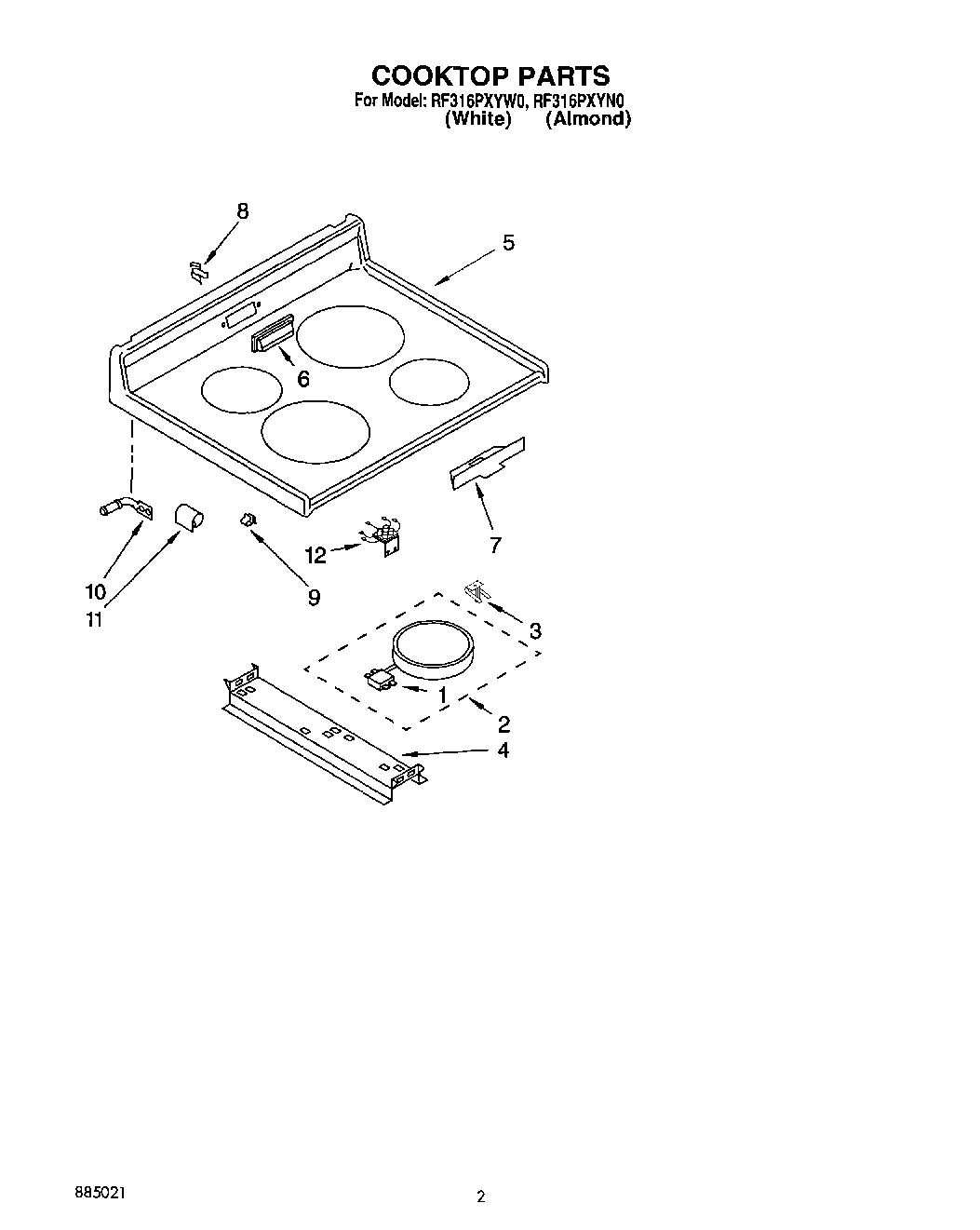

RF316PXYW0 02 – COOKTOP, LIT/OPTIONALadmin2025-04-26T11:09:52+00:00RF316PXYW0 02 – COOKTOP, LIT/OPTIONAL
Products
| Position | Product |
|---|
| Repair Parts List |
| Wiring Diagram |
| Use and Care Guide |
| Video, Ceran Cooktop |
| WPL LIT3147395 |
| 1 | Limiter, Temperature (Use W/3183648 Element) |
| 1 | Limiter, Temperature (Use W/3183649 Element) |
| 1 | Limiter Temp. (7`` - RF) |
| 1 | Limiter, Temp. (6`` L.R.) |
| 2 | Element, Surface (2100W Right Rear) |
| 2 | Element, Surface (1700W Right Front) |
| 2 | Element, Surface (1400W Left Rear) |
| 2 | WP8185663 Whirlpool Surface Element |
| 3 | Spring, Locator |
| 3 | WP486754 Whirlpool Compactor Screw |
| 4 | Bracket, (2) Element Support |
| 5 | Cooktop (Almond) |
| 5 | Cooktop (White) |
| 6 | cover, vent (almond) |
| 6 | Cover, Vent (White) |
| 7 | Shield, Probe |
| 8 | Clip, Vent Cover |
| 9 | Clip |
| 10 | Pin, Cooktop (2) |
| 11 | Bracket, Cooktop (2) |
| 12 | Screw (2) |
| 12 | Hot Light Assembly |
