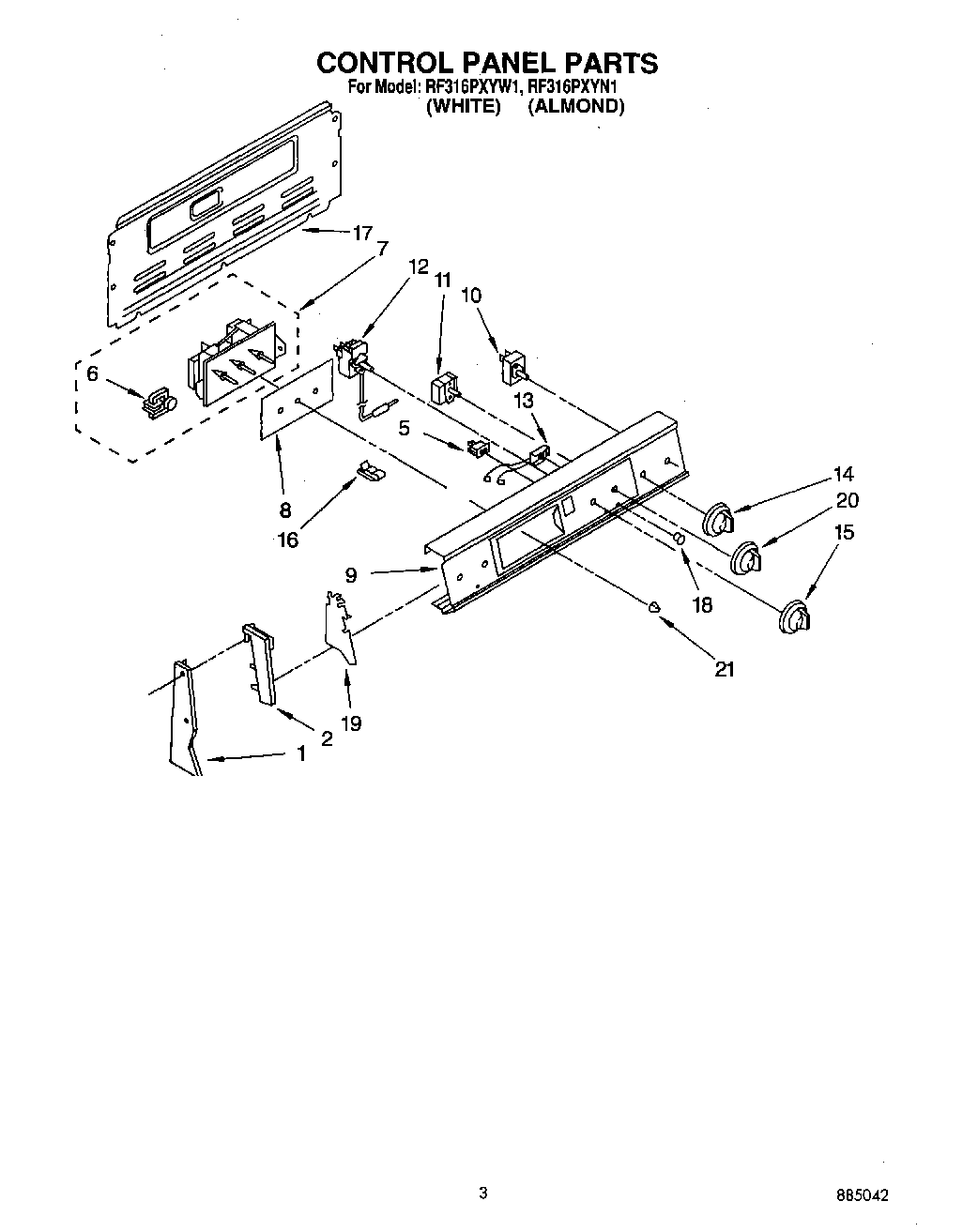

RF316PXYW1 02 – CONTROL PANEL

Products

Position	Product
1	Screw 10-32x7/16``
1	Screw 10-32x1``
2	End Cap, R.H. (White/Almond/Gold)
2	Screw,
2	End Cap, R.H. (White/Almond/Gold)
5	WP4314961 Whirlpool Lite Switch
6	Motor, Timer
7	Timer, Control
8	Glass, Timer
9	Panel, Control
9	Washer
10	WP3148955 Whirlpool Infinite Switch
10	WP3148952 Whirlpool Oven Infinite Switch
10	WP486579 Whirlpool Air Conditioner Screw
11	Switch, Selector (4 Position)
12	WP313808 Whirlpool Screw
12	Thermostat, Oven
13	Light, Indicator (Includes No. 12) (Surface Unit On)
13	Light, Indicator (250V)
14	Knob, (4) Infinite Switch (White/Almond/Gold)
15	Knob, Thermostat
16	Clip, Tube
17	Harness-Conduit Asm.
17	SCREW
18	Lens, Amber
19	WP965173 Whirlpool Dishwasher Screw
19	Shield (2)
20	Knob, Selector
21	WP3169181 Whirlpool Knob
