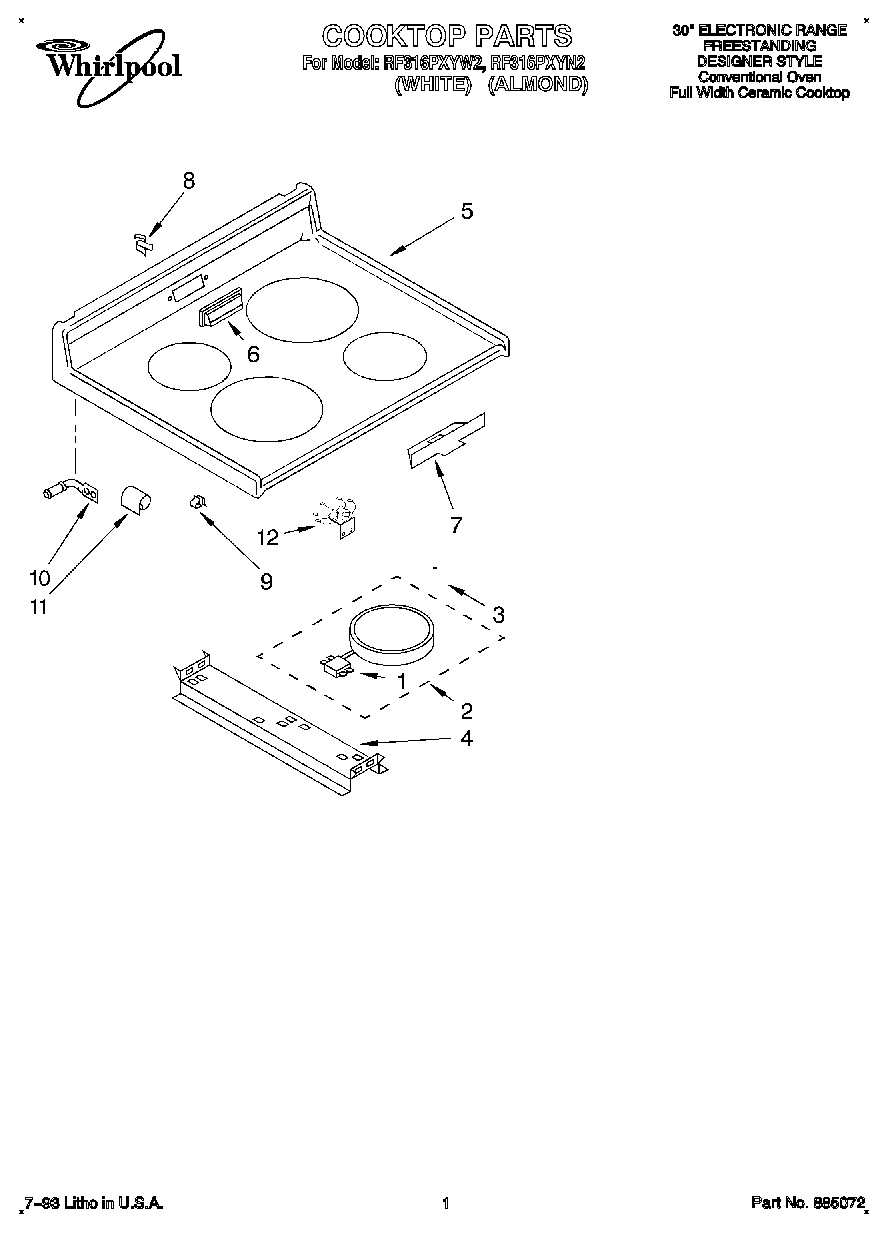

RF316PXYW2 01 – COOKTOP, LITERATURE

Products

Position	Product
	Use and Care Guide
	WPL LIT3150400
	Instructions, Installation
	Video, Ceran Cooktop
	Wiring Diagram
1	Limiter Temp. (7“ – RF)
1	Limiter, Temp. (6“ L.R.)
1	Limiter, Temperature (Use W/3183648 Element)
1	Limiter, Temperature (Use W/3183649 Element)
2	Element, Surface (2100W Right Rear)
2	Element, Surface (1700W Right Front)
2	Element, Surface (1400W Left Rear)
2	WP8185663 Whirlpool Surface Element
3	WP486754 Whirlpool Compactor Screw
3	Spring, Locator
4	Bracket, (2) Element Support
5	Cooktop (Almond)
5	Cooktop (White)
6	Cover, Vent (White)
6	cover, vent (almond)
7	Shield, Probe
8	Clip, Vent Cover
9	Clip
10	Pin, Cooktop (2)
11	Bracket, Cooktop (2)
12	Screw (2)
12	Hot Light Assembly
