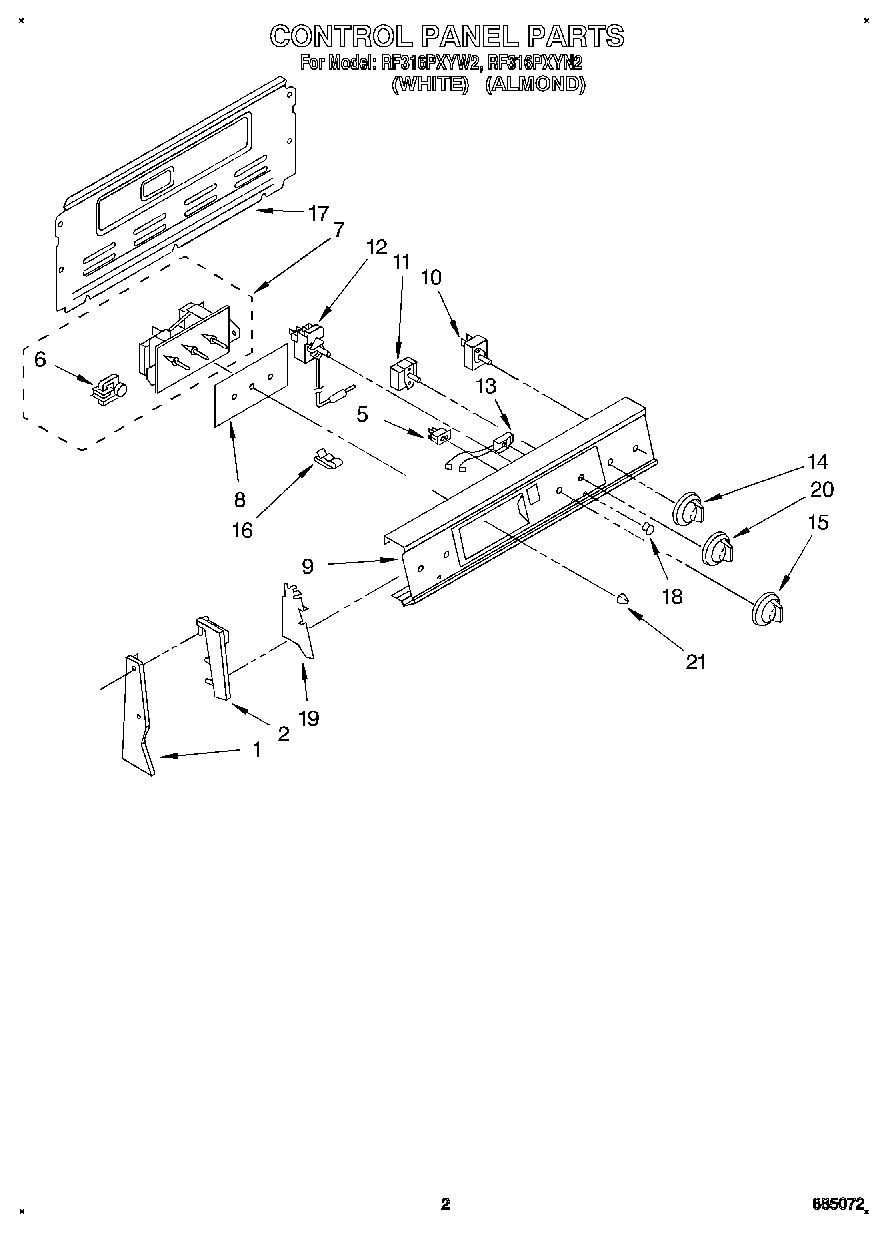

RF316PXYW2 02 – CONTROL PANEL

Products

Position	Product
1	Screw 10-32x7/16``
1	Screw 10-32x1``
2	End Cap, R.H. (White/Almond/Gold)
2	Screw,
2	End Cap, R.H. (White/Almond/Gold)
5	WP4314961 Whirlpool Lite Switch
6	Motor, Timer
7	Timer, Control
8	Glass, Timer
9	Washer
9	Panel, Control
10	Screw, 8-32 x 3/16 (2)
10	WP3148952 Whirlpool Oven Infinite Switch
10	WP3148955 Whirlpool Infinite Switch
11	Switch, Selector (4 Position)
12	Thermostat, Oven
12	WP313808 Whirlpool Screw
13	Light, Indicator (250V)
13	Light, Indicator (Includes No. 12) (Surface Unit On)
14	Knob, (4) Infinite Switch (White/Almond/Gold)
15	Knob, Thermostat
16	Clip, Tube
17	SCREW
17	Rear Cover Contr
18	Lens, Amber
19	Shield (2)
19	WP965173 Whirlpool Dishwasher Screw
20	Knob, Selector
21	WP3169181 Whirlpool Knob
