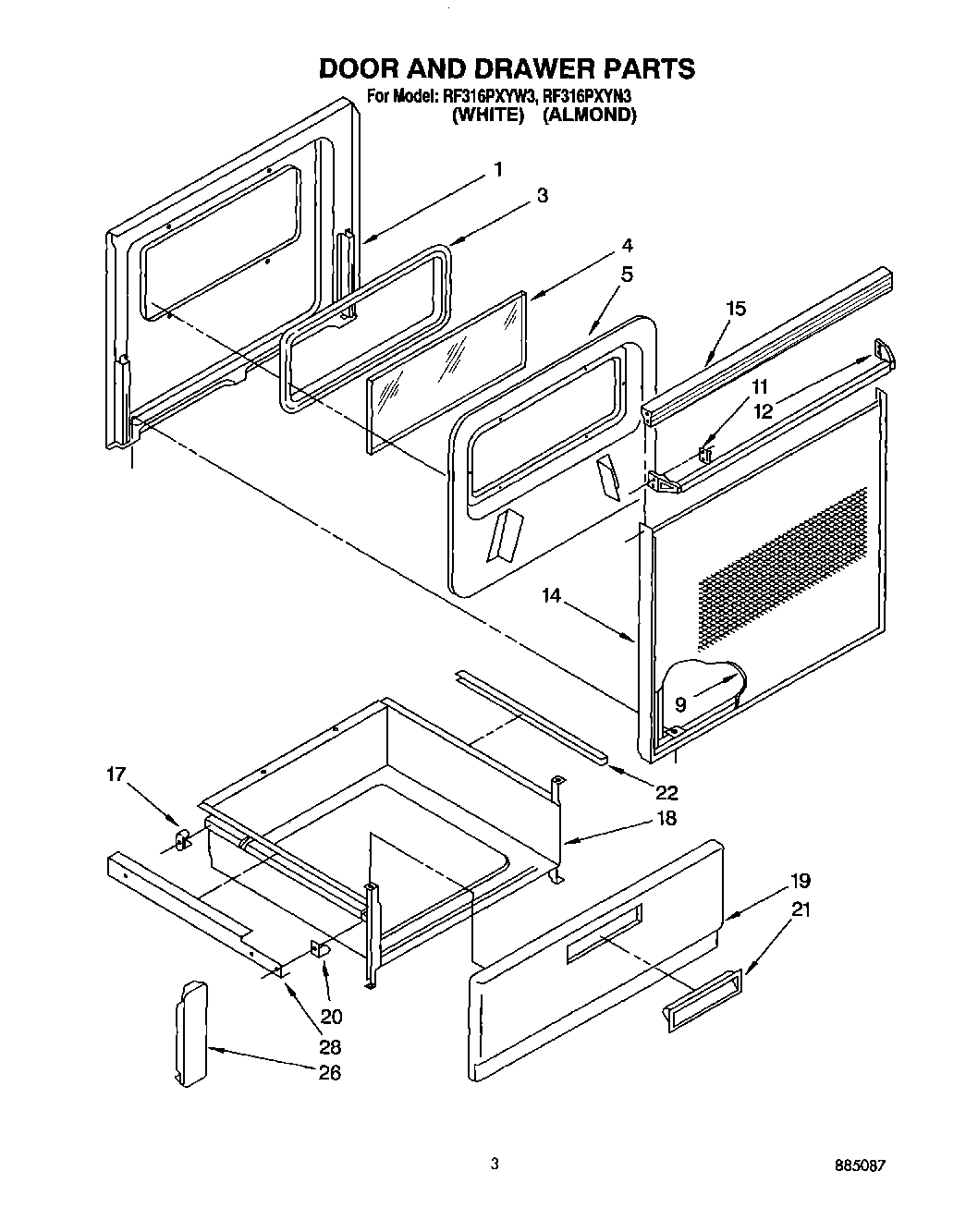

RF316PXYW3 03 – DOOR AND DRAWER

Products

PositionProduct
1Liner, Door
3Seal, Door
4Glass, Clear
5Retainer, Insulation
5Screw
9Glass, Panel (Black Model)
11Clip, Mtg (2)
12Handle, Oven Door
14Frame, Door
15WP355515 Whirlpool Screw
15Top, Door (Black Model)
17WP308685 Whirlpool Microwave Screw
17Glide, Rear (2)
18Drawer, Utility
19Panel, Drawer (Almond)
19Panel, Drawer (White)
19WP488627 Whirlpool Refrigerator Screw
20Glide, Front (2)
21Handle, Snap-In (White)
21Handle, Snap-In (Almond)
22Protector, Drawer (2)
26Bracket, Mounting (2)
28Rail R.H. (Includes Illus. 3)
28Rail L.H. (Includes Illus. 3)
28Screw, 10A x 1/2 (2) (Black)
